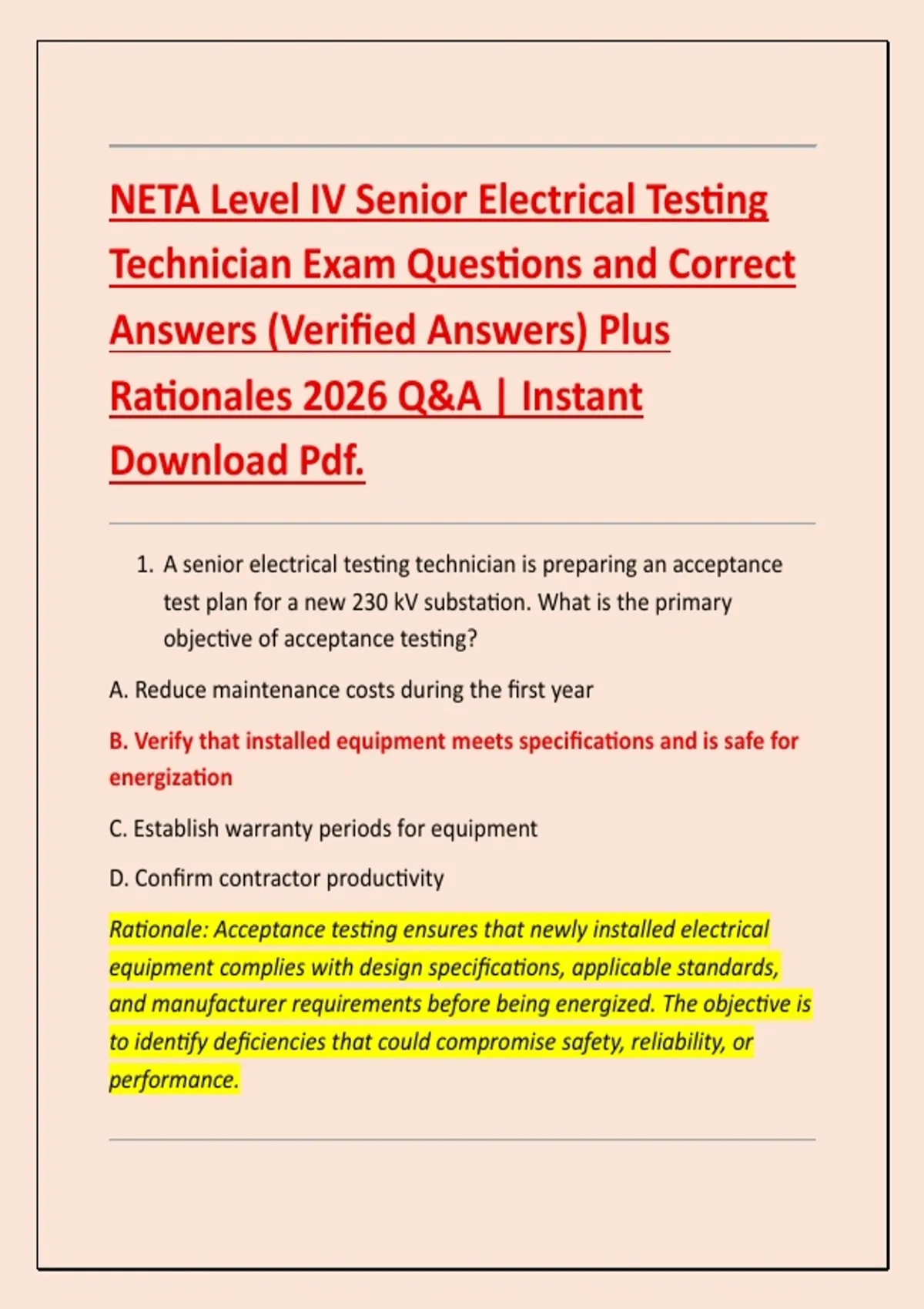

NETA Level IV Senior Electrical Testing
Technician Exam Questions and Correct
Answers (Verified Answers) Plus
Rationales 2026 Q&A | Instant
Download Pdf.
1. A senior electrical testing technician is preparing an acceptance
test plan for a new 230 kV substation. What is the primary
objective of acceptance testing?
A. Reduce maintenance costs during the first year
B. Verify that installed equipment meets specifications and is safe for
energization
C. Establish warranty periods for equipment
D. Confirm contractor productivity
Rationale: Acceptance testing ensures that newly installed electrical
equipment complies with design specifications, applicable standards,
and manufacturer requirements before being energized. The objective is
to identify deficiencies that could compromise safety, reliability, or
performance.
, 2. During insulation resistance testing of a power transformer, which
factor has the greatest influence on measured insulation
resistance values?
A. Frequency of the test instrument
B. Transformer impedance
C. Insulation temperature
D. Oil color
Rationale: Insulation resistance decreases significantly as temperature
increases. Measured values should always be corrected to a standard
reference temperature when comparing historical results to accurately
assess insulation condition.
3. Which test is most effective for detecting moisture contamination
in transformer insulation?
A. Turns ratio test
B. Winding resistance test
C. Power factor (dissipation factor/tan δ) test
D. Polarity test
Rationale: Power factor testing measures dielectric losses within
insulation systems. Moisture significantly increases dielectric losses,
making this test highly effective for identifying contaminated insulation.
, 4. During circuit breaker maintenance, an increase in contact
resistance generally indicates:
A. Improved contact pressure
B. Better lubrication
C. Deterioration of contact surfaces or poor contact pressure
D. Excessive interrupting capacity
Rationale: High contact resistance usually results from worn contacts,
oxidation, contamination, or inadequate contact pressure. Excessive
resistance increases heating and can eventually lead to equipment
failure.
5. A transformer winding resistance test is primarily performed to
detect:
A. Core saturation
B. Oil contamination
C. Loose connections, damaged conductors, or tap changer defects
D. Incorrect voltage ratio
Rationale: Winding resistance measurements reveal problems such as
loose joints, poor solder connections, damaged windings, or defective
tap changer contacts that create abnormal resistance values.
6. Which instrument is commonly used for sweep frequency
response analysis (SFRA)?
, A. Clamp-on ammeter
B. Power quality analyzer
C. Frequency response analyzer
D. Earth resistance tester
Rationale: SFRA requires specialized equipment capable of injecting a
wide frequency spectrum into transformer windings and measuring the
resulting frequency response to detect winding deformation.
7. A protective relay that operates faster than required without
proper coordination may cause:
A. Improved system efficiency
B. Lower arc flash energy
C. Unnecessary outages due to loss of selectivity
D. Increased transformer efficiency
Rationale: Proper relay coordination ensures only the faulted portion of
the system is isolated. Poor coordination can unnecessarily disconnect
healthy equipment, reducing system reliability.
8. What is the principal advantage of using digital protective relays
over electromechanical relays?
A. They require no maintenance.
B. They eliminate the need for CTs.
