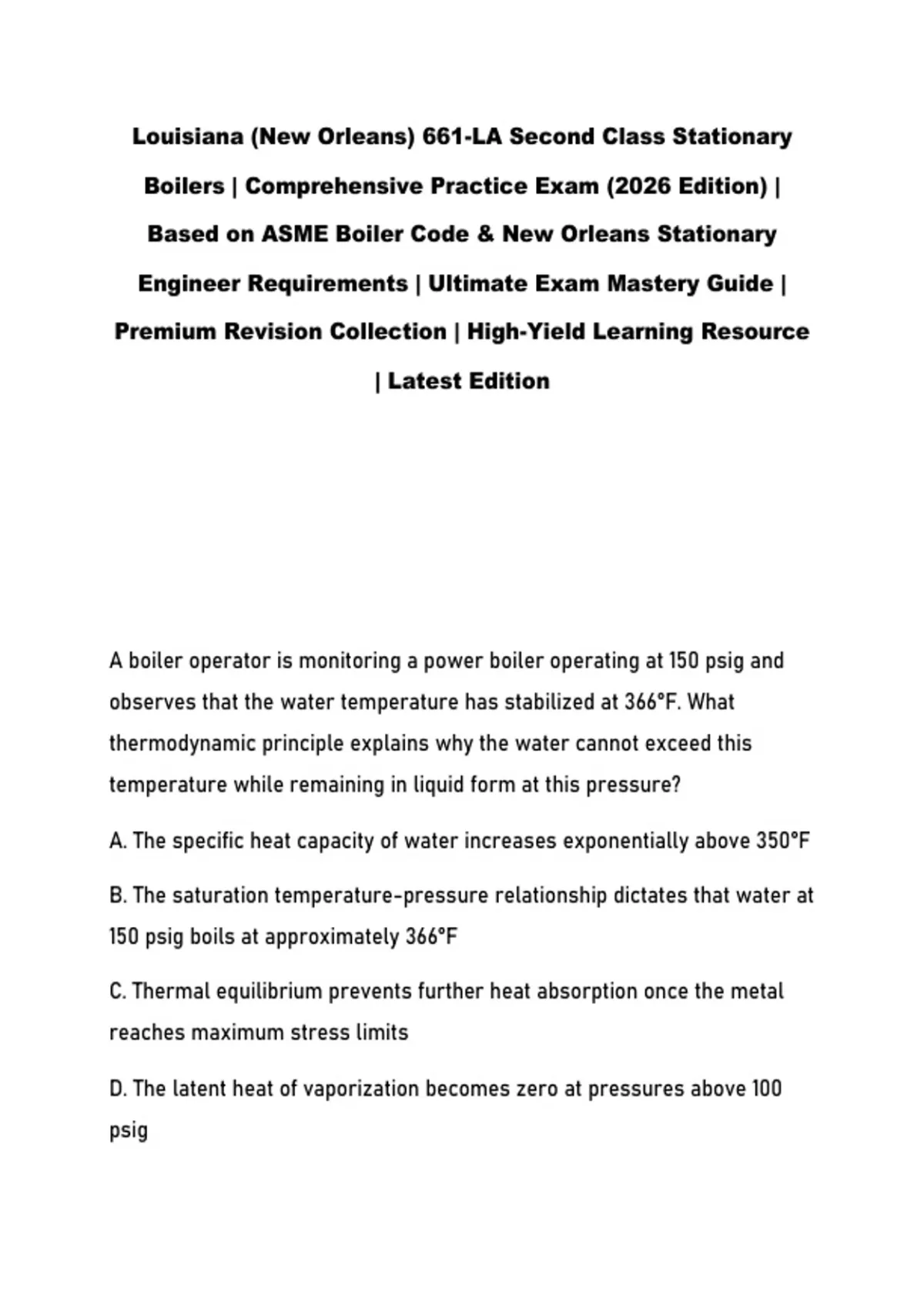

Louisiana (New Orleans) 661-LA Second Class Stationary
Boilers | Comprehensive Practice Exam (2026 Edition) |
Based on ASME Boiler Code & New Orleans Stationary
Engineer Requirements | Ultimate Exam Mastery Guide |
Premium Revision Collection | High-Yield Learning Resource
| Latest Edition
A boiler operator is monitoring a power boiler operating at 150 psig and
observes that the water temperature has stabilized at 366°F. What
thermodynamic principle explains why the water cannot exceed this
temperature while remaining in liquid form at this pressure?
A. The specific heat capacity of water increases exponentially above 350°F
B. The saturation temperature-pressure relationship dictates that water at
150 psig boils at approximately 366°F
C. Thermal equilibrium prevents further heat absorption once the metal
reaches maximum stress limits
D. The latent heat of vaporization becomes zero at pressures above 100
psig
,✓Answer: B ✓
When calculating the total heat required to convert 1 pound of feedwater at
200°F to saturated steam at 150 psig, which component represents the
largest energy requirement?
A. Sensible heat to raise water from 200°F to saturation temperature
B. Latent heat of vaporization at the operating pressure
C. Heat loss through radiation from the boiler shell
D. Energy required to overcome friction in the economizer tubes
✓Answer: B ✓
In a water-tube boiler design, what is the primary reason for using bent-
tube configurations rather than straight-tube designs in modern high-
pressure applications?
A. Bent tubes reduce manufacturing costs by eliminating complex tube
sheet drilling
B. Bent tubes provide better thermal expansion accommodation and
improved circulation patterns
C. Straight tubes cannot withstand pressures above 100 psig according to
ASME Section I
D. Bent tubes require less frequent cleaning and maintenance than
straight-tube arrangements
✓Answer: B ✓
,A stationary engineer observes that during normal operation, the boiler
drum water level fluctuates between 2 inches above and 2 inches below
the normal operating level. What is the most likely cause of this
phenomenon?
A. Excessive dissolved oxygen causing rapid corrosion of the drum
internals
B. Swell and shrink effects caused by varying steam demand and firing
rates
C. Malfunctioning feedwater regulator allowing uncontrolled water flow
D. Scale buildup on the drum walls reducing effective volume capacity
✓Answer: B ✓
Which statement accurately describes the relationship between boiler
horsepower and actual steam production capacity?
A. One boiler horsepower equals the evaporation of 34.5 pounds of water
per hour from and at 212°F
B. One boiler horsepower equals exactly 100 pounds of steam produced
per hour at any pressure
C. Boiler horsepower is calculated by dividing the heating surface area by
10 square feet
D. One boiler horsepower represents 33,475 BTU/hr regardless of
operating conditions
✓Answer: A ✓
, During a routine inspection, you discover that a fire-tube boiler has
developed significant scale deposits on the fireside surfaces of several
tubes. What is the most serious consequence of this condition?
A. Reduced heat transfer efficiency leading to higher fuel consumption
B. Localized overheating of tube metal potentially causing tube failure
C. Increased draft resistance requiring higher fan speeds
D. Accelerated corrosion of the tube sheets due to chemical reactions with
scale
✓Answer: B ✓
What is the primary function of stays and braces in fire-tube boiler
construction, particularly in the flat surfaces of the heads and wrapper
sheets?
A. To provide attachment points for insulation and lagging materials
B. To resist internal pressure forces acting on flat or curved surfaces and
prevent deformation
C. To facilitate thermal expansion of the tubes during startup procedures
D. To serve as mounting brackets for safety valves and pressure gauges
✓Answer: B ✓
A boiler operator notices that the stack temperature has gradually
increased from 350°F to 450°F over several weeks while maintaining the
same steam output. What does this trend most likely indicate?
