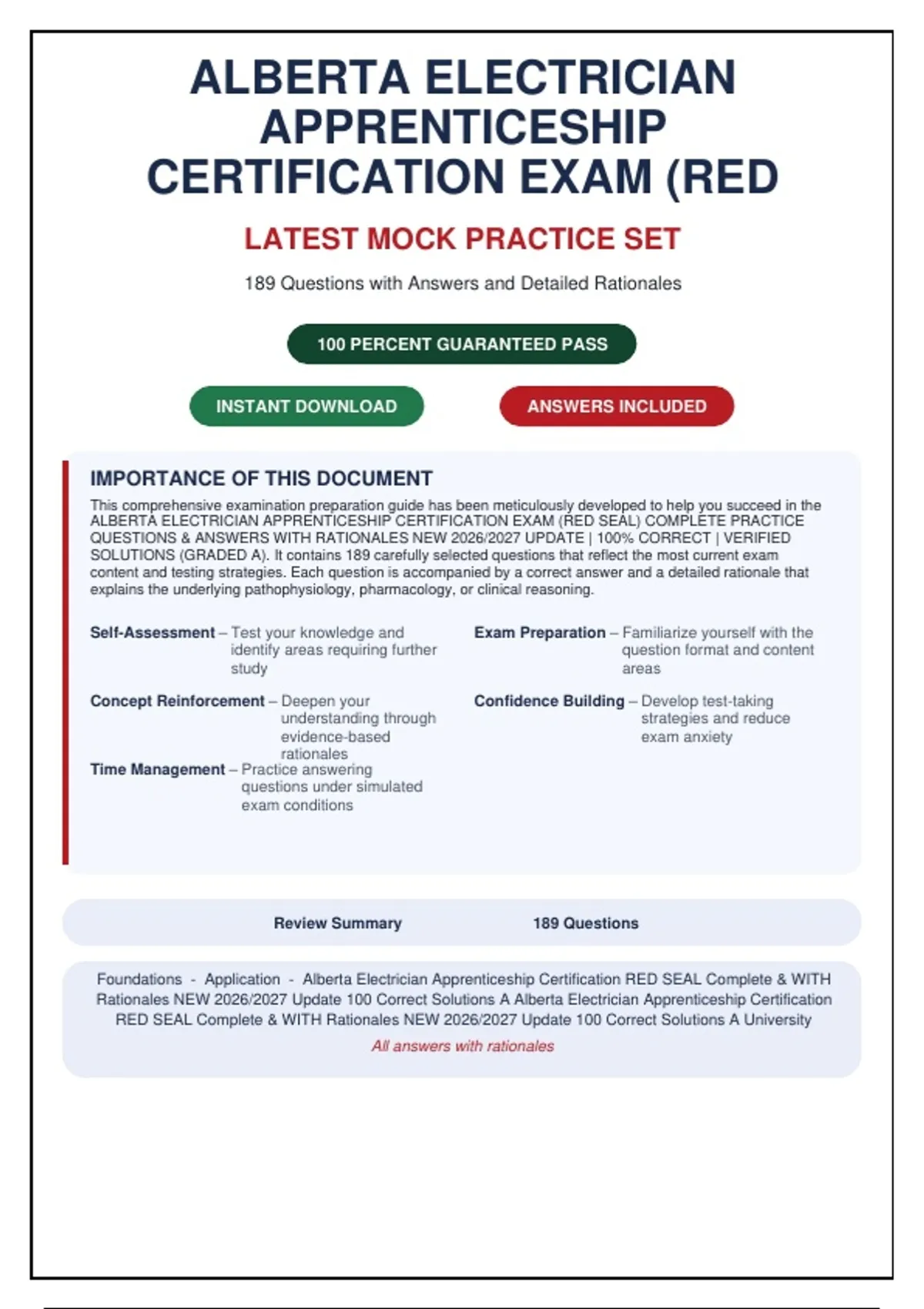

ALBERTA ELECTRICIAN
APPRENTICESHIP
CERTIFICATION EXAM (RED
LATEST MOCK PRACTICE SET
189 Questions with Answers and Detailed Rationales
100 PERCENT GUARANTEED PASS
INSTANT DOWNLOAD ANSWERS INCLUDED
IMPORTANCE OF THIS DOCUMENT
This comprehensive examination preparation guide has been meticulously developed to help you succeed in the
ALBERTA ELECTRICIAN APPRENTICESHIP CERTIFICATION EXAM (RED SEAL) COMPLETE PRACTICE
QUESTIONS & ANSWERS WITH RATIONALES NEW 2026/2027 UPDATE | 100% CORRECT | VERIFIED
SOLUTIONS (GRADED A). It contains 189 carefully selected questions that reflect the most current exam
content and testing strategies. Each question is accompanied by a correct answer and a detailed rationale that
explains the underlying pathophysiology, pharmacology, or clinical reasoning.
Self-Assessment – Test your knowledge and Exam Preparation – Familiarize yourself with the
identify areas requiring further question format and content
study areas
Concept Reinforcement – Deepen your Confidence Building – Develop test-taking
understanding through strategies and reduce
evidence-based exam anxiety
rationales
Time Management – Practice answering
questions under simulated
exam conditions
Review Summary 189 Questions
Foundations - Application - Alberta Electrician Apprenticeship Certification RED SEAL Complete & WITH
Rationales NEW 2026/2027 Update 100 Correct Solutions A Alberta Electrician Apprenticeship Certification
RED SEAL Complete & WITH Rationales NEW 2026/2027 Update 100 Correct Solutions A University
All answers with rationales
,Table of Contents
Section A - Safety AND CODE Section B - Electrical Theory AND
Compliance Calculations
Questions 1 to 48 Questions 49 to 96
Section C - Wiring Methods AND Section D - Branch Circuits AND
Installation Feeders
Questions 97 to 144 Questions 145 to 189
,Section A - Safety AND CODE Compliance
Q1.
In a 480 V three-phase, 4-wire wye system, what is the phase voltage measured
line-to-neutral?
A. 277 V B. 480 V
C. 208 V D. 240 V
Correct: A - 277 V
Rationale:In a wye configuration, line voltage = "3 × phase voltage. Thus, phase voltage =
480 V / 3 277 V. Option B is line voltage, C is common for 208Y/120 systems, D is for delta
systems.
Q2.
A motor draws 15 A at 240 V single-phase with a power factor of 0.8 lagging. What is the
real power consumption?
A. 2880 W B. 3600 W
C. 4500 W D. 2304 W
Correct: A - 2880 W
Rationale:Real power P = V × I × pf = 240 V × 15 A × 0.8 = 2880 W. Option B ignores pf, C
uses wrong formula, D miscalculates product.
Q3.
When bonding a gas piping system in a commercial building, which of the following is the
minimum size bonding conductor required per the Canadian Electrical Code?
A. 6 AWG copper B. 8 AWG copper
C. 10 AWG copper D. 4 AWG copper
Correct: B - 8 AWG copper
Rationale:CEC Rule 10-702 requires a minimum bonding conductor of 8 AWG copper for gas
piping. Smaller sizes are not permitted, and larger may be needed based on service size.
Q4.
A three-phase transformer bank is connected delta-delta. If one transformer fails, what
configuration allows continued operation at reduced capacity?
Page 3
, Section A - Safety AND CODE Compliance
A. Open delta (V-V) B. Scott-T connection
C. Wye-delta D. Autotransformer
Correct: A - Open delta (V-V)
Rationale:Open delta (V-V) uses two transformers to supply three-phase power at 57.7% of
rated capacity. Scott-T converts two-phase to three-phase; wye-delta and autotransformer are
not relevant.
Q5.
In a Class I, Division 1 hazardous location, which wiring method is permitted for fixed
wiring?
A. MI cable with approved termination B. MC cable with PVC jacket
C. EMT with compression fittings D. NMSC cable
Correct: A - MI cable with approved termination
Rationale:Mineral-insulated (MI) cable is permitted in Class I, Division 1 areas per CEC
Section 18. MC cable with PVC jacket and EMT are not allowed; NMSC is prohibited.
Q6.
What is the maximum allowable voltage drop on a 120 V branch circuit supplying a
continuous load, per CEC recommendations?
A. 3% B. 5%
C. 2% D. 1%
Correct: A - 3%
Rationale:CEC recommends a maximum voltage drop of 3% for branch circuits (combined
feeder and branch circuit 5%). 3% ensures proper operation of loads.
Q7.
A 200 A residential service has a calculated load of 180 A. What is the minimum ampacity
of the ungrounded conductors?
A. 200 A B. 225 A
C. 180 A D. 210 A
Correct: A - 200 A
Page 4
