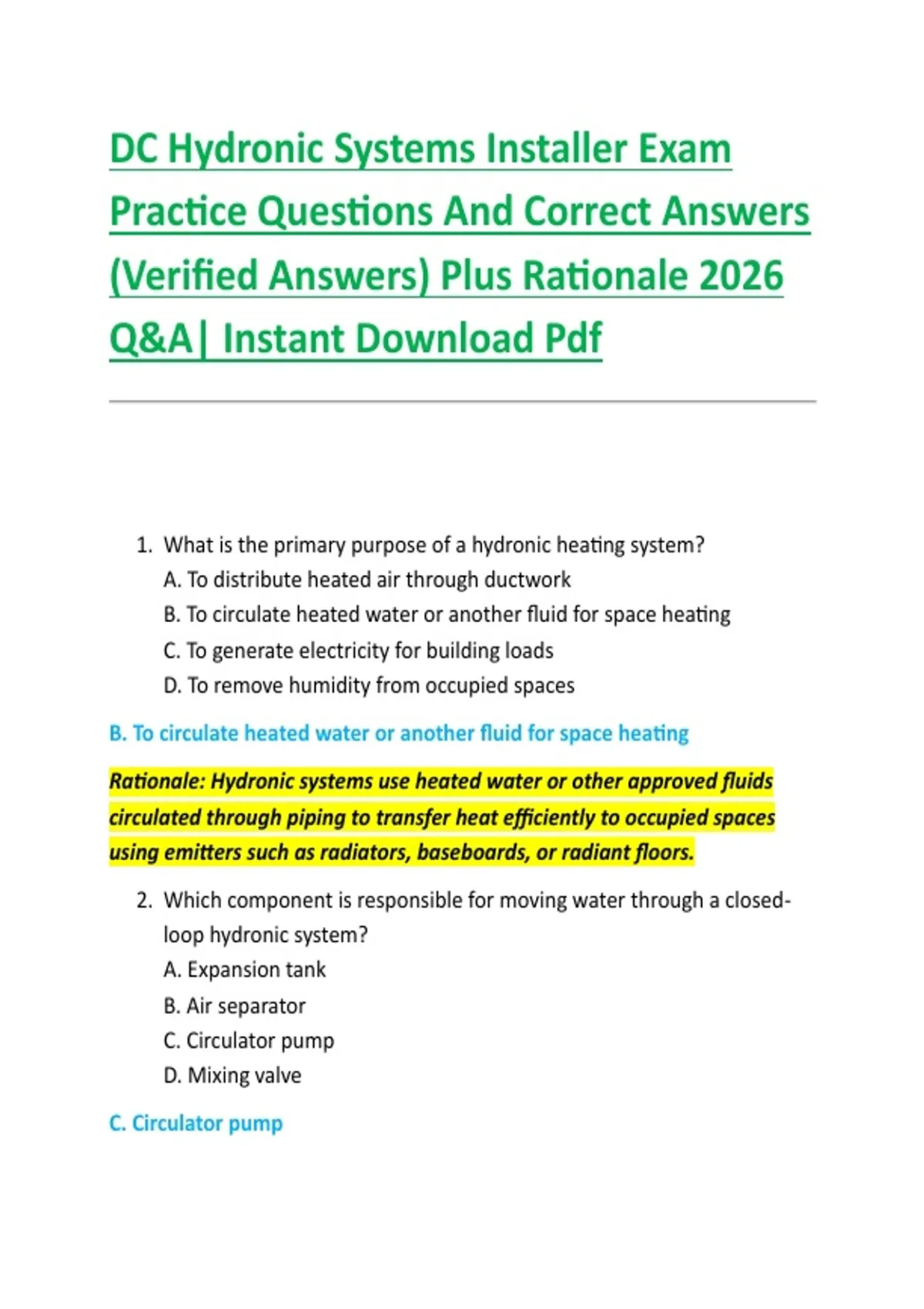

DC Hydronic Systems Installer Exam
Practice Questions And Correct Answers
(Verified Answers) Plus Rationale 2026
Q&A| Instant Download Pdf
1. What is the primary purpose of a hydronic heating system?
A. To distribute heated air through ductwork
B. To circulate heated water or another fluid for space heating
C. To generate electricity for building loads
D. To remove humidity from occupied spaces
B. To circulate heated water or another fluid for space heating
Rationale: Hydronic systems use heated water or other approved fluids
circulated through piping to transfer heat efficiently to occupied spaces
using emitters such as radiators, baseboards, or radiant floors.
2. Which component is responsible for moving water through a closed-
loop hydronic system?
A. Expansion tank
B. Air separator
C. Circulator pump
D. Mixing valve
C. Circulator pump
,Rationale: The circulator pump provides the pressure needed to move
water continuously through the piping network and heating devices.
3. In a closed hydronic system, the expansion tank primarily
accommodates:
A. Air leakage
B. Water filtration
C. Thermal expansion of water
D. Boiler combustion gases
C. Thermal expansion of water
Rationale: As water heats, it expands. The expansion tank absorbs the
increased volume and helps maintain safe system pressure.
4. Which heat emitter primarily transfers heat through radiant energy
from the floor surface?
A. Fan coil unit
B. Convector
C. Radiant floor tubing
D. Cabinet heater
C. Radiant floor tubing
Rationale: Radiant floor systems warm the floor surface, which transfers
heat primarily through radiation and secondarily through natural
convection.
5. What is the purpose of an air separator in a hydronic system?
A. Increase boiler firing rate
B. Remove dissolved and entrained air
C. Measure water temperature
D. Reduce electrical consumption
B. Remove dissolved and entrained air
,Rationale: Air separators remove unwanted air that can reduce circulation
efficiency, create noise, and accelerate corrosion.
6. Which valve automatically limits excessive pressure in a hydronic
boiler?
A. Gate valve
B. Pressure relief valve
C. Check valve
D. Balancing valve
B. Pressure relief valve
Rationale: A pressure relief valve opens when system pressure exceeds its
set point, protecting equipment and piping from damage.
7. Why is oxygen infiltration undesirable in closed hydronic systems?
A. It improves circulation.
B. It lowers boiler efficiency.
C. It accelerates corrosion of metal components.
D. It increases expansion tank capacity.
C. It accelerates corrosion of metal components.
Rationale: Oxygen entering a closed hydronic system promotes rust and
corrosion, reducing the lifespan of boilers, pumps, and piping.
8. What is the primary function of a mixing valve in a radiant floor
heating system?
A. Increase pump speed
B. Blend hot and cooler water to achieve desired supply temperature
C. Remove air from piping
D. Increase system pressure
B. Blend hot and cooler water to achieve desired supply temperature
, Rationale: Mixing valves regulate water temperature supplied to radiant
floors, preventing overheating and improving comfort.
9. Which piping arrangement ensures each terminal unit receives nearly
equal water temperature?
A. Series loop
B. One-pipe system
C. Reverse-return system
D. Diverter tee system
C. Reverse-return system
Rationale: Reverse-return piping provides nearly equal flow path lengths,
simplifying system balancing and improving temperature consistency.
10. What instrument is commonly used to measure hydronic system
pressure?
A. Ammeter
B. Pressure gauge
C. Hygrometer
D. Tachometer
B. Pressure gauge
Rationale: Pressure gauges provide continuous indication of system
pressure, allowing installers and technicians to verify safe operating
conditions.
11. Which boiler control prevents operation when water level
becomes dangerously low?
A. High-limit control
B. Aquastat
C. Low-water cutoff
D. Pressure switch
