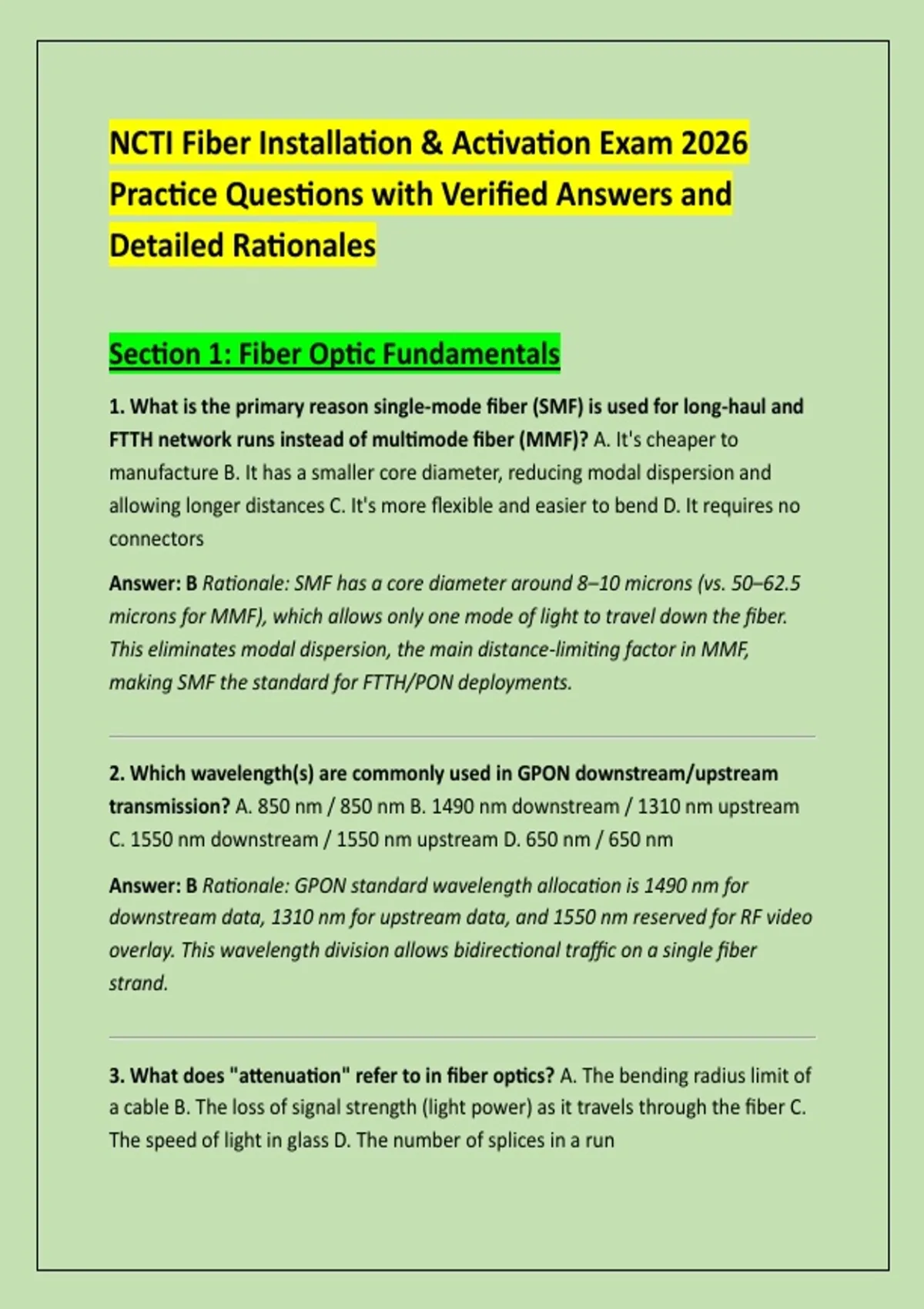

NCTI Fiber Installation & Activation Exam 2026
Practice Questions with Verified Answers and
Detailed Rationales
Section 1: Fiber Optic Fundamentals
1. What is the primary reason single-mode fiber (SMF) is used for long-haul and
FTTH network runs instead of multimode fiber (MMF)? A. It's cheaper to
manufacture B. It has a smaller core diameter, reducing modal dispersion and
allowing longer distances C. It's more flexible and easier to bend D. It requires no
connectors
Answer: B Rationale: SMF has a core diameter around 8–10 microns (vs. 50–62.5
microns for MMF), which allows only one mode of light to travel down the fiber.
This eliminates modal dispersion, the main distance-limiting factor in MMF,
making SMF the standard for FTTH/PON deployments.
2. Which wavelength(s) are commonly used in GPON downstream/upstream
transmission? A. 850 nm / 850 nm B. 1490 nm downstream / 1310 nm upstream
C. 1550 nm downstream / 1550 nm upstream D. 650 nm / 650 nm
Answer: B Rationale: GPON standard wavelength allocation is 1490 nm for
downstream data, 1310 nm for upstream data, and 1550 nm reserved for RF video
overlay. This wavelength division allows bidirectional traffic on a single fiber
strand.
3. What does "attenuation" refer to in fiber optics? A. The bending radius limit of
a cable B. The loss of signal strength (light power) as it travels through the fiber C.
The speed of light in glass D. The number of splices in a run
,Answer: B Rationale: Attenuation is the reduction in optical signal power over
distance, measured in dB/km. It results from absorption, scattering, and bending
losses in the fiber.
4. A technician notices a fiber cable has a bend radius tighter than manufacturer
specification. What is the primary risk? A. Increased bandwidth B. Micro-
bend/macro-bend induced signal loss or fiber breakage C. Faster installation time
D. No risk if the jacket is intact
Answer: B Rationale: Exceeding minimum bend radius causes light to escape the
core (macro-bending loss) or induces micro-fractures, both of which increase
attenuation and can lead to fiber failure over time.
5. What is the typical core size of single-mode fiber? A. 50 microns B. 62.5
microns C. 8–10 microns D. 125 microns
Answer: C Rationale: SMF core diameter is 8–10 microns; the 125-micron figure
refers to the cladding diameter, which is standard across both SMF and MMF.
6. Which connector type is most commonly used in residential ONT installations
due to its low back-reflection and angled ferrule? A. SC/PC B. SC/APC C. ST D.
FC/PC
Answer: B Rationale: SC/APC (Angled Physical Contact) connectors have an 8-
degree angled ferrule that minimizes back-reflection, which is critical in PON
networks carrying both data and RF video. Most FTTH drop cables and ONTs use
APC connectors (commonly identified by their green color).
7. What color is typically used to identify APC connectors and adapters? A. Blue
B. Black C. Green D. Yellow
, Answer: C Rationale: Industry convention uses green for APC connectors/adapters
and blue for PC (Physical Contact/UPC) connectors, helping technicians avoid
mismatching connector types, which can damage ferrules.
8. What happens if you mate a PC (UPC) connector with an APC
adapter/connector? A. Nothing, they are interchangeable B. It can damage the
ferrule end-face and cause excessive signal loss C. It boosts signal strength D. It
automatically converts wavelengths
Answer: B Rationale: PC connectors have a flat/slightly domed polish while APC
connectors are angled at 8 degrees. Mating mismatched types causes physical
contact at the wrong angle, damaging the glass end-face and creating high
insertion loss or back reflection.
9. Which of the following best describes "insertion loss"? A. The loss of signal
caused by a connector, splice, or component in the fiber path B. The total loss
over an entire fiber run including the OLT C. The gain added by an amplifier D. The
loss due to fiber color coding
Answer: A Rationale: Insertion loss is the loss of optical power resulting from
inserting a component (connector, splice, splitter) into the optical path, typically
measured in dB.
10. Why is fiber optic cable immune to electromagnetic interference (EMI)? A.
It's made of copper alloy B. It transmits data as light pulses through glass or
plastic, not electrical signals C. It has a grounding wire D. It uses shielded twisted
pairs
Answer: B Rationale: Because fiber carries information as modulated light rather
than electrical current, it is inherently immune to EMI/RFI, unlike copper coax or
twisted-pair cabling.
