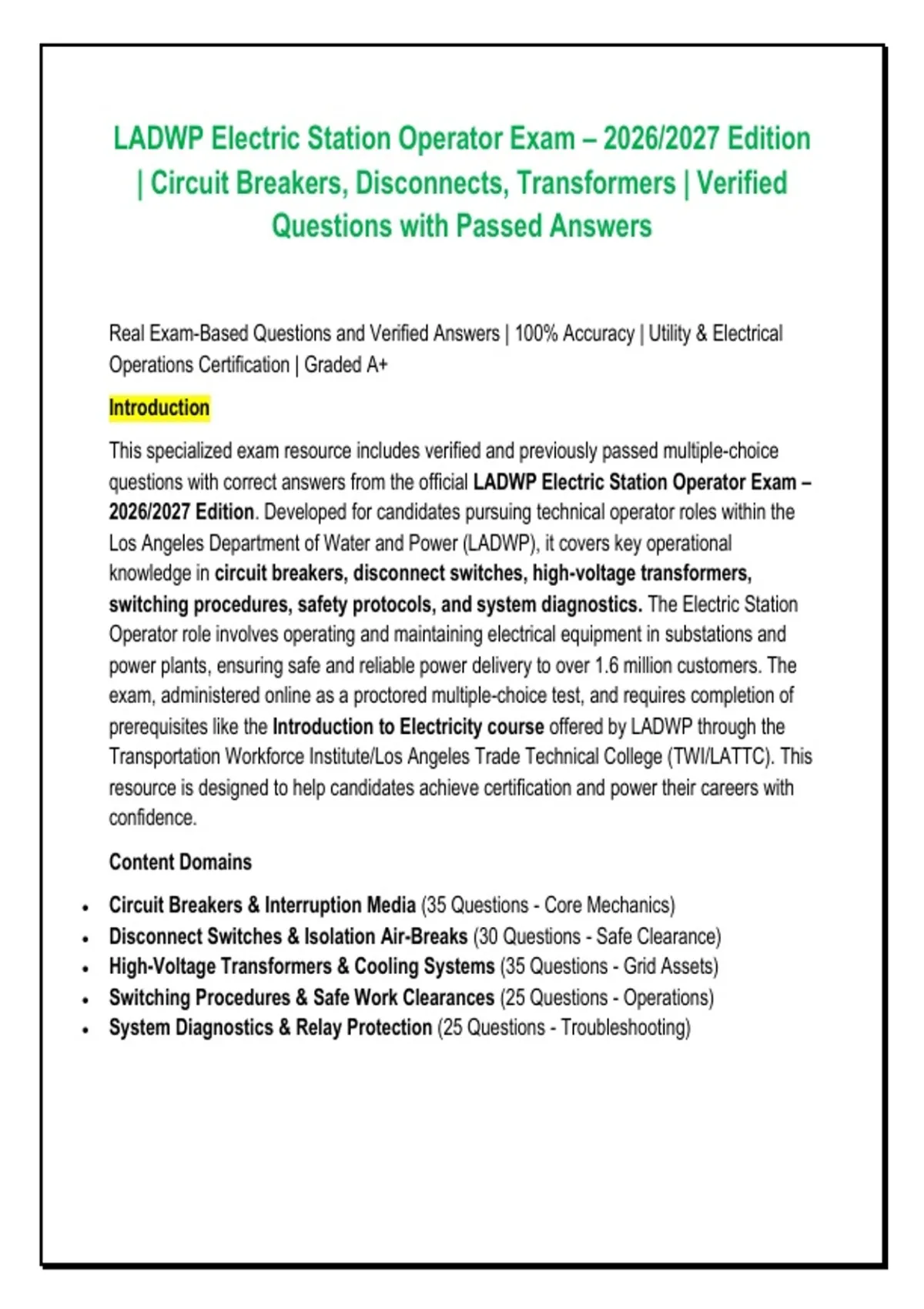

LADWP Electric Station Operator Exam – 2026/2027 Edition
| Circuit Breakers, Disconnects, Transformers | Verified
Questions with Passed Answers
Real Exam-Based Questions and Verified Answers | 100% Accuracy | Utility & Electrical
Operations Certification | Graded A+
Introduction
This specialized exam resource includes verified and previously passed multiple-choice
questions with correct answers from the official LADWP Electric Station Operator Exam –
2026/2027 Edition. Developed for candidates pursuing technical operator roles within the
Los Angeles Department of Water and Power (LADWP), it covers key operational
knowledge in circuit breakers, disconnect switches, high-voltage transformers,
switching procedures, safety protocols, and system diagnostics. The Electric Station
Operator role involves operating and maintaining electrical equipment in substations and
power plants, ensuring safe and reliable power delivery to over 1.6 million customers. The
exam, administered online as a proctored multiple-choice test, and requires completion of
prerequisites like the Introduction to Electricity course offered by LADWP through the
Transportation Workforce Institute/Los Angeles Trade Technical College (TWI/LATTC). This
resource is designed to help candidates achieve certification and power their careers with
confidence.
Content Domains
Circuit Breakers & Interruption Media (35 Questions - Core Mechanics)
Disconnect Switches & Isolation Air-Breaks (30 Questions - Safe Clearance)
High-Voltage Transformers & Cooling Systems (35 Questions - Grid Assets)
Switching Procedures & Safe Work Clearances (25 Questions - Operations)
System Diagnostics & Relay Protection (25 Questions - Troubleshooting)
,Domains 1 (Circuit Breakers & Disconnects Focus)
Q1. A dual-pressure Sulfur Hexafluoride (\(SF_{6}\)) gas circuit breaker exhibits a low-
pressure alarm for the dielectric medium. What is the immediate operational risk if
the gas pressure drops below the critical blocking threshold?
A) The breaker will experience a mechanical runaway and fail to trip.
B) The internal operating springs will completely lose their tension.
C) The medium will lose its dielectric strength, leading to catastrophic arc flashover
during a trip operation.
D) The thermal overload heaters will automatically burn out.
Explanation: \(SF_{6}\) gas relies entirely on its density and pressure to maintain its high
dielectric insulation strength and arc-quenching capabilities. If pressure drops below the
manufacturer's blocking limit, the gas cannot insulate the contacts, resulting in a flashover
or failure to clear a fault.
Q2. Which of the following best describes the core structural and operational
difference between a Substation Circuit Breaker and a standard Disconnect Switch?
A) Circuit breakers can only be operated manually, while disconnect switches are entirely
automated.
B) Disconnect switches are rated to safely interrupt high-velocity short-circuit currents.
C) Circuit breakers are equipped with arc-quenching media to clear load and fault
currents; disconnect switches are isolation devices operated only under zero-load
,conditions.
D) Circuit breakers only isolate voltages under 480 Volts.
Explanation: Circuit breakers possess specialized mechanisms (SF6, vacuum, oil, or air
blast) to extinguish severe electrical arcs generated under full load or short-circuit faults.
Disconnect switches lack these arc-quenching capabilities and will violently fail if opened
while drawing current.
Q3. While executing an automated switching sequence on a high-voltage line, you
note that the mechanical interlock between a circuit breaker and its associated
group-operated disconnect switch is jammed. What is the purpose of this mechanical
interlock?
A) To physically prevent the disconnect switch from opening while the circuit breaker
is in the closed position.
B) To force the circuit breaker to close faster during a fault.
C) To automatically ground the line when the breaker trips.
D) To regulate the charging motor of the breaker's operating springs.
Explanation: Interlocks are vital safety features designed to prevent human error or
operational sequencing mistakes. They physically or electrically ensure that a disconnect
switch cannot be opened or closed unless the matching circuit breaker has already opened
to clear the line current.
, Q4. During a routine station inspection of an outdoor \(SF_{6}\) breaker, an operator
notes a minor gas leak. Why is \(SF_{6}\) gas regulated tightly under utility
environmental compliance mandates?
A) It is highly flammable and explosive when mixed with outdoor air.
B) It is an extremely potent greenhouse gas with a high global warming potential.
C) It rapidly corrodes structural steel and copper bus bars.
D) It converts into pure hydrogen gas when exposed to direct sunlight.
Explanation: Sulfur Hexafluoride (\(SF_{6}\)) is highly valued in utility engineering for its
excellent insulating properties, but it is classified as one of the most severe greenhouse
gases known, requiring rigorous tracking, recycling, and leak remediation protocols.
Q5. When a high-voltage circuit breaker clears a severe transmission line fault, it
must withstand the Transient Recovery Voltage (TRV). What is TRV?
A) The direct current spike that powers the trip coils.
B) The rapid voltage surge that appears across the breaker contacts immediately
after the current arc is extinguished.
C) The residual voltage trapped on the station ground grid.
D) The voltage dip caused by charging the operating springs.
Explanation: TRV is the highly demanding voltage profile that develops across the parting
contacts of a breaker right as the current passes through zero and the arc clears. If the
breaker's dielectric recovery rate cannot outpace the TRV spike, the arc will re-strike.
