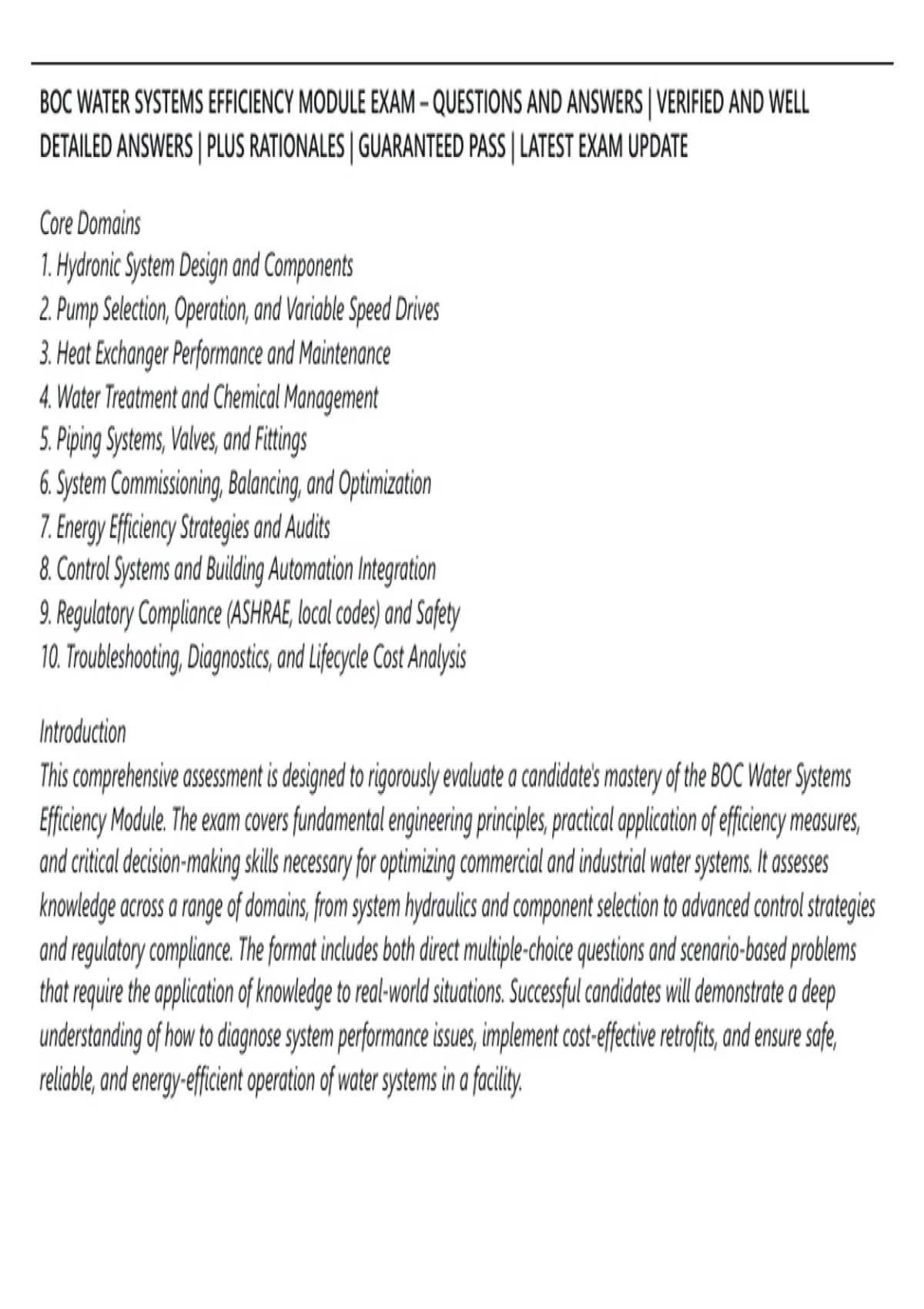

BOC WATER SYSTEMS EFFICIENCY MODULE EXAM – QUESTIONS AND ANSWERS | VERIFIED AND WELL
DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST EXAM UPDATE
Core Domains
1. Hydronic System Design and Components
2. Pump Selection, Operation, and Variable Speed Drives
3. Heat Exchanger Performance and Maintenance
4. Water Treatment and Chemical Management
5. Piping Systems, Valves, and Fittings
6. System Commissioning, Balancing, and Optimization
7. Energy Efficiency Strategies and Audits
8. Control Systems and Building Automation Integration
9. Regulatory Compliance (ASHRAE, local codes) and Safety
10. Troubleshooting, Diagnostics, and Lifecycle Cost Analysis
Introduction
This comprehensive assessment is designed to rigorously evaluate a candidate's mastery of the BOC Water Systems
Efficiency Module. The exam covers fundamental engineering principles, practical application of efficiency measures,
and critical decision-making skills necessary for optimizing commercial and industrial water systems. It assesses
knowledge across a range of domains, from system hydraulics and component selection to advanced control strategies
and regulatory compliance. The format includes both direct multiple-choice questions and scenario-based problems
that require the application of knowledge to real-world situations. Successful candidates will demonstrate a deep
understanding of how to diagnose system performance issues, implement cost-effective retrofits, and ensure safe,
reliable, and energy-efficient operation of water systems in a facility.
,SECTION ONE: QUESTIONS 1 – 100
1. What is the primary function of a variable frequency drive (VFD) in a chilled water system?
A. To increase the motor's starting torque
B. To maintain a constant system pressure
C. To modulate the motor speed to match the required load
D. To convert AC power to DC power
🟢 C. To modulate the motor speed to match the required load
🔴 Explanation: A VFD's primary role in a water system is to save energy by varying the pump or fan motor speed to
meet the actual system demand, rather than running at full speed constantly. This is the fundamental principle of
variable flow systems.
2. Cavitation in a pump is most likely to occur when:
A. The fluid temperature is too low
B. The net positive suction head available (NPSHa) is less than the net positive suction head required (NPSHr)
C. The discharge valve is fully closed
D. The pump is operating at its best efficiency point
🟢 B. The net positive suction head available (NPSHa) is less than the net positive suction head required (NPSHr)
🔴 Explanation: Cavitation happens when the pressure at the pump suction falls below the vapor pressure of the
fluid, causing bubbles to form and then collapse. This condition is defined by NPSHa being insufficient relative to
NPSHr.
3. Which of the following valves is best suited for precise flow control and throttling in a water distribution
system?
A. Gate valve
B. Globe valve
,C. Check valve
D. Ball valve
🟢 B. Globe valve
🔴 Explanation: Globe valves are specifically designed with a disk and seat that allows for precise modulation of
flow, making them ideal for throttling applications. Gate valves are for on/off service, check valves prevent backflow,
and ball valves are also primarily for on/off service.
4. A cooling tower approach temperature is defined as the difference between:
A. The hot water inlet temperature and the ambient wet-bulb temperature
B. The cold water outlet temperature and the ambient wet-bulb temperature
C. The hot water inlet temperature and the cold water outlet temperature
D. The ambient dry-bulb temperature and the ambient wet-bulb temperature
🟢 B. The cold water outlet temperature and the ambient wet-bulb temperature
🔴 Explanation: The "approach" is a key indicator of cooling tower performance. It is the temperature difference
between the water leaving the tower (cold water) and the ambient wet-bulb temperature, which is the theoretical
minimum temperature to which the water can be cooled.
5. Which of the following is a primary benefit of converting a constant flow chilled water system to a variable
primary flow system?
A. Reduced chiller maintenance requirements
B. Elimination of the need for a cooling tower
C. Significant reduction in pump energy consumption
D. Increased the life of the water treatment chemicals
🟢 C. Significant reduction in pump energy consumption
🔴 Explanation: The primary advantage of variable flow systems is that they reduce pumping energy, which often
, accounts for a large portion of a system's operational cost. By reducing flow during part-load conditions, pump
energy is substantially decreased (following the affinity laws).
6. What is the purpose of a strainer in a hydronic system?
A. To increase system pressure
B. To add chemicals to the water
C. To remove suspended solids and debris from the water
D. To measure the water flow rate
🟢 C. To remove suspended solids and debris from the water
🔴 Explanation: Strainers are mechanical devices that use a perforated metal screen or mesh to capture particulate
matter like dirt, scale, and rust. This protects downstream equipment like pumps, heat exchangers, and control
valves from damage or clogging.
7. According to the affinity laws, if the speed of a centrifugal pump is reduced by 20%, the power consumption
will be reduced by approximately:
A. 20%
B. 40%
C. 49%
D. 80%
🟢 C. 49%
🔴 Explanation: The affinity laws state that power (P) is proportional to the cube of the speed (N). If N is reduced by
20%, the new speed is 0.8N. Therefore, the new power is (0.8)³ = 0.512, or about 51% of the original, representing a
49% reduction.
8. In the context of water treatment, what is the primary purpose of a biocide?
A. To adjust the pH of the water
