Summary

Samenvatting MBO Elektrotechniek 2026 + 20 Oefenvragen - Wet van Ohm Installatie Groepenkast Aardlekschakelaar NEN 1010 Schakelingen LED Domotica Zonnepanelen Veiligheid

0.0
(0 reviews)
- sold
12 pages
2025/2026 Written for academic year
Institution
HBO Elektrotechniek
Course
HBO Elektrotechniek
Document preview thumbnail
Preview 2 out of 12 pages

⚡ Complete MBO Elektrotechniek — 25+ pagina's! Basis (Wet van Ohm U=I×R!, vermogen P=U×I!, AC 230V 50Hz!, serie + parallel!), installatie (meterkast 3×25A!, aardlekschakelaar 30 mA levensreddend!, automaat B16!, draadkleuren bruin-blauw-geel/groen NOOIT verwisselen!), schakelaars (wissel 2→1 lamp!, kruis!, dimmer!, IP-classificatie 44=spatwater!), veiligheid (elektrocutie 30mA GEVAARLIJK!, NEN 1010!, spanningsloos 5 stappen!, beschermingsklassen I-II-III!), meten (multimeter!, stroomtang!, storingen systematisch!), verlichting (LED 80% besparing!, lumen!, lux!), domotica (KNX!, Zigbee!, smart home!), duurzaam (zonnepanelen!, warmtepomp COP 3-4!, laadpaal!, BENG!). + 20 oefenvragen! MBO Elektro niv 2/3 — STROOM = TOEKOMST!

Content preview

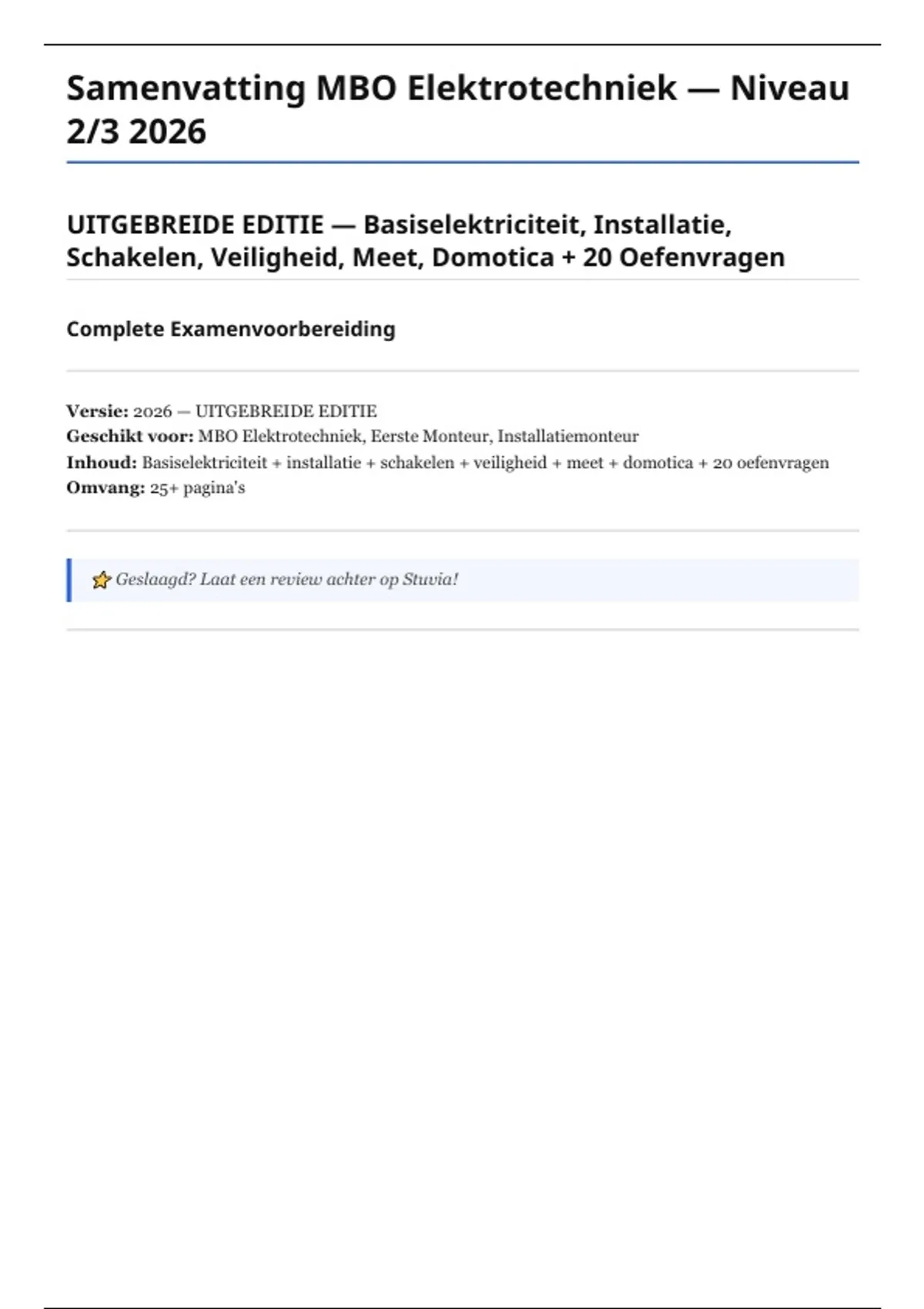

Samenvatting MBO Elektrotechniek — Niveau
2/3 2026

UITGEBREIDE EDITIE — Basiselektriciteit, Installatie,
Schakelen, Veiligheid, Meet, Domotica + 20 Oefenvragen

Complete Examenvoorbereiding


Versie: 2026 — UITGEBREIDE EDITIE
Geschikt voor: MBO Elektrotechniek, Eerste Monteur, Installatiemonteur
Inhoud: Basiselektriciteit + installatie + schakelen + veiligheid + meet + domotica + 20 oefenvragen
Omvang: 25+ pagina's




⭐ Geslaagd? Laat een review achter op Stuvia!

, DEEL 1: BASISELEKTRICITEIT

1.1 Grootheden en Wet van Ohm

Elektrische grootheden:
→ Spanning (U): DRUK op elektronen → Volt (V!)
→ Vergelijking: waterdruk in leiding!
→ Stroom (I): HOEVEELHEID elektronen → Ampère (A!)
→ Vergelijking: waterstroom (liter/min!)
→ Weerstand (R): BELEMMERING stroom → Ohm (Ω!)
→ Vergelijking: kraandiameter (dun = meer weerstand!)
→ Vermogen (P): HOEVEEL energie per seconde → Watt (W!)


Wet van Ohm: U = I × R (KERN formule!)
→ I = U / R (stroom berekenen!)
→ R = U / I (weerstand berekenen!)
→ Voorbeeld: U = 230V, R = 23Ω → I = 230/23 = 10A!


Vermogen: P = U × I (Watt!)
→ P = I² × R (als U niet bekend!)
→ P = U² / R (als I niet bekend!)
→ kWh: kilowattuur (energie = vermogen × tijd!)
→ 2000W × 3 uur = 6 kWh → 6 × €0,40 = €2,40!


→ Gelijkstroom (DC): stroom in 1 richting (batterij, zonnepaneel!)
→ Wisselstroom (AC): stroom wisselt richting (230V, 50Hz → stopcontact!)
→ 50 Hz: 50× per seconde van richting!
→ 230V: effectieve waarde (piek = 325V!)
