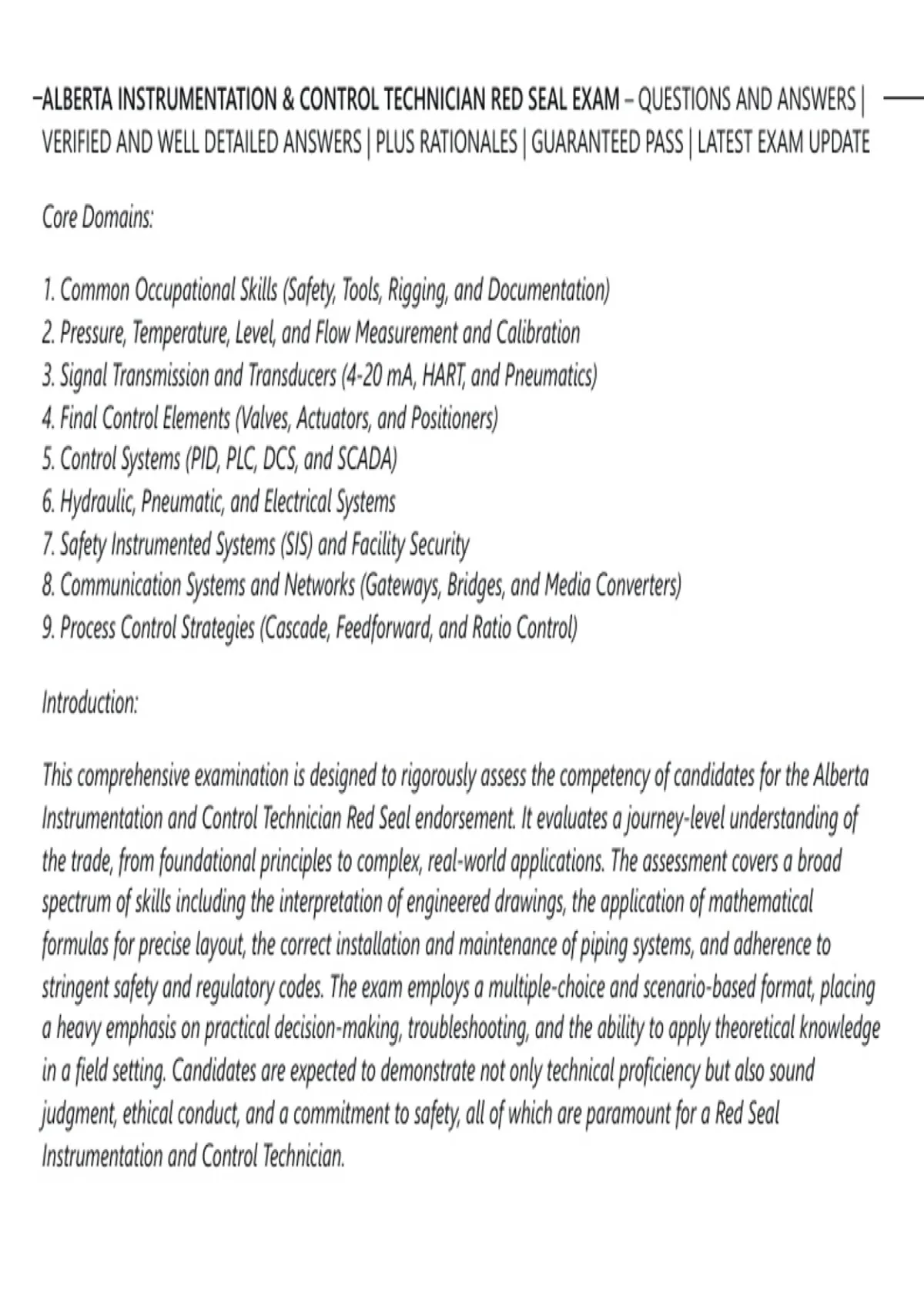

ALBERTA INSTRUMENTATION & CONTROL TECHNICIAN RED SEAL EXAM – QUESTIONS AND ANSWERS |
VERIFIED AND WELL DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST EXAM UPDATE
Core Domains:
1. Common Occupational Skills (Safety, Tools, Rigging, and Documentation)
2. Pressure, Temperature, Level, and Flow Measurement and Calibration
3. Signal Transmission and Transducers (4-20 mA, HART, and Pneumatics)
4. Final Control Elements (Valves, Actuators, and Positioners)
5. Control Systems (PID, PLC, DCS, and SCADA)
6. Hydraulic, Pneumatic, and Electrical Systems
7. Safety Instrumented Systems (SIS) and Facility Security
8. Communication Systems and Networks (Gateways, Bridges, and Media Converters)
9. Process Control Strategies (Cascade, Feedforward, and Ratio Control)
Introduction:
This comprehensive examination is designed to rigorously assess the competency of candidates for the Alberta
Instrumentation and Control Technician Red Seal endorsement. It evaluates a journey-level understanding of
the trade, from foundational principles to complex, real-world applications. The assessment covers a broad
spectrum of skills including the interpretation of engineered drawings, the application of mathematical
formulas for precise layout, the correct installation and maintenance of piping systems, and adherence to
stringent safety and regulatory codes. The exam employs a multiple-choice and scenario-based format, placing
a heavy emphasis on practical decision-making, troubleshooting, and the ability to apply theoretical knowledge
in a field setting. Candidates are expected to demonstrate not only technical proficiency but also sound
judgment, ethical conduct, and a commitment to safety, all of which are paramount for a Red Seal
Instrumentation and Control Technician.
,SECTION ONE: QUESTIONS 1 - 100
1. What is the principle of operation of a bullseye level gauge when used on a steam boiler application?
A. Conductivity of water
B. Voltage change of a thermocouple
C. Differing refractive indexes of steam and water
D. Resistance change of an RTD
🟢C
🔴 Explanation: A bullseye level gauge uses the differing refractive indices of steam and water to visually
indicate the liquid level. In the gauge, water appears dark while steam appears light, providing a clear visual
indication .
2. What is the standard output signal for a 4-20 mA transmitter?
A. 0-5 V
B. 1-5 V
C. 4-20 mA
D. 0-10 V
🟢C
🔴 Explanation: The 4-20 mA current loop is the industry standard for transmitting analog signals over long
distances. It is less susceptible to electrical noise and can also power the transmitter .
3. Which type of sensor is used to measure temperature in high-pressure environments?
A. Thermistor
B. RTD
,C. Thermocouple Type K
D. Infrared sensor
🟢B
🔴 Explanation: RTDs (Resistance Temperature Detectors) are preferred for high-pressure environments
because they can withstand higher pressures than thermocouples while providing accurate and stable
measurements .
4. A PID controller is used to:
A. Record process data
B. Maintain a process variable at a setpoint
C. Convert analog to digital signals
D. Filter noise from signals
🟢B
🔴 Explanation: A PID (Proportional-Integral-Derivative) controller is a feedback mechanism that
continuously calculates an error value and adjusts the control output to maintain the process variable at the
desired setpoint .
5. What does the "I" in PID stand for?
A. Increment
B. Integral
C. Initial
D. Input
🟢B
, 🔴 Explanation: In a PID controller, the "I" stands for Integral. The integral term sums the past errors over
time to eliminate steady-state offset, ensuring the process variable reaches the setpoint .
6. Which type of valve is commonly used for precise flow control in instrumentation systems?
A. Ball valve
B. Gate valve
C. Globe valve
D. Butterfly valve
🟢C
🔴 Explanation: Globe valves offer fine control over flow due to their linear movement and throttling
capabilities. They are the standard choice for applications requiring precise flow regulation .
7. The primary use of a diaphragm in a pressure transmitter is to:
A. Amplify signal
B. Sense pressure changes
C. Convert pressure to temperature
D. Act as a filter
🟢B
🔴 Explanation: The diaphragm is the primary sensing element in most pressure transmitters. It flexes under
pressure, and this mechanical deflection is converted into a measurable electrical or pneumatic signal .
8. Which type of flowmeter uses the principle of differential pressure?
A. Ultrasonic flowmeter
B. Magnetic flowmeter
VERIFIED AND WELL DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST EXAM UPDATE
Core Domains:
1. Common Occupational Skills (Safety, Tools, Rigging, and Documentation)
2. Pressure, Temperature, Level, and Flow Measurement and Calibration
3. Signal Transmission and Transducers (4-20 mA, HART, and Pneumatics)
4. Final Control Elements (Valves, Actuators, and Positioners)
5. Control Systems (PID, PLC, DCS, and SCADA)
6. Hydraulic, Pneumatic, and Electrical Systems
7. Safety Instrumented Systems (SIS) and Facility Security
8. Communication Systems and Networks (Gateways, Bridges, and Media Converters)
9. Process Control Strategies (Cascade, Feedforward, and Ratio Control)
Introduction:
This comprehensive examination is designed to rigorously assess the competency of candidates for the Alberta
Instrumentation and Control Technician Red Seal endorsement. It evaluates a journey-level understanding of
the trade, from foundational principles to complex, real-world applications. The assessment covers a broad
spectrum of skills including the interpretation of engineered drawings, the application of mathematical
formulas for precise layout, the correct installation and maintenance of piping systems, and adherence to
stringent safety and regulatory codes. The exam employs a multiple-choice and scenario-based format, placing
a heavy emphasis on practical decision-making, troubleshooting, and the ability to apply theoretical knowledge
in a field setting. Candidates are expected to demonstrate not only technical proficiency but also sound
judgment, ethical conduct, and a commitment to safety, all of which are paramount for a Red Seal
Instrumentation and Control Technician.
,SECTION ONE: QUESTIONS 1 - 100
1. What is the principle of operation of a bullseye level gauge when used on a steam boiler application?
A. Conductivity of water
B. Voltage change of a thermocouple
C. Differing refractive indexes of steam and water
D. Resistance change of an RTD
🟢C
🔴 Explanation: A bullseye level gauge uses the differing refractive indices of steam and water to visually
indicate the liquid level. In the gauge, water appears dark while steam appears light, providing a clear visual
indication .
2. What is the standard output signal for a 4-20 mA transmitter?
A. 0-5 V
B. 1-5 V
C. 4-20 mA
D. 0-10 V
🟢C
🔴 Explanation: The 4-20 mA current loop is the industry standard for transmitting analog signals over long
distances. It is less susceptible to electrical noise and can also power the transmitter .
3. Which type of sensor is used to measure temperature in high-pressure environments?
A. Thermistor
B. RTD
,C. Thermocouple Type K
D. Infrared sensor
🟢B
🔴 Explanation: RTDs (Resistance Temperature Detectors) are preferred for high-pressure environments
because they can withstand higher pressures than thermocouples while providing accurate and stable
measurements .
4. A PID controller is used to:
A. Record process data
B. Maintain a process variable at a setpoint
C. Convert analog to digital signals
D. Filter noise from signals
🟢B
🔴 Explanation: A PID (Proportional-Integral-Derivative) controller is a feedback mechanism that
continuously calculates an error value and adjusts the control output to maintain the process variable at the
desired setpoint .
5. What does the "I" in PID stand for?
A. Increment
B. Integral
C. Initial
D. Input
🟢B
, 🔴 Explanation: In a PID controller, the "I" stands for Integral. The integral term sums the past errors over
time to eliminate steady-state offset, ensuring the process variable reaches the setpoint .
6. Which type of valve is commonly used for precise flow control in instrumentation systems?
A. Ball valve
B. Gate valve
C. Globe valve
D. Butterfly valve
🟢C
🔴 Explanation: Globe valves offer fine control over flow due to their linear movement and throttling
capabilities. They are the standard choice for applications requiring precise flow regulation .
7. The primary use of a diaphragm in a pressure transmitter is to:
A. Amplify signal
B. Sense pressure changes
C. Convert pressure to temperature
D. Act as a filter
🟢B
🔴 Explanation: The diaphragm is the primary sensing element in most pressure transmitters. It flexes under
pressure, and this mechanical deflection is converted into a measurable electrical or pneumatic signal .
8. Which type of flowmeter uses the principle of differential pressure?
A. Ultrasonic flowmeter
B. Magnetic flowmeter
