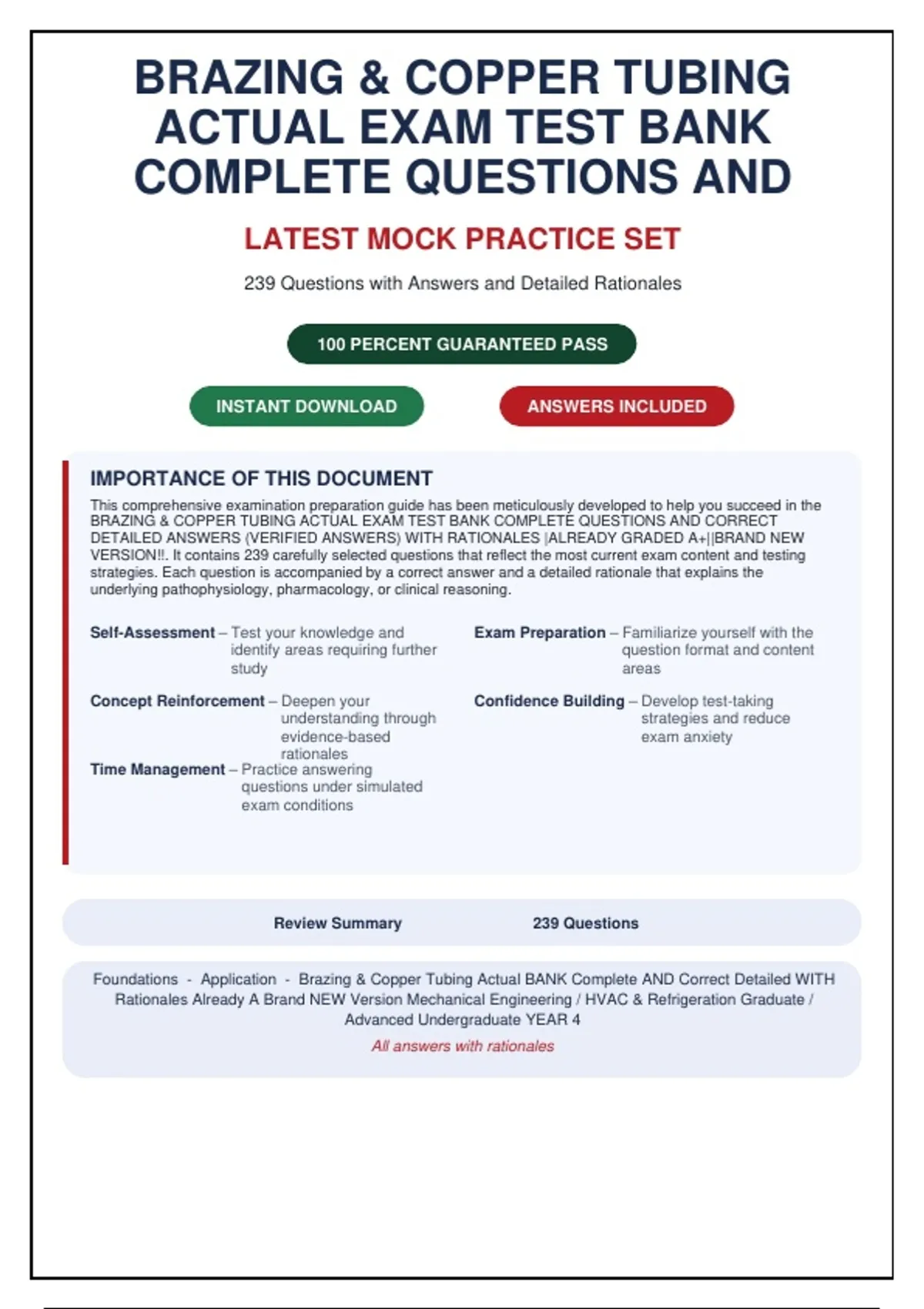

BRAZING & COPPER TUBING
ACTUAL EXAM TEST BANK
COMPLETE QUESTIONS AND
LATEST MOCK PRACTICE SET
239 Questions with Answers and Detailed Rationales
100 PERCENT GUARANTEED PASS
INSTANT DOWNLOAD ANSWERS INCLUDED
IMPORTANCE OF THIS DOCUMENT
This comprehensive examination preparation guide has been meticulously developed to help you succeed in the
BRAZING & COPPER TUBING ACTUAL EXAM TEST BANK COMPLETE QUESTIONS AND CORRECT
DETAILED ANSWERS (VERIFIED ANSWERS) WITH RATIONALES |ALREADY GRADED A+||BRAND NEW
VERSION!!. It contains 239 carefully selected questions that reflect the most current exam content and testing
strategies. Each question is accompanied by a correct answer and a detailed rationale that explains the
underlying pathophysiology, pharmacology, or clinical reasoning.
Self-Assessment – Test your knowledge and Exam Preparation – Familiarize yourself with the
identify areas requiring further question format and content
study areas
Concept Reinforcement – Deepen your Confidence Building – Develop test-taking
understanding through strategies and reduce
evidence-based exam anxiety
rationales
Time Management – Practice answering
questions under simulated
exam conditions
Review Summary 239 Questions
Foundations - Application - Brazing & Copper Tubing Actual BANK Complete AND Correct Detailed WITH
Rationales Already A Brand NEW Version Mechanical Engineering / HVAC & Refrigeration Graduate /
Advanced Undergraduate YEAR 4
All answers with rationales
,Table of Contents
Section A - Brazing Fundamentals Section B - Copper Tubing Types AND
AND Safety Applications
Questions 1 to 60 Questions 61 to 120
Section C - Brazing Equipment AND Section D - Filler Metals AND Fluxes
Setup Questions 181 to 239
Questions 121 to 180
,Section A - Brazing Fundamentals AND Safety
Q1.
A brazed joint in a copper water line fails under pressure. The joint exhibits incomplete
penetration and the filler metal did not flow into the gap. Which combination of factors is
the MOST likely cause?
A. Excessive joint clearance and insufficient B. Insufficient joint clearance and
flux overheating
C. Proper clearance but incorrect filler metal D. Contaminated surfaces and inadequate
composition preheat
Correct: A - Excessive joint clearance and insufficient flux
Rationale:Excessive clearance (>0.05 in) reduces capillary action, preventing filler flow.
Insufficient flux fails to remove oxides, blocking wetting. Option B: insufficient clearance
(<0.001 in) restricts capillary flow, but overheating would cause filler to alloy excessively, not
prevent flow. Option C: proper clearance with wrong filler might still flow but could embrittle.
Option D: contamination and inadequate preheat can cause defects, but the primary cause of
no flow is excessive gap and flux failure.
Q2.
During brazing of a copper-to-brass joint, the filler metal beads up and does not wet the
brass surface. The flux appears to be active. What is the MOST likely reason for this lack
of wetting?
A. The brass surface has a zinc oxide layer B. The copper surface is oxidized due to
that the flux cannot remove insufficient preheat
C. The filler metal has too high a silver D. The joint clearance is too tight for
content capillary action
Correct: A - The brass surface has a zinc oxide layer that the flux cannot remove
Rationale:Brass contains zinc, which forms a stable zinc oxide at brazing temperatures that
many fluxes cannot dissolve, preventing wetting. Option B: copper oxide is easily reduced by
flux if preheated properly. Option C: high silver fillers actually wet brass better. Option D: tight
clearance enhances capillary action, not prevents it.
Q3.
Which of the following joint designs provides the HIGHEST mechanical strength in a
brazed copper tubing assembly subjected to cyclic thermal loading?
A. Lap joint with a length equal to three B. Butt joint with a 45° bevel on both ends
times the tube wall thickness
Page 3
, Section A - Brazing Fundamentals AND Safety
C. Socket joint with a depth equal to the D. Flanged joint with a compression gasket
tube outer diameter
Correct: A - Lap joint with a length equal to three times the tube wall thickness
Rationale:Lap joints distribute stress over a larger area and are preferred for cyclic loading. A
lap length of 3x wall thickness provides adequate strength without excessive material. Butt
joints (B) have lower fatigue resistance due to stress concentration at the weld. Socket joints
(C) are common but can experience stress risers at the socket edge. Flanged joints (D) are
mechanical, not brazed.
Q4.
A technician uses a propane torch to braze a 1-inch copper tube. The joint is overheated,
causing the filler metal to flow excessively and form a large fillet. What is the PRIMARY
metallurgical concern with this practice?
A. Increased risk of flux inclusions B. Formation of brittle intermetallic
compounds
C. Excessive oxidation of the copper surface D. Reduction in joint ductility due to grain
growth
Correct: D - Reduction in joint ductility due to grain growth
Rationale:Overheating copper above about 1100°F (593°C) causes rapid grain growth,
reducing ductility and making the joint susceptible to cracking under thermal stress. Option A:
flux inclusions are more likely with insufficient heating. Option B: intermetallics form with
certain filler-base metal combinations, not from overheating alone. Option C: oxidation occurs
but is less critical than grain growth.
Q5.
In accordance with AWS B2.2/B2.2M, what is the MINIMUM overlap length for a lap joint
brazing of copper tube to a copper fitting when the tube wall thickness is 0.065 in?
A. 0.130 in B. 0.195 in
C. 0.260 in D. 0.325 in
Correct: B - 0.195 in
Rationale:AWS B2.2 specifies minimum lap length as 3 times the thinner member thickness.
Here, 3 × 0.065 in = 0.195 in. Option A (2×) is insufficient; option C (4×) is conservative but
not minimum; option D (5×) is excessive. The standard ensures adequate shear strength.
Page 4
