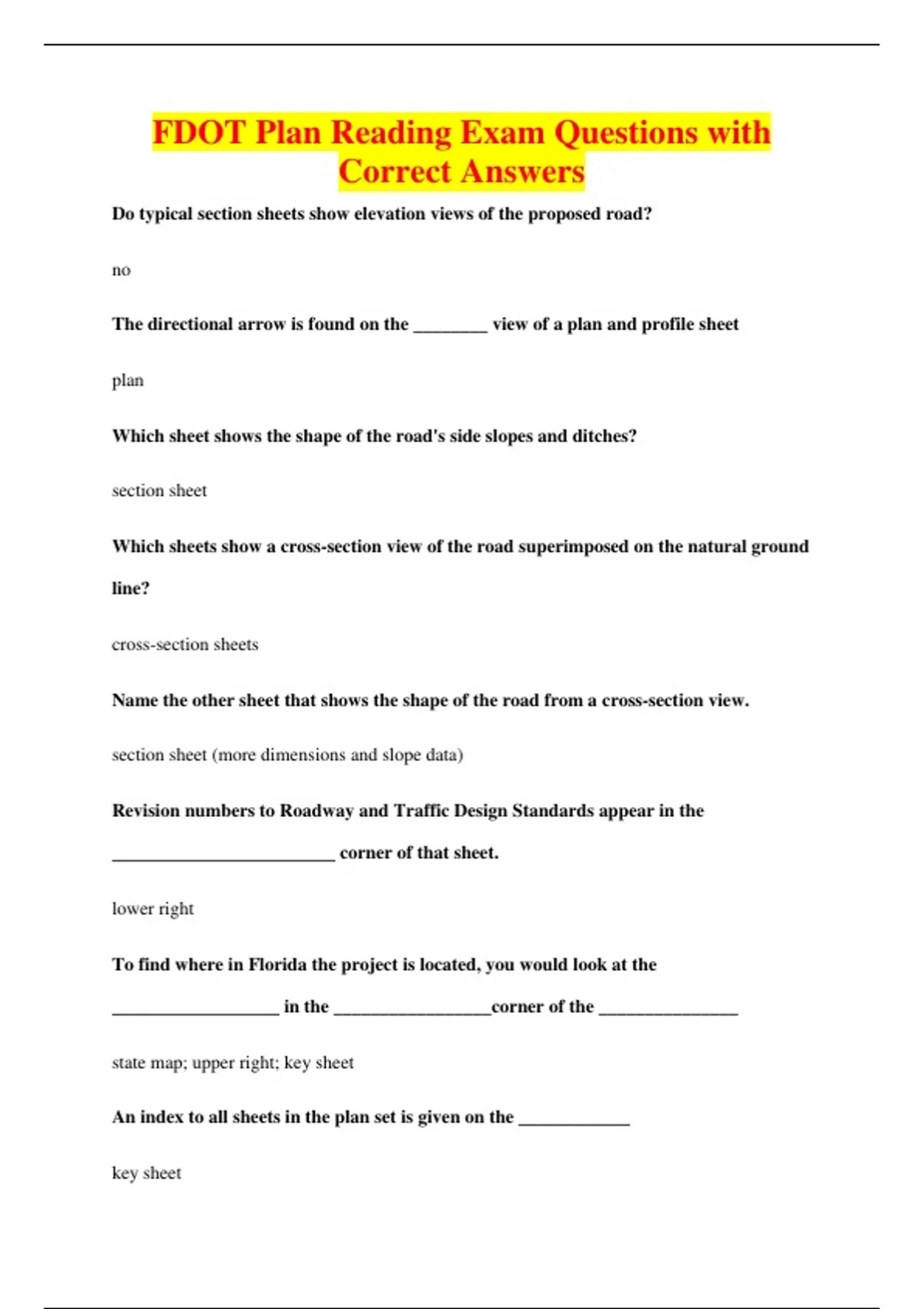

FDOT Plan Reading Exam Questions with
Correct Answers
Do typical section sheets show elevation views of the proposed road?
no
The directional arrow is found on the ________ view of a plan and profile sheet
plan
Which sheet shows the shape of the road's side slopes and ditches?
section sheet
Which sheets show a cross-section view of the road superimposed on the natural ground
line?
cross-section sheets
Name the other sheet that shows the shape of the road from a cross-section view.
section sheet (more dimensions and slope data)
Revision numbers to Roadway and Traffic Design Standards appear in the
________________________ corner of that sheet.
lower right
To find where in Florida the project is located, you would look at the
__________________ in the _________________corner of the _______________
state map; upper right; key sheet
An index to all sheets in the plan set is given on the ____________
key sheet
,Shows cross-section view with typical shape and dimensions of proposed road
section sheets
Cover sheet which identifies the project and shows its location
key sheet
Shows details of roadway items usable on many projects
roadway and traffic design standards
Shows tabulated quantities of all materials and work required for construction
summary of quantities sheet
Shows two views of the roadway - a plan view and an elevation view
plan and profile sheets
Shows the natural ground line and the template of the proposed roadway at frequent
points along the roadway
cross section sheet
Plan sheet with details of road signs to be erected
signing and pavement making plans
Plan sheet with the details of the electrical wiring of traffic signals
signalization plans
Plan sheet with details of bridges to be constructed on the project
structures plan
Plan sheet with cross section views of the proposed roadway
, roadway plans
Sheet number prefix - L
lighting plans
Sheet number prefix - S
signing and pavement making plans
Sheet number prefix - T
signalization plans
Sheet number prefix any letter other than I,L,O,Q,S or T
structures plans
Sheet numbers without prefixes are in the
roadway plans
Which sheets do not have sheet identification boxes in their upper right corners?
roadway and traffic design standards
Sheet names appear in the _______________ corners of most types of sheets.
lower right
Project numbers and sheet numbers appear in the upper right corners of all sheets
except
roadway and traffic design standards
On which sheet would you find an "index of structure plans"?
structures key sheet
