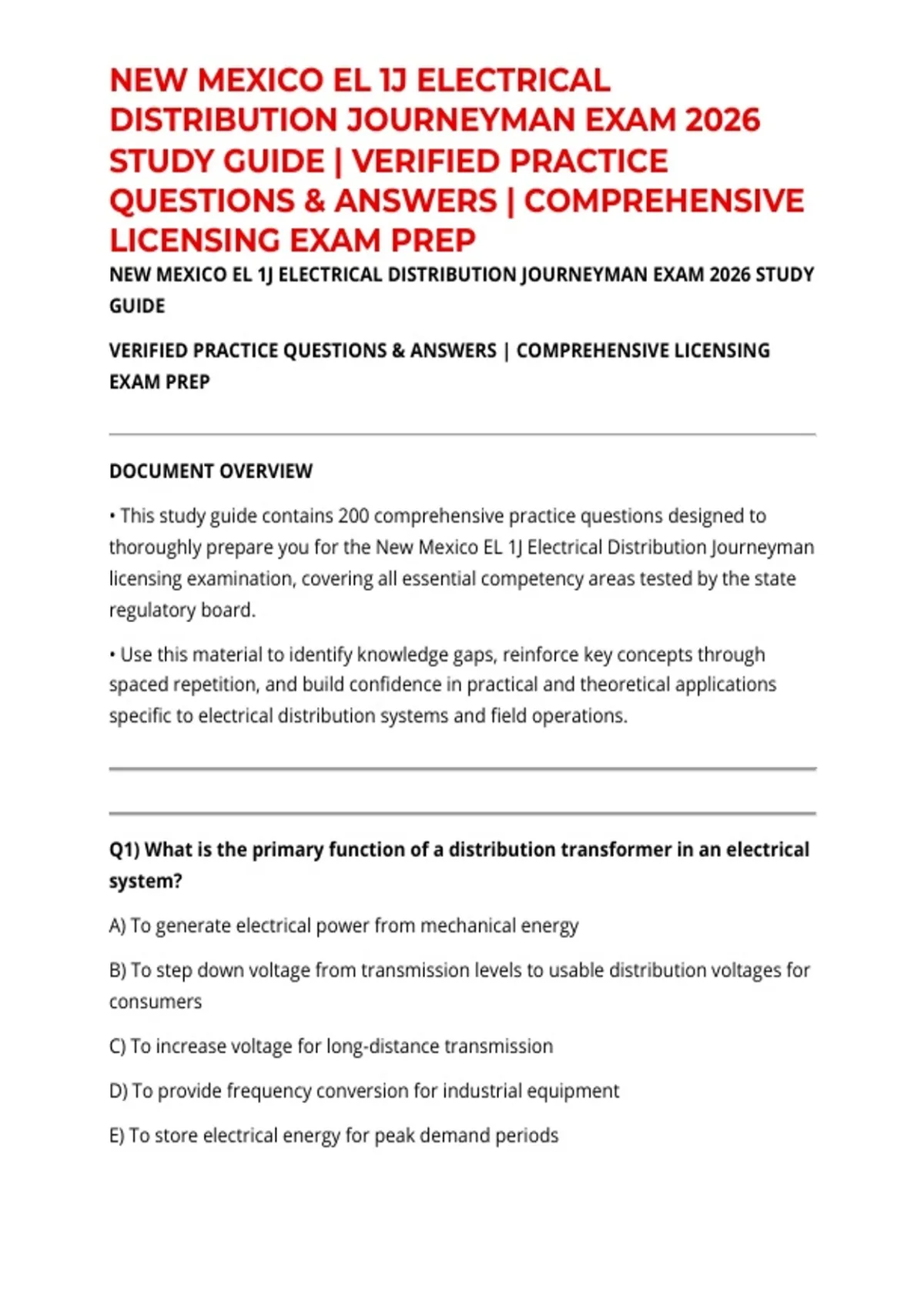

NEW MEXICO EL 1J ELECTRICAL
DISTRIBUTION JOURNEYMAN EXAM 2026
STUDY GUIDE | VERIFIED PRACTICE
QUESTIONS & ANSWERS | COMPREHENSIVE
LICENSING EXAM PREP
NEW MEXICO EL 1J ELECTRICAL DISTRIBUTION JOURNEYMAN EXAM 2026 STUDY
GUIDE
VERIFIED PRACTICE QUESTIONS & ANSWERS | COMPREHENSIVE LICENSING
EXAM PREP
DOCUMENT OVERVIEW
• This study guide contains 200 comprehensive practice questions designed to
thoroughly prepare you for the New Mexico EL 1J Electrical Distribution Journeyman
licensing examination, covering all essential competency areas tested by the state
regulatory board.
• Use this material to identify knowledge gaps, reinforce key concepts through
spaced repetition, and build confidence in practical and theoretical applications
specific to electrical distribution systems and field operations.
Q1) What is the primary function of a distribution transformer in an electrical
system?
A) To generate electrical power from mechanical energy
B) To step down voltage from transmission levels to usable distribution voltages for
consumers
C) To increase voltage for long-distance transmission
D) To provide frequency conversion for industrial equipment
E) To store electrical energy for peak demand periods
,CORRECT ANSWER: B - To step down voltage from transmission levels to
usable distribution voltages for consumers
RATIONALE: Distribution transformers are specifically designed to reduce high
transmission voltages (typically 4 kV to 34.5 kV) to lower distribution voltages (120V
to 480V) that are safe and usable for residential, commercial, and industrial
customers. This is their primary function in the electrical distribution system.
Q2) According to the NEC, what is the minimum wire size for a service
entrance conductor in most residential applications?
A) #12 AWG copper
B) #10 AWG copper
C) #8 AWG copper
D) #6 AWG copper
E) #4 AWG copper
CORRECT ANSWER: C - #8 AWG copper
RATIONALE: NEC Article 230 establishes that service entrance conductors must be
sized based on the service amperage rating. For typical residential services (100-200
amps), #8 AWG copper is the minimum size required to safely carry the current and
minimize voltage drop while meeting code requirements.
Q3) What does the term "grounding" refer to in electrical systems?
A) Connecting all equipment to the earth or a neutral conductor to provide a path
for fault current
B) Physically burying power cables underground
C) Reducing the frequency of electrical power
,D) Preventing moisture from entering electrical equipment
E) Insulating equipment from moisture and weather
CORRECT ANSWER: A - Connecting all equipment to the earth or a neutral
conductor to provide a path for fault current
RATIONALE: Grounding is a critical safety practice defined in NEC Article 250 that
involves intentionally connecting conductive equipment frames and systems to
earth or a neutral reference to ensure fault currents are safely dissipated. This
protects personnel and equipment from dangerous voltage levels during faults.
Q4) How is voltage drop calculated in a distribution conductor?
A) VD = I × R, where I is current and R is conductor resistance
B) VD = V × I, where V is voltage and I is current
C) VD = P ÷ I, where P is power and I is current
D) VD = √(R² + X²), where R is resistance and X is reactance
E) VD = I² × R × L, where L is conductor length
CORRECT ANSWER: A - VD = I × R, where I is current and R is conductor
resistance
RATIONALE: Voltage drop is calculated using Ohm's law applied to the conductor:
VD = I × R. The conductor's resistance depends on its material, cross-sectional area,
and length. For AC circuits, reactance must also be considered, but the basic
formula for resistive voltage drop is I × R. NEC recommends that voltage drop not
exceed 3% to 5% depending on the circuit type.
Q5) What is the purpose of a surge protector or lightning arrester on a
distribution system?
, A) To increase the system voltage during low-load periods
B) To protect equipment from damage due to lightning strikes and switching surges
C) To regulate transformer cooling systems
D) To disconnect the circuit during overload conditions
E) To measure the power factor of the distribution line
CORRECT ANSWER: B - To protect equipment from damage due to lightning
strikes and switching surges
RATIONALE: Surge protectors and lightning arresters are essential safety devices
installed on distribution systems to protect transformers, switchgear, and customer
equipment from transient overvoltages caused by lightning strikes and switching
operations. They function by directing excess voltage safely to ground.
Q6) What determines the amperage rating of an overcurrent protection
device?
A) The color of the insulation on the wire
B) The ambient temperature surrounding the device
C) The conductor ampacity and the circuit it protects
D) The age of the electrical equipment
E) The type of power source (AC or DC only)
CORRECT ANSWER: C - The conductor ampacity and the circuit it protects
RATIONALE: Overcurrent protection devices (fuses and circuit breakers) must be
rated to protect the conductor and equipment they serve. NEC Article 240 requires
that the amperage rating of protection devices not exceed the ampacity of the
smallest conductor in the circuit. This ensures that conductors are protected before
they can overheat and cause fires.
