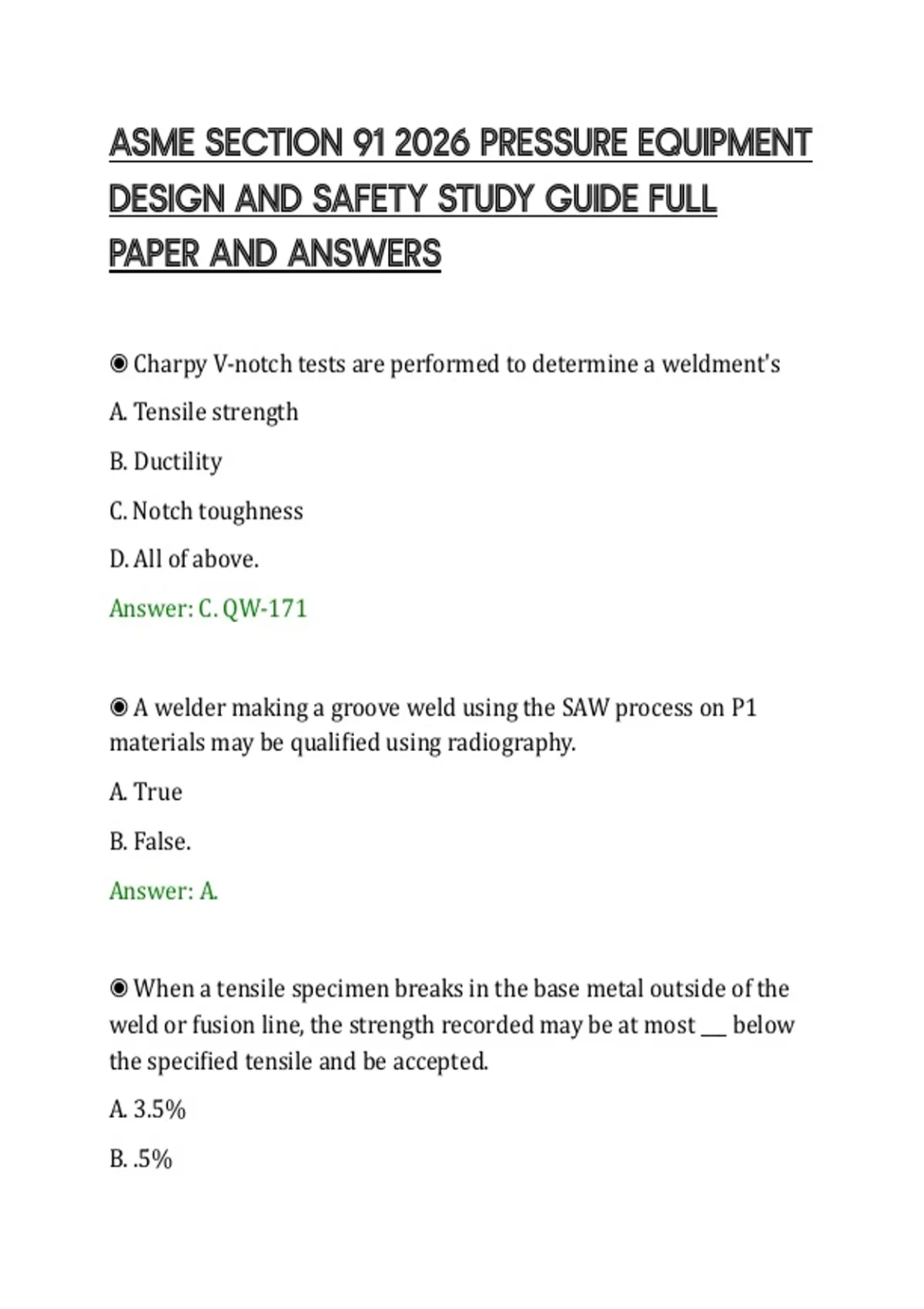

ASME SECTION 91 2026 PRESSURE EQUIPMENT
DESIGN AND SAFETY STUDY GUIDE FULL
PAPER AND ANSWERS
◉ Charpy V-notch tests are performed to determine a weldment's
A. Tensile strength
B. Ductility
C. Notch toughness
D. All of above.
Answer: C. QW-171
◉ A welder making a groove weld using the SAW process on P1
materials may be qualified using radiography.
A. True
B. False.
Answer: A.
◉ When a tensile specimen breaks in the base metal outside of the
weld or fusion line, the strength recorded may be at most ___ below
the specified tensile and be accepted.
A. 3.5%
B. .5%
,C. 5%
D. All of the above.
Answer: C. Table QW-153.1
◉ Guided-bend specimens shall have no open defects in the weld or
heat effected zone exceeding ________________ measured in any
direction on the convex surface of the specimen after bending.
A. 1/16"
B. 3/32"
C. 1/8"
D. None of the above.
Answer: C. QW-163
◉ When using radiographs to qualify welders, the acceptance
standards used are found in
A. ASME Section V
B. ASME Section IX
C. ASME Section VIII
D. The referencing code.
Answer: B.
◉ A WPS must describe:
,A. Essential variables
B. Nonessential variables
C. Supplementary essential variables when required for notch
toughness
D. All of the above.
Answer: D. QW-200.1
◉ A PQR must describe:
A. Nonessential variables
B. Essential variables
C. Results of Welder Qualification tests
D. Project description & NDE methods.
Answer: B. QW-200.2
◉ The ______ must certify the PQR as accurate.
A. Inspector
B. Manufacturer or contractor
C. Welder
D. All of the above.
Answer: B
, ◉ For the SMAW process ______________ is an essential variable for the
WPS.
A. Groove design
B. Post Weld Heat Treatment
C. Root spacing
D. Method of cleaning.
Answer: B
◉ For the SAW process _____________ is an essential variable for the
WPS.
A. Supplemental powdered filler metal (if used)
B. Filler metal diameter
C. Preheat maintenance
D. Addition or deletion of peening.
Answer: A
◉ The basic purpose of testing a welder is to establish the welder's
______________.
A. Knowledge of welding requirements
B. Ability to deposit sound weld metal
C. mechanical ability to operate equipment
D. General attitude toward welding inspectors.
