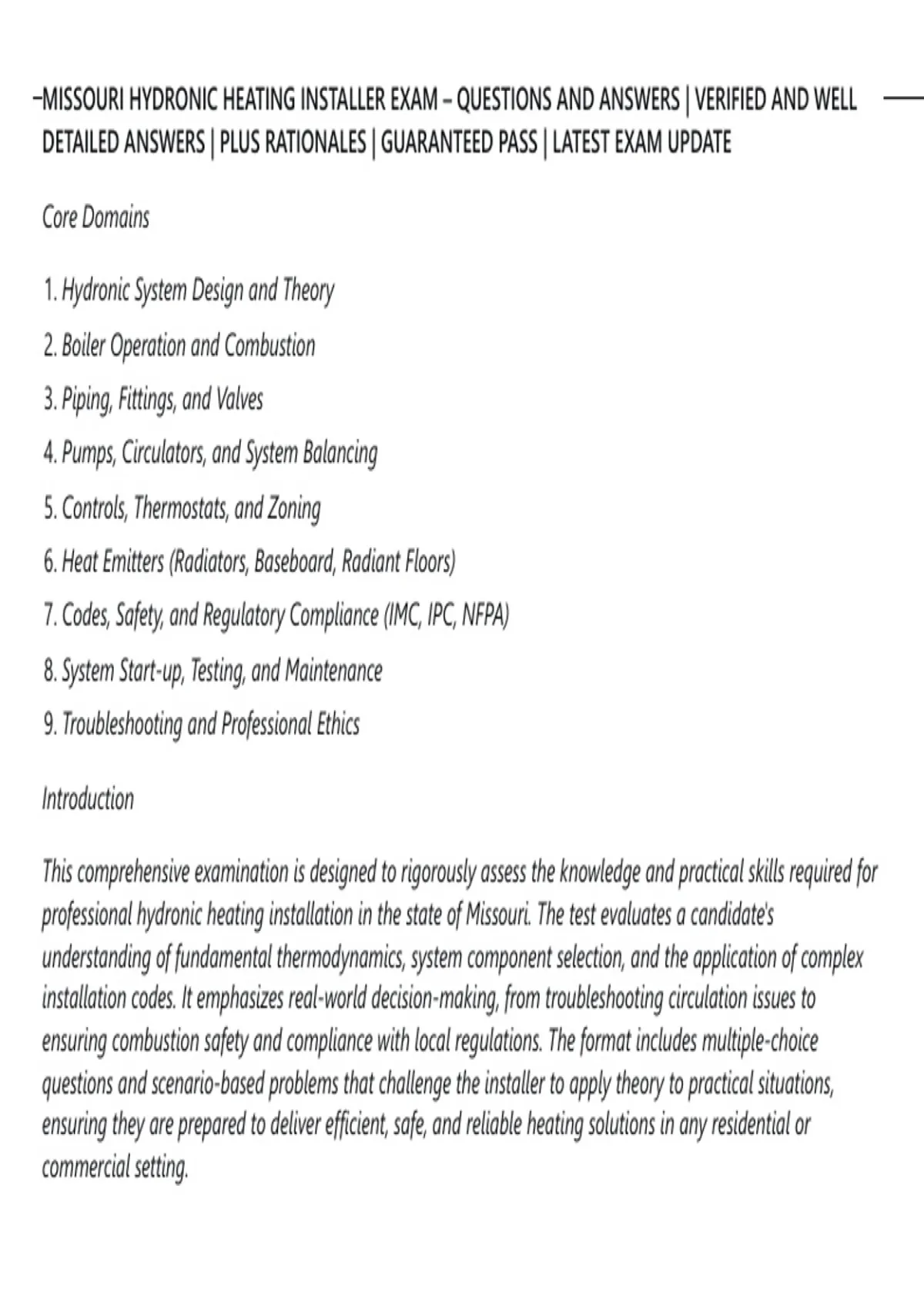

MISSOURI HYDRONIC HEATING INSTALLER EXAM – QUESTIONS AND ANSWERS | VERIFIED AND WELL
DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST EXAM UPDATE
Core Domains
1. Hydronic System Design and Theory
2. Boiler Operation and Combustion
3. Piping, Fittings, and Valves
4. Pumps, Circulators, and System Balancing
5. Controls, Thermostats, and Zoning
6. Heat Emitters (Radiators, Baseboard, Radiant Floors)
7. Codes, Safety, and Regulatory Compliance (IMC, IPC, NFPA)
8. System Start-up, Testing, and Maintenance
9. Troubleshooting and Professional Ethics
Introduction
This comprehensive examination is designed to rigorously assess the knowledge and practical skills required for
professional hydronic heating installation in the state of Missouri. The test evaluates a candidate's
understanding of fundamental thermodynamics, system component selection, and the application of complex
installation codes. It emphasizes real-world decision-making, from troubleshooting circulation issues to
ensuring combustion safety and compliance with local regulations. The format includes multiple-choice
questions and scenario-based problems that challenge the installer to apply theory to practical situations,
ensuring they are prepared to deliver efficient, safe, and reliable heating solutions in any residential or
commercial setting.
,SECTION ONE: QUESTIONS 1 – 100
1. What is the primary purpose of an expansion tank in a closed hydronic heating system?
A. To increase system pressure
B. To provide a reservoir for extra water
C. To absorb the increased volume of water as it heats
D. To trap air and sediment
🟢C
🔴 Explanation: The correct answer is C. As water is heated, its volume increases. The expansion tank
provides a space for this expanded water to go, preventing a dangerous and damaging buildup of pressure
within the closed system. Options A, B, and D describe the functions of other components like a pressure-
reducing valve, a storage tank, or an air separator, respectively.
2. According to the International Mechanical Code (IMC), what is the minimum size for a pressure relief valve
discharge pipe?
A. The same size as the valve outlet
B. One pipe size larger than the valve outlet
C. Two pipe sizes larger than the valve outlet
D. Determined by the boiler manufacturer
🟢A
🔴 Explanation: The correct answer is A. The IMC explicitly states that the discharge pipe from a pressure
relief valve must be the same nominal size as the valve outlet. This ensures unrestricted flow of water or
steam in the event of an overpressure situation. Options B, C, and D are not code-compliant requirements.
,3. Which type of pump is most commonly used in residential hydronic heating systems for its ability to
handle moderate flow and head requirements?
A. Vertical turbine pump
B. Axial flow pump
C. End-suction centrifugal pump
D. Wet-rotor circulator
🟢D
🔴 Explanation: The correct answer is D. Wet-rotor circulators are the industry standard for residential
hydronic applications due to their compact size, quiet operation, and efficiency for the moderate pressures
and flow rates required. Options A, B, and C are typically used in high-flow, high-head, or industrial
applications.
4. What is the function of a flow check valve in a hydronic system?
A. To regulate the temperature of the water
B. To prevent water from flowing backwards in a circuit
C. To balance the flow between different zones
D. To remove air from the water
🟢B
🔴 Explanation: The correct answer is B. A flow check valve is a one-way valve designed to prevent reverse
circulation or gravity flow when a circulator is not running. This is crucial to prevent overheating in zones that
are not calling for heat. Options A, C, and D are functions of other specific valves or devices.
5. When installing a boiler, what is the minimum clearance required from combustible materials as stated in
the manufacturer's instructions?
A. Always 18 inches
, B. Always 24 inches
C. As specified by the manufacturer's listing
D. As specified by the National Electrical Code
🟢C
🔴 Explanation: The correct answer is C. Manufacturer's installation instructions are the primary source for
clearances. These are developed based on the specific boiler's testing and listing (e.g., by UL). The clearance
can vary significantly between models; therefore, options A and B are incorrect blanket statements. Option D
(NEC) is unrelated to fire clearance.
6. In a radiant floor heating system, what is the primary role of the manifold?
A. To supply and return water to the individual loops
B. To heat the water before it enters the floor
C. To filter the water in the system
D. To act as the primary circulator
🟢A
🔴 Explanation: The correct answer is A. The manifold is the central distribution point for a radiant system. It
receives hot water from the boiler and distributes it to the various tubing loops in the floor, then collects the
cooled water returning from those loops and sends it back to the boiler. Options B, C, and D are incorrect
descriptions of the manifold's function.
7. Which of the following is the most critical safety device on a boiler?
A. The system circulator
B. The automatic air vent
C. The pressure/temperature relief valve
D. The expansion tank
