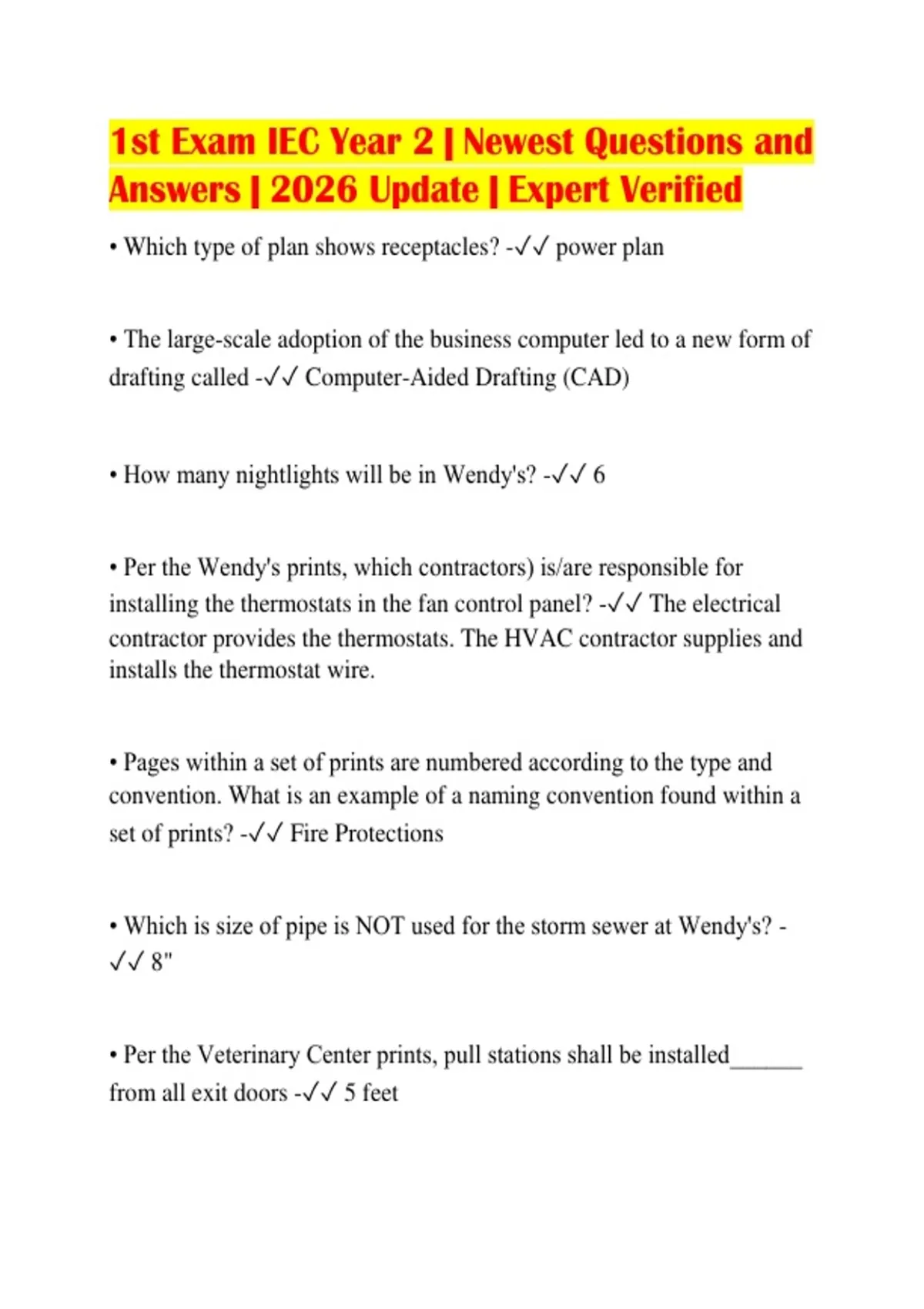

1st Exam IEC Year 2 | Newest Questions and
Answers | 2026 Update | Expert Verified
• Which type of plan shows receptacles? -✓✓ power plan
• The large-scale adoption of the business computer led to a new form of
drafting called -✓✓ Computer-Aided Drafting (CAD)
• How many nightlights will be in Wendy's? -✓✓ 6
• Per the Wendy's prints, which contractors) is/are responsible for
installing the thermostats in the fan control panel? -✓✓ The electrical
contractor provides the thermostats. The HVAC contractor supplies and
installs the thermostat wire.
• Pages within a set of prints are numbered according to the type and
convention. What is an example of a naming convention found within a
set of prints? -✓✓ Fire Protections
• Which is size of pipe is NOT used for the storm sewer at Wendy's? -
✓✓ 8"
• Per the Veterinary Center prints, pull stations shall be installed______
from all exit doors -✓✓ 5 feet
,• Per the Veterinary Center prints, which room does NOT have an
occupancy sensor? -✓✓ Mechanical Room
• Which of the following is the MasterFormat 95® spec division for
electrical? -✓✓ 16
• For the Veterinary Center project, what is the diameter of the pole
bases for the parking lot lighting? -✓✓ 24"
• The footing and column schedules are found on which Veterinary
Center drawing? -✓✓ Foundation Plan S-02
• What kind of notes relate to an entire sheet or set of drawings? -✓✓
General Notes
• Which of the following statements, that exceed code, are possible
specifications of a particular project? -✓✓ All are possible to be found
in the specifications.
• How many rooftop units (RTU's) are at the Veterinary Center? -✓✓ 7
• On Wendy's Restaurant Sheet E-3, the receptacle heights shown are
____ -✓✓ Center of the box
, • For the Wendy's Restaurant project, which of the symbols above
represents a Type C site light? -✓✓ III
• What are the actual dimensions of a nominal 2 x 6? -✓✓ 1 1/2" x 5
1/2"
• What is the scale of the Veterinary Center Topographical Survey? -✓✓
1"= 20'
• What size conductors feed the illuminated sign (from LP2 5tc) near the
entrance to the Veterinary Center? -✓✓ 2 #8, 1 #10
• he wall between Bath and the Drying Room in the Veterinary Center is
a CMU partition wall. The wall will be supported at the top with steel
angle screwed to the deck every -✓✓ 4 feet
• On the Veterinary Center drawings, the F-2 fixtures shown with hash
marks are ____ -✓✓ Unswitched
• Per the Veterinary Center prints, what is the ceiling height in the Cat
Boarding room? -✓✓ 9'
• In the Veterinary Center, which unit provides heat for Vestibule 144? -
✓✓ EWH3
