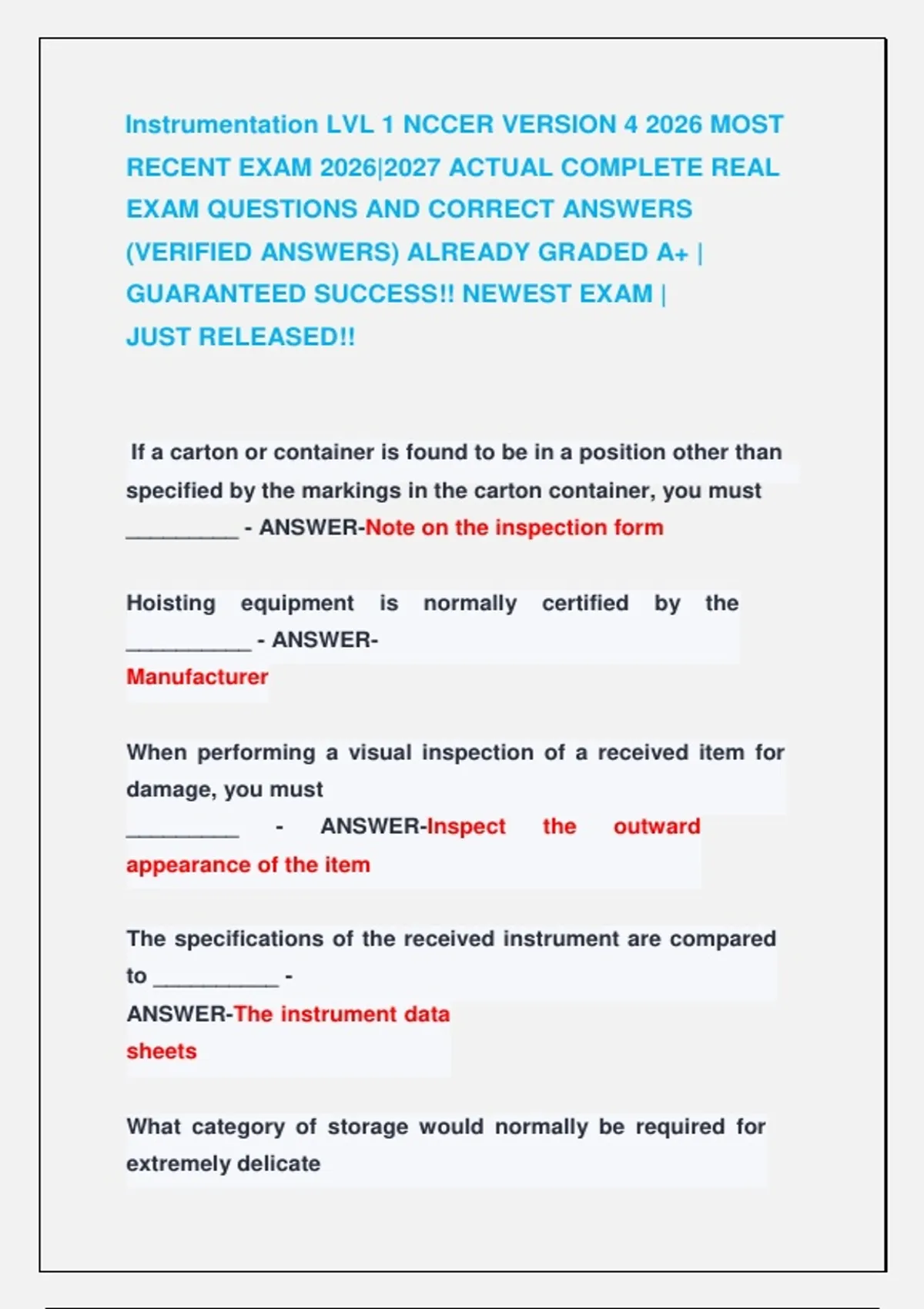

Instrumentation LVL 1 NCCER VERSION 4 2026 MOST
RECENT EXAM 2026|2027 ACTUAL COMPLETE REAL
EXAM QUESTIONS AND CORRECT ANSWERS
(VERIFIED ANSWERS) ALREADY GRADED A+ |
GUARANTEED SUCCESS!! NEWEST EXAM |
JUST RELEASED!!
If a carton or container is found to be in a position other than
specified by the markings in the carton container, you must
_________ - ANSWER-Note on the inspection form
Hoisting equipment is normally certified by the
__________ - ANSWER-
Manufacturer
When performing a visual inspection of a received item for
damage, you must
_________ - ANSWER-Inspect the outward
appearance of the item
The specifications of the received instrument are compared
to __________ -
ANSWER-The instrument data
sheets
What category of storage would normally be required for
extremely delicate
,instruments? - ANSWER-
Level A
What category of storage normally required for a large
bundle of reinforcing
steel is _________ - ANSWER-
Level D
A common characteristic of level B storage is ________ -
ANSWER-Precise
temperature and humidity
control
One example of an item that is typically kept in a level C
storage area is
___________ - ANSWER-
Orifice plate
An orifice plate can be suspended by its calibrated opening
while in storage. T
or F - ANSWER-
False
Information pertaining to the National Electrical Code®
(NEC®) hazardous
location classification for an instrument to be installed on a
project may be
found on the
____________
,Mod3Bk2 - ANSWER-Instrument data sheet
The symbol shown in Review Question Figure 1
represents a(n) _____.
|
//// - ANSWER-Chassis
ground
What type of switch is represented by the symbol in Review
Question Figure 2 ?
- ANSWER-SPDT Double
break
Which type of diagram shows the interconnection of the
components in a system, but not necessarily the actual
connections of the conductors or terminals? - ANSWER-One-
line
The lines between the blocks on a block diagram represent the
___________ -
ANSWER-Connection between
components
Which of the following is a form of wiring diagram ? -
ANSWER-Electrical
Schematic
, A cable tray listed size of 450 x 150 means the dimensions
are _________
(Unit of measurement) - ANSWER-450 mm
x 150 mm
The letters within the bubble on a bubble diagram (P&ID)
represent the type of
________ - ANSWER-
Process
On a bubble diagram, a double horizontal line within a bubble
indicates that the
instrument is _________ - ANSWER-At an
auxiliary location
Instruments that are usually located near the point of
measurement or near a
final control element are referred to as ____________ -
ANSWER-Field
Mounted
Which of the following instrumentation documents can be used
by the installation contractor to help determine the percentage
of completion of the total package ? - ANSWER-Field checklist
In instrumentation applications that incorporate a
programmable logic controller,
the sequence of operation is often shown on a series of
______________ -
