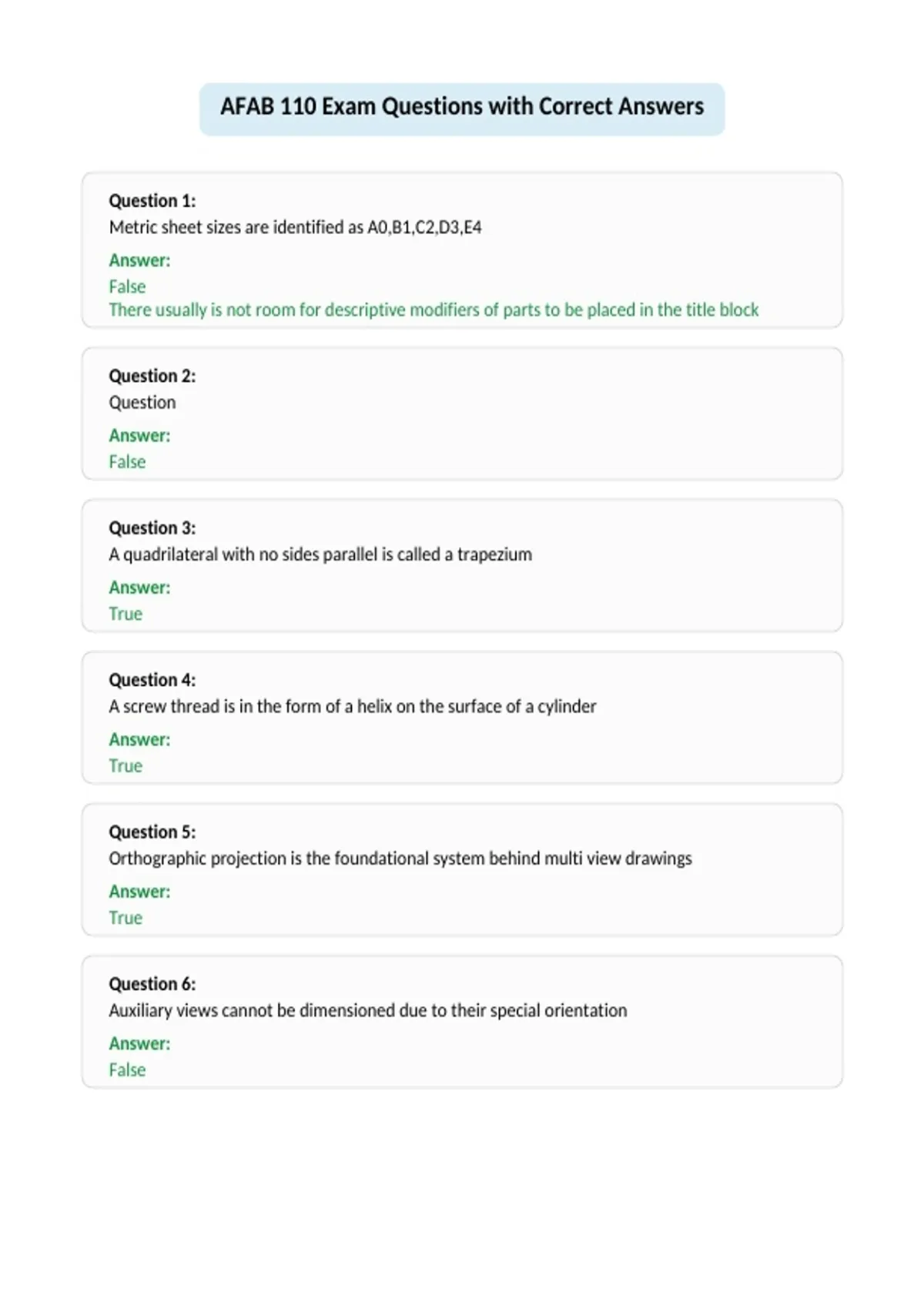

Question 1:
Metric sheet sizes are identified as A0,B1,C2,D3,E4
Answer:
False
There usually is not room for descriptive modifiers of parts to be placed in the title block


Question 2:
Question
Answer:
False


Question 3:
A quadrilateral with no sides parallel is called a trapezium
Answer:
True


Question 4:
A screw thread is in the form of a helix on the surface of a cylinder
Answer:
True


Question 5:
Orthographic projection is the foundational system behind multi view drawings
Answer:
True


Question 6:
Auxiliary views cannot be dimensioned due to their special orientation
Answer:
False

, Question 7:
All American thread forms are standardized in one ASME document
Answer:
FalseFalse
False
False


Question 8:
The lead of a triple thread is 1.5 times the pitch
Answer:
False


Question 9:
Common way of creating copies involved a light process and a special print paper coated with
blank..compound
Answer:
Diazo


Question 10:
Electronic print or drawings that is basically composed of tiny pixels or dots not vectors is
considered a
Answer:
Easter image


Question 11:
Voluntary guideline that establishes the method of representation for prints as well as other
engineering practices is a
Answer:
Standard


Question 12:
Identify the line below that is to be drawn thick
Answer:
Cutting plane line
