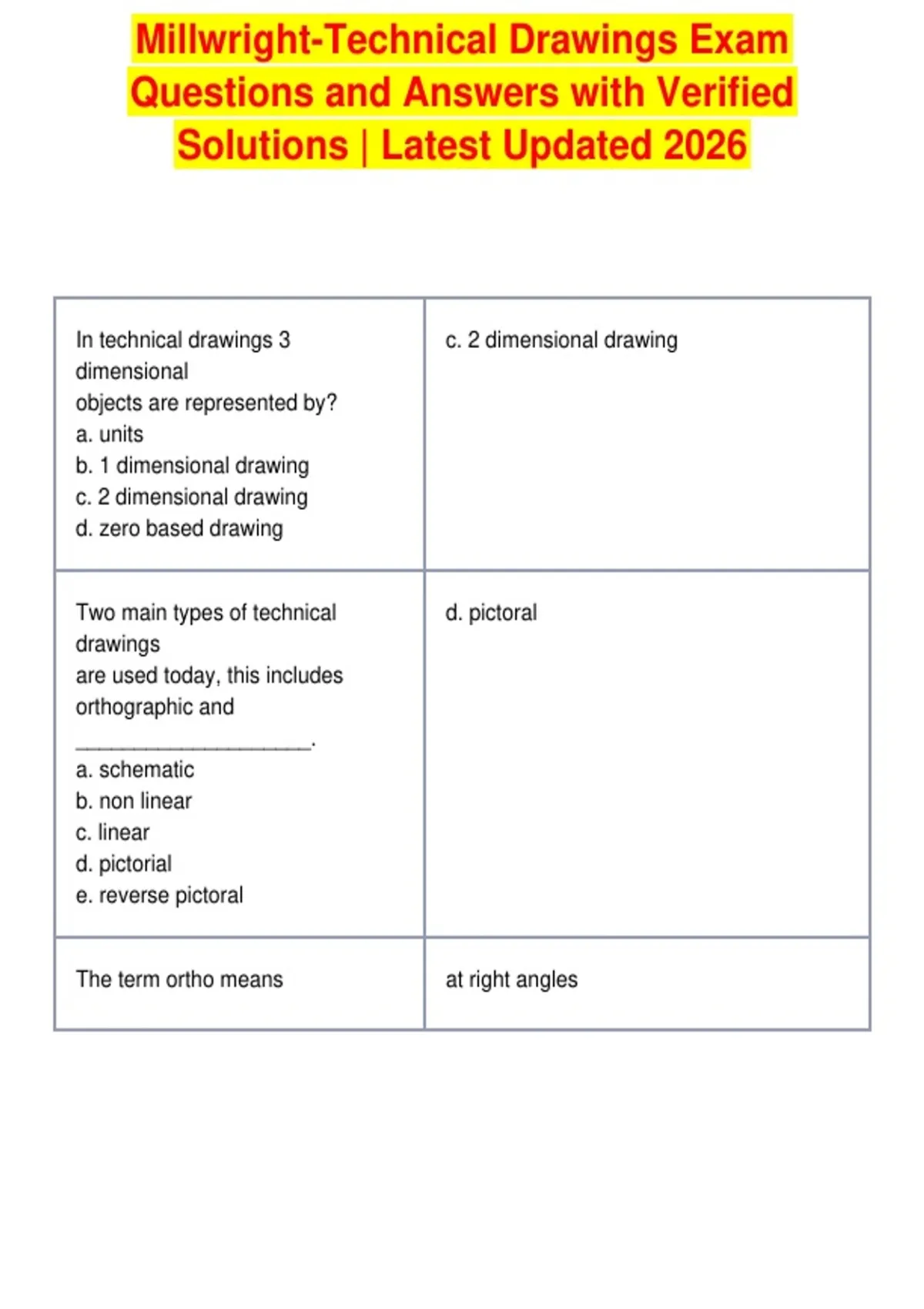

Millwright-Technical Drawings Exam
Questions and Answers with Verified
Solutions | Latest Updated 2026

In technical drawings 3 c. 2 dimensional drawing
dimensional
objects are represented by?
a. units
b. 1 dimensional drawing
c. 2 dimensional drawing
d. zero based drawing

Two main types of technical d. pictoral
drawings
are used today, this includes
orthographic and
____________________.
a. schematic
b. non linear
c. linear
d. pictorial
e. reverse pictoral

The term ortho means at right angles

, There are 2 types of projection in e. first and third angle
orthographic drawings, they are?
a. first and second angle
b. third and forth angle
c. first and fifth angle
d. second and third angle
e. first and third angle

First angle projection is used in c. north america
europe while third angle
projecction
is used in?
a. asia
b. north america and asia
c. north america
d. canada

It is necessary to determine which d. front
view of an object provides the
most
information about its shape,
typically
the view used is?
a. side
b. plan
c. angled
d. front
e. pictorial
