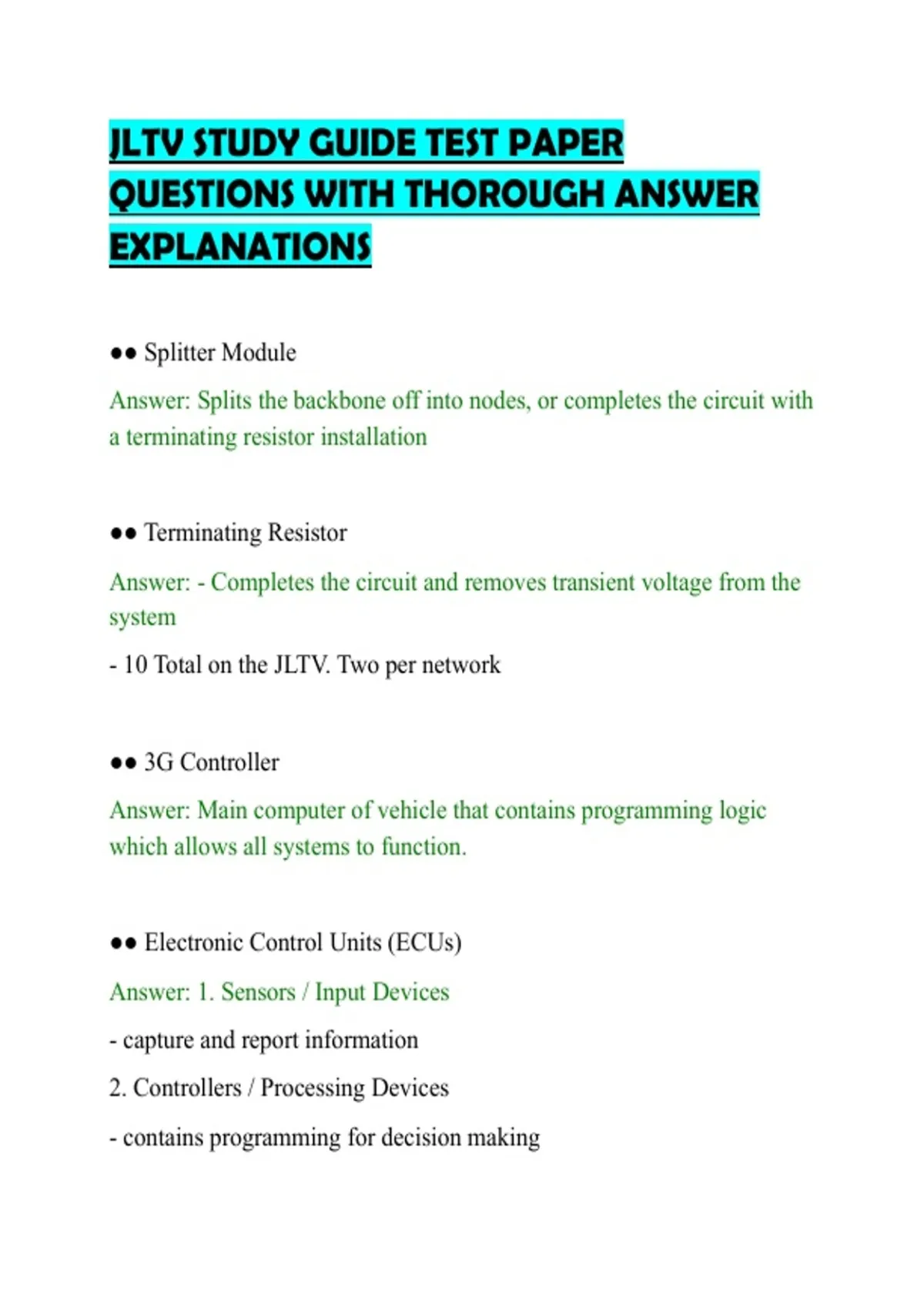

JLTV STUDY GUIDE TEST PAPER
QUESTIONS WITH THOROUGH ANSWER
EXPLANATIONS
●● Splitter Module
Answer: Splits the backbone off into nodes, or completes the circuit with
a terminating resistor installation
●● Terminating Resistor
Answer: - Completes the circuit and removes transient voltage from the
system
- 10 Total on the JLTV. Two per network
●● 3G Controller
Answer: Main computer of vehicle that contains programming logic
which allows all systems to function.
●● Electronic Control Units (ECUs)
Answer: 1. Sensors / Input Devices
- capture and report information
2. Controllers / Processing Devices
- contains programming for decision making
