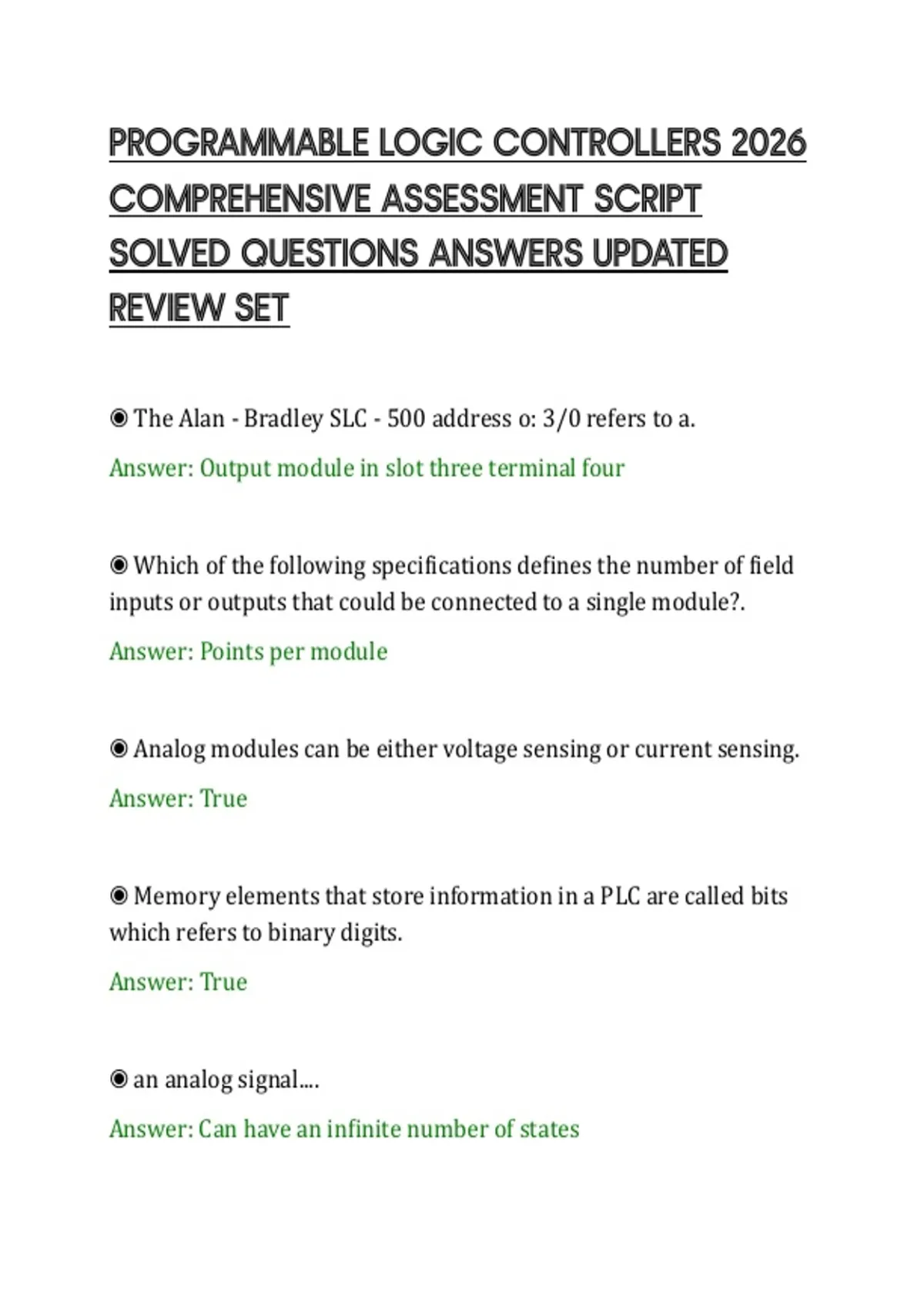

PROGRAMMABLE LOGIC CONTROLLERS 2026
COMPREHENSIVE ASSESSMENT SCRIPT
SOLVED QUESTIONS ANSWERS UPDATED
REVIEW SET
◉ The Alan - Bradley SLC - 500 address o: 3/0 refers to a.
Answer: Output module in slot three terminal four
◉ Which of the following specifications defines the number of field
inputs or outputs that could be connected to a single module?.
Answer: Points per module
◉ Analog modules can be either voltage sensing or current sensing.
Answer: True
◉ Memory elements that store information in a PLC are called bits
which refers to binary digits.
Answer: True
◉ an analog signal....
Answer: Can have an infinite number of states
,◉ Typically a word in a PLC is.
Answer: 16 bits
◉ The electrical isolation of an analog I/O module specifies how
accurately an analog value can be represented digitally.
Answer: False... The resolution of an analog I/O module specifies
how accurately an analog value can be represented digitally
◉ The location of a specific input or output feel device is identified
by the processor by means of its function.
Answer: False... The location of a specific input or output field device
is identified by the processor by means of its address
◉ An analog module:.
Answer: Uses A/D and D/A converters
◉ A push button input field device would most likely be used to
provide the signal to an analog input module.
Answer: False... A pushbutton input field device would most likely be
used to provide the signal to a discrete input module
◉ A unipolar module can except an input signal ranging from -5 V to
+5 V.
, Answer: False... A unipolar module can except an input signal that
varies in the positive direction only
◉ The selector switches on our workstations are close when the
switch is turned to the right.
Answer: True
◉ What is the identifying number in the model number that
established the modules are compatible with the Allen - Bradley SLC
- 500 family.
Answer: 1746
◉ How much memory comes with the processors in the
workstations in our lab.
Answer: 16 K
◉ What is the file extension for a RSLogix project.
Answer: .rss
◉ What power supply is connected to the normally open push
buttons on the workstation.
Answer: 24 VAC
