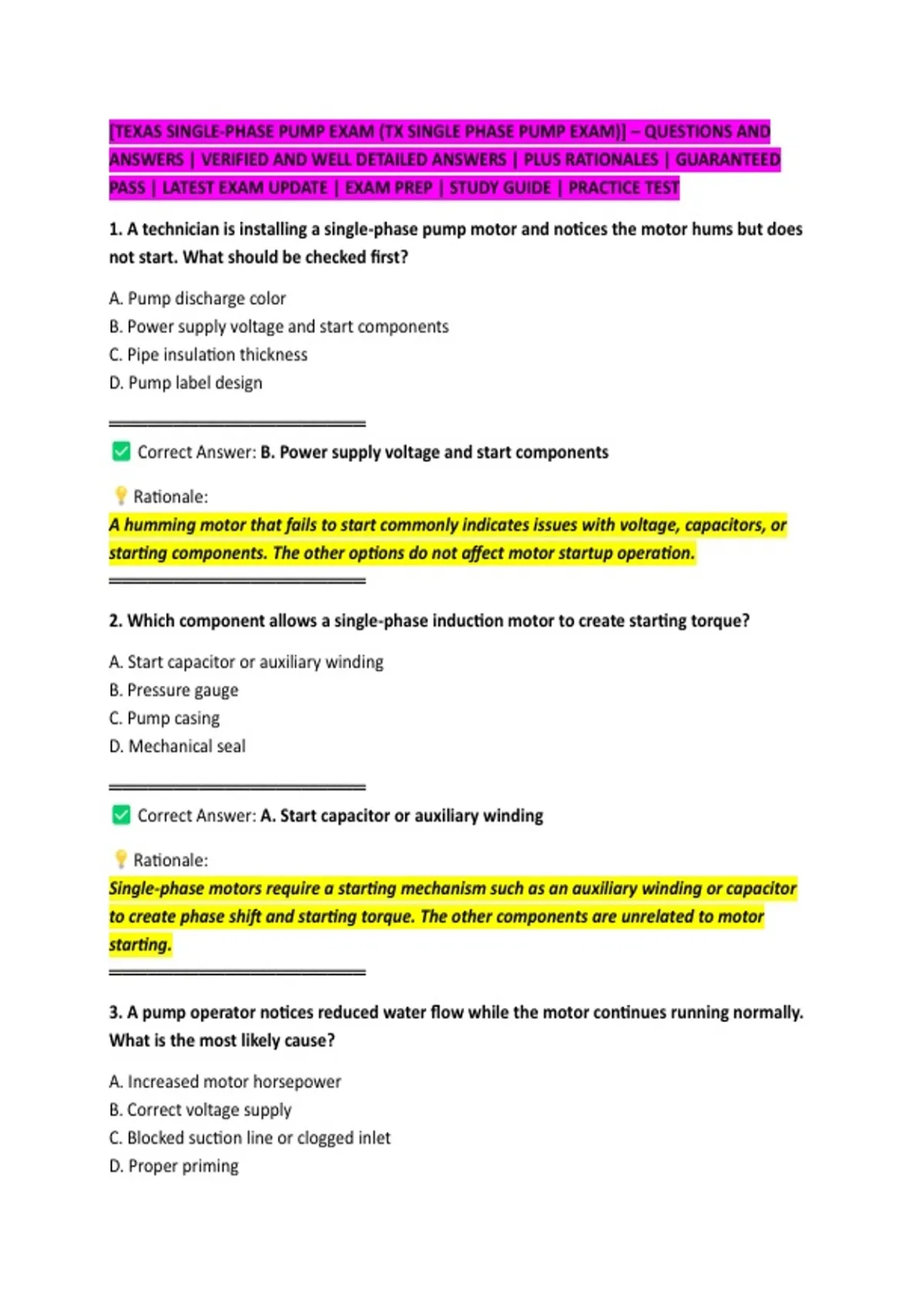

[TEXAS SINGLE-PHASE PUMP EXAM (TX SINGLE PHASE PUMP EXAM)] – QUESTIONS AND
ANSWERS | VERIFIED AND WELL DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED
PASS | LATEST EXAM UPDATE | EXAM PREP | STUDY GUIDE | PRACTICE TEST
1. A technician is installing a single-phase pump motor and notices the motor hums but does
not start. What should be checked first?
A. Pump discharge color
B. Power supply voltage and start components
C. Pipe insulation thickness
D. Pump label design
════════════════════
Correct Answer: B. Power supply voltage and start components
Rationale:
A humming motor that fails to start commonly indicates issues with voltage, capacitors, or
starting components. The other options do not affect motor startup operation.
════════════════════
2. Which component allows a single-phase induction motor to create starting torque?
A. Start capacitor or auxiliary winding
B. Pressure gauge
C. Pump casing
D. Mechanical seal
════════════════════
Correct Answer: A. Start capacitor or auxiliary winding
Rationale:
Single-phase motors require a starting mechanism such as an auxiliary winding or capacitor
to create phase shift and starting torque. The other components are unrelated to motor
starting.
════════════════════
3. A pump operator notices reduced water flow while the motor continues running normally.
What is the most likely cause?
A. Increased motor horsepower
B. Correct voltage supply
C. Blocked suction line or clogged inlet
D. Proper priming
,════════════════════
Correct Answer: C. Blocked suction line or clogged inlet
Rationale:
Restricted suction reduces available water entering the pump, causing poor flow. Normal
voltage and horsepower do not explain reduced discharge.
════════════════════
4. Before servicing a single-phase pump, the technician should first:
A. Increase pump pressure
B. Remove the motor cover
C. Adjust the pressure switch
D. Disconnect and verify electrical power is off
════════════════════
Correct Answer: D. Disconnect and verify electrical power is off
Rationale:
Lockout and verification of electrical isolation are essential safety practices before
maintenance. Adjustments or disassembly before isolation create hazards.
════════════════════
5. What is the primary purpose of a pump check valve?
A. Prevent reverse flow
B. Increase motor speed
C. Reduce electrical current
D. Lubricate bearings
════════════════════
Correct Answer: A. Prevent reverse flow
Rationale:
A check valve maintains system pressure and prevents water from flowing backward when
the pump stops.
════════════════════
6. A pump repeatedly loses prime after shutdown. Which condition should be investigated?
A. Motor color
B. Air leaks in the suction piping
,C. Discharge pipe material only
D. Pump mounting bolts
════════════════════
Correct Answer: B. Air leaks in the suction piping
Rationale:
Air entering the suction side can prevent the pump from maintaining prime. Mechanical
appearance does not affect hydraulic sealing.
════════════════════
7. Which measurement is used to determine electrical pressure in a circuit?
A. Resistance
B. Frequency
C. Voltage
D. Flow rate
════════════════════
Correct Answer: C. Voltage
Rationale:
Voltage is the electrical potential difference that pushes current through a circuit.
════════════════════
8. A technician replaces a pump capacitor with one having an incorrect rating. What could
occur?
A. Improved efficiency always
B. No possible effect
C. Increased water quality
D. Motor damage or improper operation
════════════════════
Correct Answer: D. Motor damage or improper operation
Rationale:
Incorrect capacitor ratings can affect motor starting and running performance and may
damage components.
════════════════════
9. The best method to protect a pump motor from overload damage is to use:
, A. Motor overload protection
B. Larger discharge pipe only
C. Additional paint coating
D. Higher water temperature
════════════════════
Correct Answer: A. Motor overload protection
Rationale:
Overload protection disconnects the motor when excessive current threatens equipment
damage.
════════════════════
10. Cavitation in a pump is commonly caused by:
A. Excessive lubrication
B. Low suction pressure
C. Correct water supply
D. Proper installation
════════════════════
Correct Answer: B. Low suction pressure
Rationale:
Low suction pressure can cause vapor bubbles that collapse inside the pump, damaging
components and reducing performance.
════════════════════
11. When selecting a replacement pump, the technician should verify:
A. Paint color
B. Manufacturer logo size
C. Required flow and pressure ratings
D. Shipping weight only
════════════════════
Correct Answer: C. Required flow and pressure ratings
Rationale:
Pump selection must match system hydraulic requirements to operate correctly.
════════════════════
12. A pressure switch on a water pump controls:
