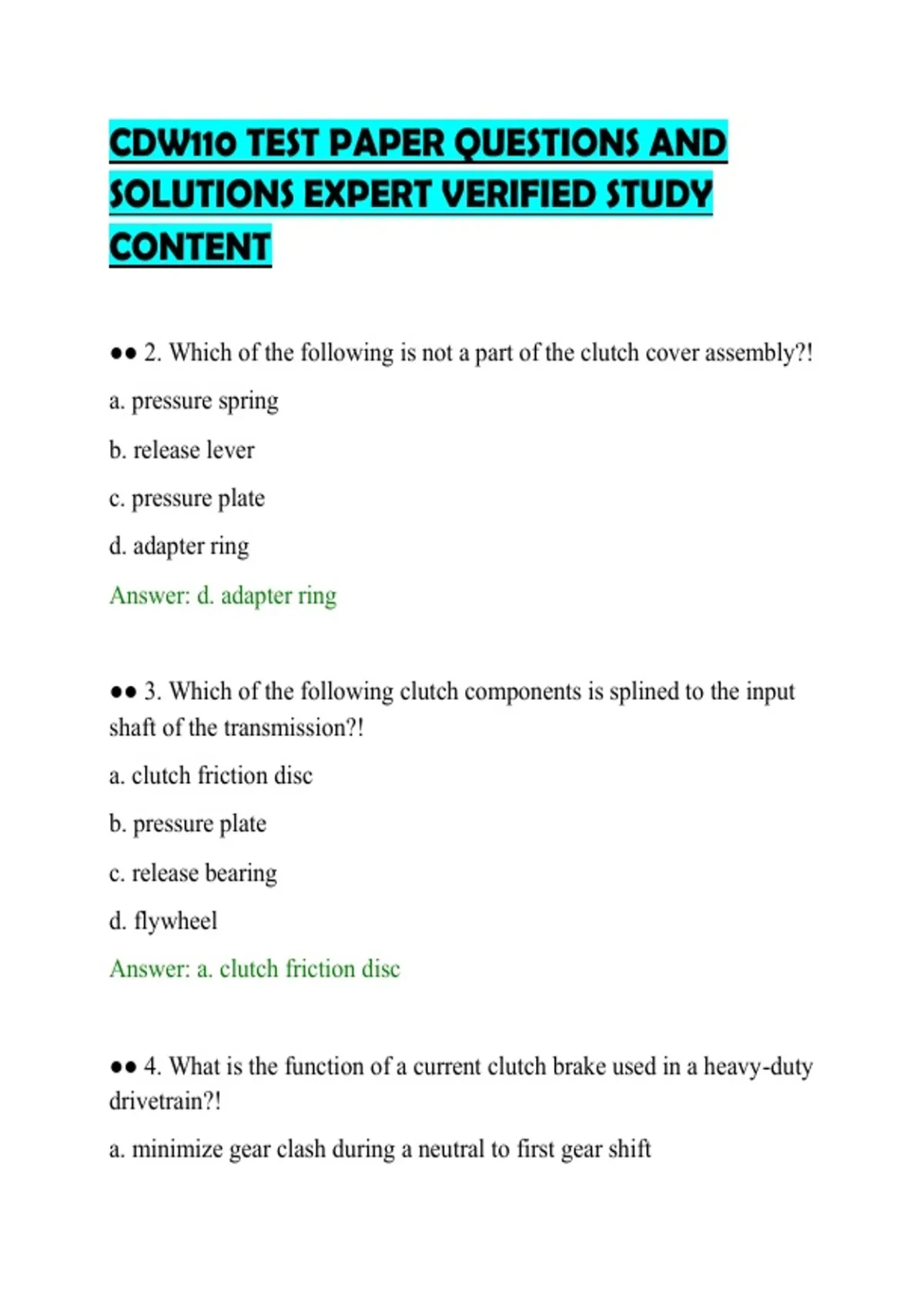

CDW110 TEST PAPER QUESTIONS AND
SOLUTIONS EXPERT VERIFIED STUDY
CONTENT
●● 2. Which of the following is not a part of the clutch cover assembly?!
a. pressure spring
b. release lever
c. pressure plate
d. adapter ring
Answer: d. adapter ring
●● 3. Which of the following clutch components is splined to the input
shaft of the transmission?!
a. clutch friction disc
b. pressure plate
c. release bearing
d. flywheel
Answer: a. clutch friction disc
●● 4. What is the function of a current clutch brake used in a heavy-duty
drivetrain?!
a. minimize gear clash during a neutral to first gear shift
,b. minimize gear clash during downshifts to all ratios
c. minimize gear clash during upshifts to all ratios
d. none of the above
Answer: a. minimize gear clash during a neutral to first gear shift
●● 5. Which of the following driving procedures will result in clutch or
driveline damage?!
a. driving with a foot on the clutch pedal
b. using the clutch as a brake to hold the truck on a hill and incline
c. coasting downhill with the transmission in gear and the clutch
disengaged
d. all of the above
Answer: d. all of the above
●● 6. Which of the following could be a cause of poor clutch release?!
a. damaged drive pins
b. worn clutch linkage
c. worn release bearing
d. all of the above
Answer: d. all of the above
●● 7. How often should a clutch be inspected and lubricated?!
a. every month
,b. every 6,000 to 10,000 miles
c. any time the chassis is lubricated
d. all of the above
Answer: d. all of the above
●● 8. When adjusting clutch linkage, Technician A says that pedal free
travel should be about 1½ to 2
inches. Technician B says that free travel should be more than ½ inch
measured at the release
forks. Who is correct?!
a. Technician A only
b. Technician B only
c. both A and B
d. neither A nor B
Answer: a. Technician A only
●● 9. When servicing clutches, Technician A always wears an OSHA-
approved particulate mask.
Technician B uses compressed air to clean off clutch components before
removing a clutch
pack. Who is correct?!
a. Technician A only
b. Technician B only
, c. both A and B
d. neither A nor B
Answer: a. Technician A only
●● 10. In the procedure required to perform a clutch replacement on a
truck, which of the following
steps should be performed first?!
a. Unbolt the clutch from the flywheel.
b. Remove the clutch brake.
c. Install a clutch alignment tool through the release bearing.
d. Unbolt the transmission bell housing from the flywheel.
Answer: a. Unbolt the clutch from the flywheel
●● 11. On which of the following types of flywheels would the center
intermediate plate be driven by
drive pins?!
a. flat flywheel
b. pot flywheel
c. torque converter
d. all of the above
Answer: b. pot flywheel
