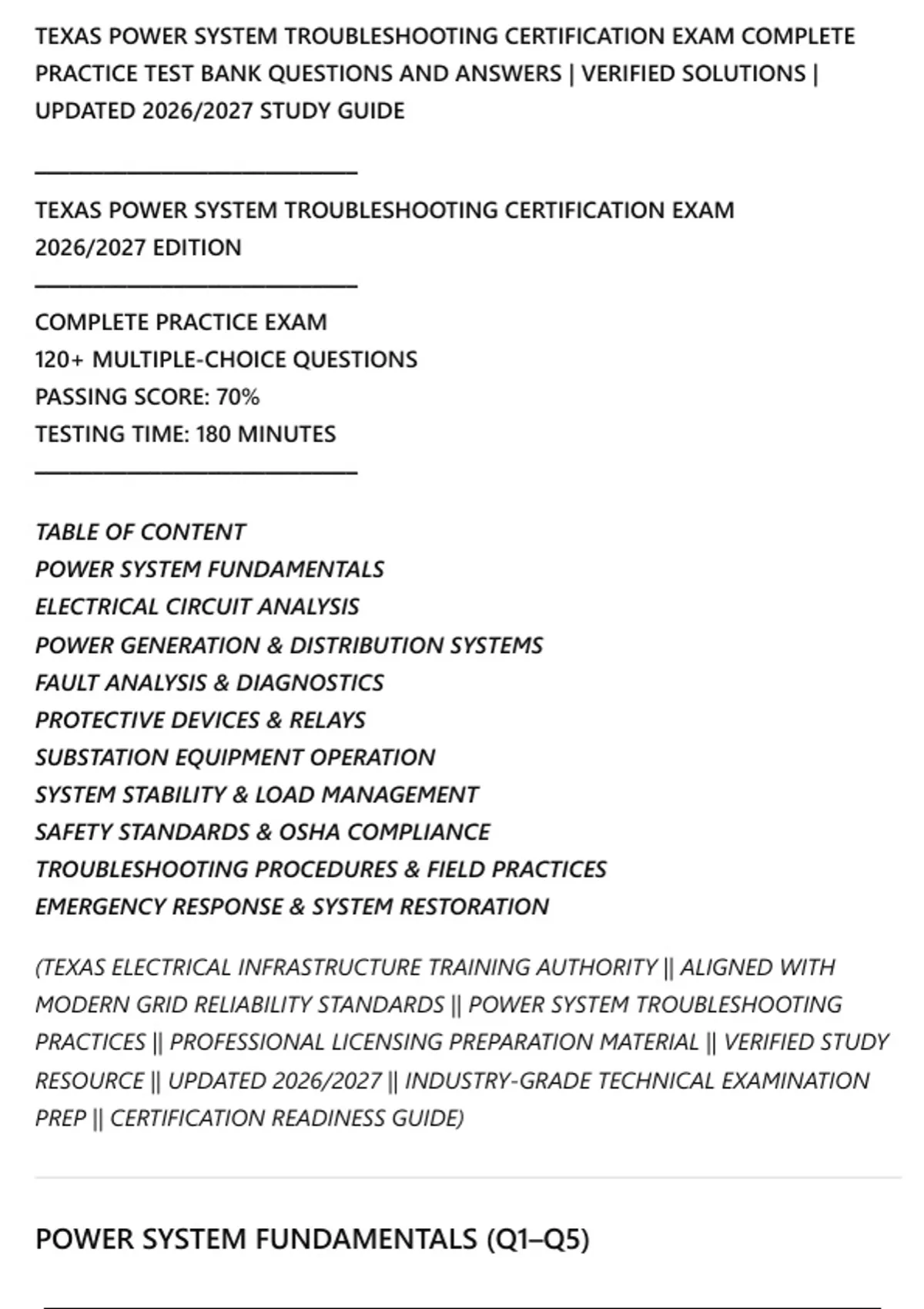

TEXAS POWER SYSTEM TROUBLESHOOTING CERTIFICATION EXAM COMPLETE
PRACTICE TEST BANK QUESTIONS AND ANSWERS | VERIFIED SOLUTIONS |
UPDATED 2026/2027 STUDY GUIDE

━━━━━━━━━━━━━━━━━━━━━━━━━━━━
TEXAS POWER SYSTEM TROUBLESHOOTING CERTIFICATION EXAM
2026/2027 EDITION
━━━━━━━━━━━━━━━━━━━━━━━━━━━━
COMPLETE PRACTICE EXAM
120+ MULTIPLE-CHOICE QUESTIONS
PASSING SCORE: 70%
TESTING TIME: 180 MINUTES
━━━━━━━━━━━━━━━━━━━━━━━━━━━━

TABLE OF CONTENT
POWER SYSTEM FUNDAMENTALS
ELECTRICAL CIRCUIT ANALYSIS
POWER GENERATION & DISTRIBUTION SYSTEMS
FAULT ANALYSIS & DIAGNOSTICS
PROTECTIVE DEVICES & RELAYS
SUBSTATION EQUIPMENT OPERATION
SYSTEM STABILITY & LOAD MANAGEMENT
SAFETY STANDARDS & OSHA COMPLIANCE
TROUBLESHOOTING PROCEDURES & FIELD PRACTICES
EMERGENCY RESPONSE & SYSTEM RESTORATION

(TEXAS ELECTRICAL INFRASTRUCTURE TRAINING AUTHORITY || ALIGNED WITH
MODERN GRID RELIABILITY STANDARDS || POWER SYSTEM TROUBLESHOOTING
PRACTICES || PROFESSIONAL LICENSING PREPARATION MATERIAL || VERIFIED STUDY
RESOURCE || UPDATED 2026/2027 || INDUSTRY-GRADE TECHNICAL EXAMINATION
PREP || CERTIFICATION READINESS GUIDE)




POWER SYSTEM FUNDAMENTALS (Q1–Q5)

,Q1. A technician observes unstable voltage fluctuations in a
regional distribution feeder during peak load hours. Which
underlying system behavior is MOST likely responsible?
A. Excessive conductor insulation resistance
B. Reactive power imbalance across the feeder
C. Incorrect transformer core lamination thickness
D. Overcompensated grounding electrode system
Correct Answer: 🔴 B. Reactive power imbalance across the feeder
Explanation: Voltage instability in distribution systems is most
commonly caused by reactive power mismatches, especially under
heavy load conditions. Reactive power demand increases voltage
drops along feeders. Option A affects leakage but not dynamic
voltage swings. Option C is a design issue, not operational
fluctuation. Option D impacts fault safety, not load voltage
stability.

Q2. A transformer shows elevated operating temperature despite
normal load current. Which condition is MOST likely?
A. Core saturation due to harmonic distortion
B. Reduced conductor cross-sectional area
C. Open secondary winding
D. Excessively low ambient humidity
Correct Answer: 🔴 A. Core saturation due to harmonic distortion
Explanation: Harmonic currents cause additional core losses,
leading to overheating even when RMS current appears normal.
Option B would cause current increase, not isolated heating.
Option C would stop load transfer. Option D has negligible
thermal effect.

Q3. During a field inspection, engineers detect voltage drop
exceeding acceptable limits at the end of a radial feeder. What is
the BEST corrective action?
A. Increase feeder resistance

,B. Install capacitor banks for reactive compensation
C. Reduce transformer impedance artificially
D. Disconnect downstream loads
Correct Answer: 🔴 B. Install capacitor banks for reactive
compensation
Explanation: Capacitor banks improve power factor and reduce
reactive current, minimizing voltage drop. Option A worsens
performance. Option C is not feasible operationally. Option D is a
temporary shutdown, not a solution.

Q4. A generator connected to the grid begins to oscillate in
output power following load changes. What is the primary cause?
A. Governor droop misconfiguration
B. Excessive stator insulation resistance
C. Low ambient cooling airflow
D. Incorrect grounding rod depth
Correct Answer: 🔴 A. Governor droop misconfiguration
Explanation: Governor settings control frequency and load sharing.
Improper droop leads to oscillatory power output. Other options
relate to insulation, cooling, or grounding, not dynamic power
response.

Q5. A substation breaker trips intermittently without clear fault
indicators. Which diagnostic step is MOST appropriate?
A. Increase system voltage temporarily
B. Inspect relay coordination settings
C. Reduce transformer oil level
D. Disable grounding protection system
Correct Answer: 🔴 B. Inspect relay coordination settings
Explanation: Incorrect relay coordination can cause nuisance
tripping without actual faults. Other options either worsen safety
or are unrelated to protection logic.

, ELECTRICAL CIRCUIT ANALYSIS (Q6–Q10)

Q6. A technician measures unexpectedly high impedance in a
transmission line section under normal load. What is the MOST
probable cause?
A. Partial conductor strand breakage
B. Overexcited transformer tap changer
C. Excessive system grounding
D. Increased frequency stability margin
Correct Answer: 🔴 A. Partial conductor strand breakage
Explanation: Broken strands increase resistance and impedance.
Transformer and grounding conditions do not directly affect line
impedance measurements in this manner.

Q7. In a three-phase system, one phase shows consistently lower
voltage under balanced load. What is the MOST likely issue?
A. Phase imbalance due to loose connection
B. Excess capacitor compensation
C. Harmonic elimination filter failure
D. High system frequency drift
Correct Answer: 🔴 A. Phase imbalance due to loose connection
Explanation: Loose or corroded connections cause uneven voltage
distribution. Other options would affect all phases or system-wide
behavior.

Q8. A distribution panel experiences overheating at neutral
busbars. What is the MOST likely root cause?
A. Presence of triplen harmonics
B. Low system load factor
C. High insulation resistance
D. Excessively long feeder cables
Correct Answer: 🔴 A. Presence of triplen harmonics
Explanation: Triplen harmonics accumulate in the neutral
