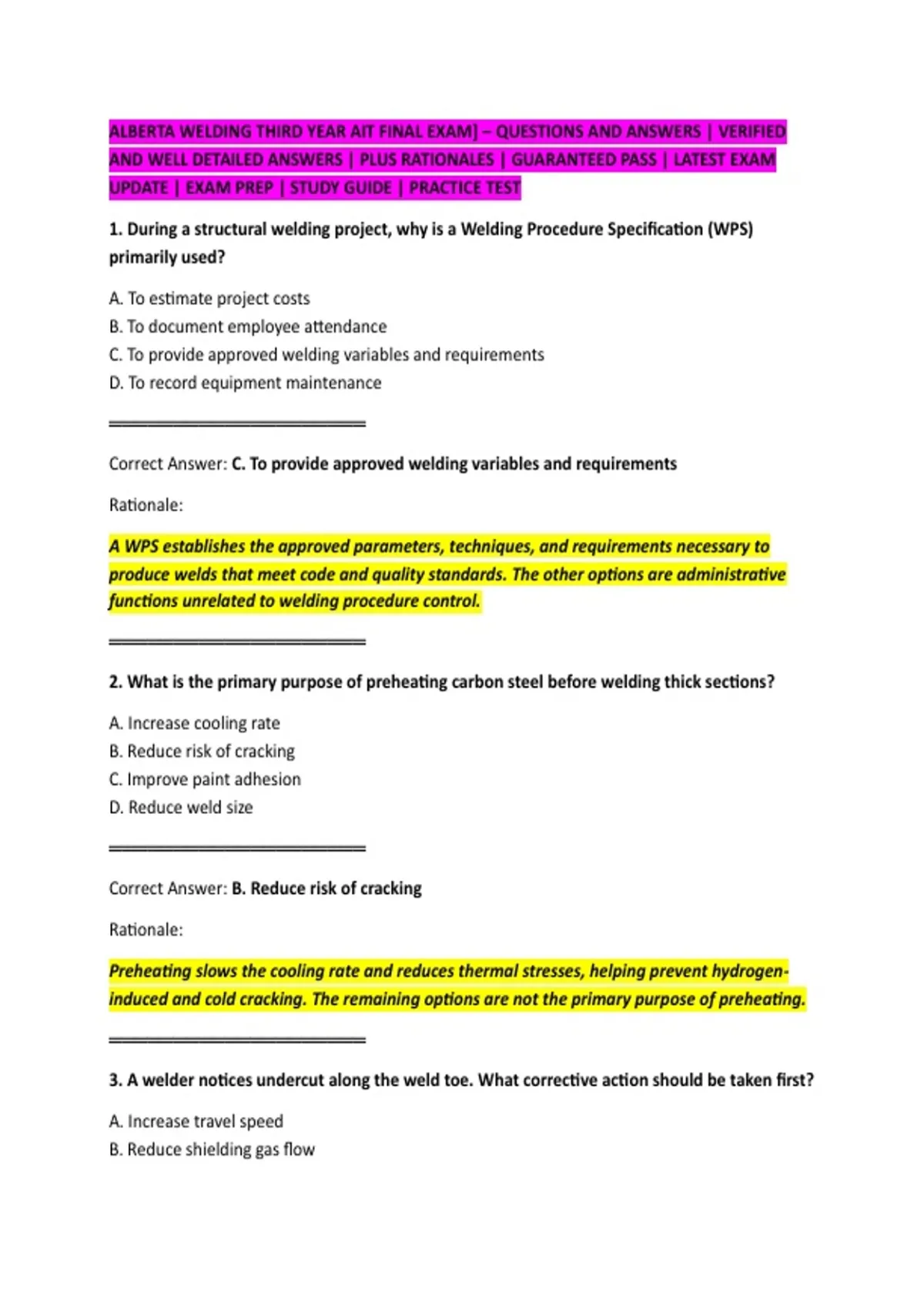

ALBERTA WELDING THIRD YEAR AIT FINAL EXAM] – QUESTIONS AND ANSWERS | VERIFIED
AND WELL DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST EXAM
UPDATE | EXAM PREP | STUDY GUIDE | PRACTICE TEST
1. During a structural welding project, why is a Welding Procedure Specification (WPS)
primarily used?
A. To estimate project costs
B. To document employee attendance
C. To provide approved welding variables and requirements
D. To record equipment maintenance
════════════════════
Correct Answer: C. To provide approved welding variables and requirements
Rationale:
A WPS establishes the approved parameters, techniques, and requirements necessary to
produce welds that meet code and quality standards. The other options are administrative
functions unrelated to welding procedure control.
════════════════════
2. What is the primary purpose of preheating carbon steel before welding thick sections?
A. Increase cooling rate
B. Reduce risk of cracking
C. Improve paint adhesion
D. Reduce weld size
════════════════════
Correct Answer: B. Reduce risk of cracking
Rationale:
Preheating slows the cooling rate and reduces thermal stresses, helping prevent hydrogen-
induced and cold cracking. The remaining options are not the primary purpose of preheating.
════════════════════
3. A welder notices undercut along the weld toe. What corrective action should be taken first?
A. Increase travel speed
B. Reduce shielding gas flow
,C. Increase electrode diameter
D. Reduce excessive amperage
════════════════════
Correct Answer: D. Reduce excessive amperage
Rationale:
Undercut commonly results from excessive heat input and improper technique. Lowering
amperage can reduce erosion of the base metal and improve weld profile.
════════════════════
4. Which destructive test evaluates a weld’s ability to withstand pulling forces?
A. Bend test
B. Macroetch test
C. Tensile test
D. Fillet break test
════════════════════
Correct Answer: C. Tensile test
Rationale:
A tensile test measures the weld's resistance to tensile loading and determines ultimate
strength. Other tests evaluate different weld characteristics.
════════════════════
5. When welding in the overhead position, what adjustment is generally recommended?
A. Increase weld puddle size
B. Use slower travel speed
C. Use slightly lower heat input
D. Increase electrode angle dramatically
════════════════════
Correct Answer: C. Use slightly lower heat input
Rationale:
Lower heat input helps maintain control of the molten weld pool and reduces the risk of weld
metal sagging or falling.
,════════════════════
6. Which discontinuity is most commonly associated with inadequate shielding gas coverage?
A. Porosity
B. Lamination
C. Slag inclusion
D. Undercut
════════════════════
Correct Answer: A. Porosity
Rationale:
Insufficient shielding allows atmospheric contamination to enter the weld pool, creating gas
pockets known as porosity.
════════════════════
7. What is the primary function of flux in Shielded Metal Arc Welding (SMAW)?
A. Increase base metal thickness
B. Produce shielding and slag protection
C. Improve grinding efficiency
D. Reduce joint preparation requirements
════════════════════
Correct Answer: B. Produce shielding and slag protection
Rationale:
Flux generates shielding gases and slag that protect molten weld metal from atmospheric
contamination during welding.
════════════════════
8. Which electrode classification is commonly used for low-hydrogen applications?
A. E6010
B. E6011
C. E7014
D. E7018
════════════════════
Correct Answer: D. E7018
, Rationale:
E7018 electrodes are low-hydrogen electrodes widely used for structural applications
requiring toughness and crack resistance.
════════════════════
9. A welder discovers a root opening larger than specified. What is the best action?
A. Ignore it and continue
B. Notify supervision and correct the fit-up
C. Increase voltage significantly
D. Use a smaller electrode without approval
════════════════════
Correct Answer: B. Notify supervision and correct the fit-up
Rationale:
Fit-up deviations can affect weld quality and code compliance. Correcting the joint before
welding is the proper course of action.
════════════════════
10. What does “heat-affected zone” refer to?
A. Weld reinforcement only
B. Slag-covered area
C. Base metal unaffected by welding
D. Base metal altered by welding heat
════════════════════
Correct Answer: D. Base metal altered by welding heat
Rationale:
The heat-affected zone experiences metallurgical changes from welding heat without actually
melting.
════════════════════
11. Which NDT method is most effective for detecting surface-breaking cracks in
ferromagnetic materials?
A. Visual inspection
B. Magnetic particle testing
