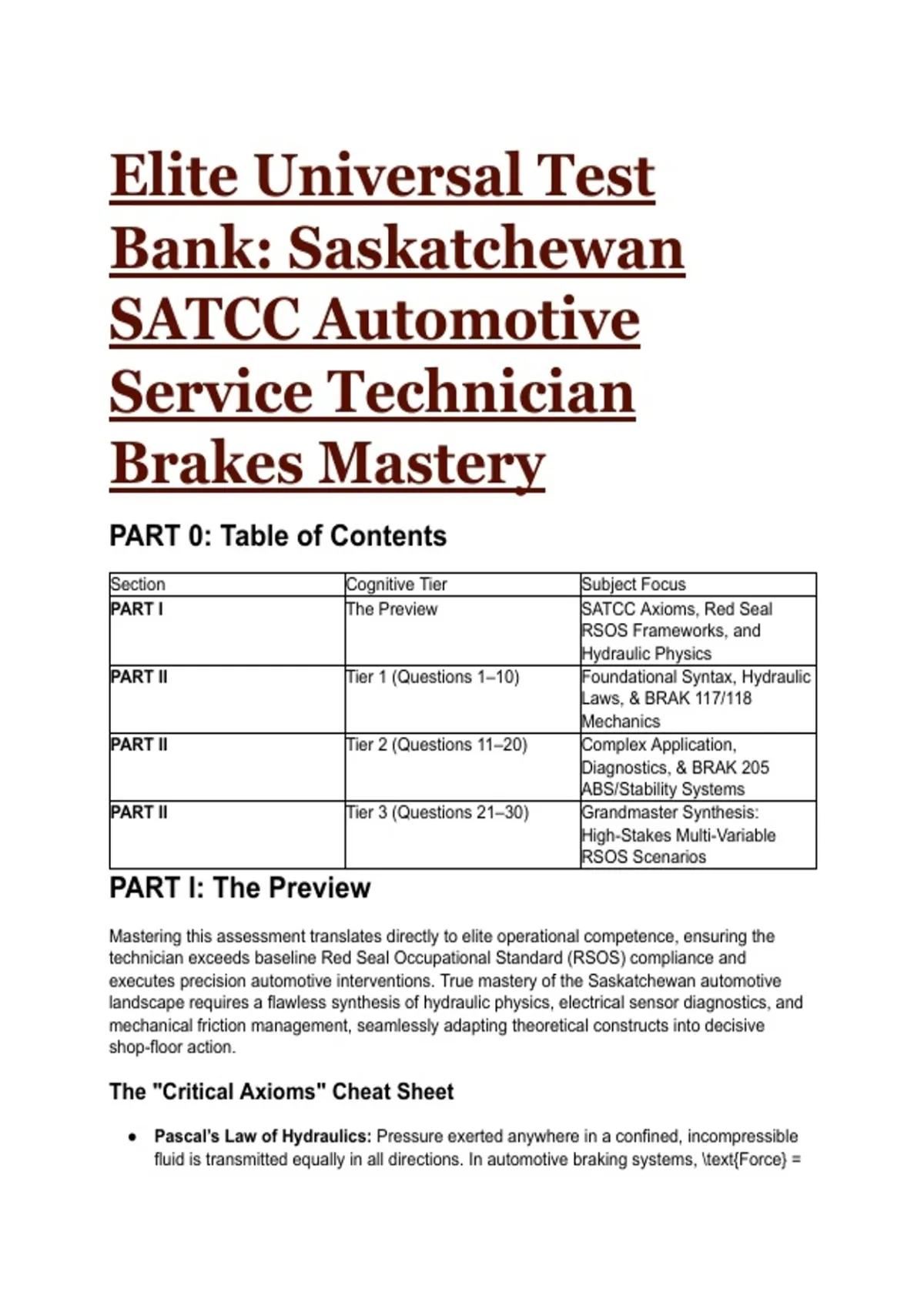

Elite Universal Test
Bank: Saskatchewan
SATCC Automotive
Service Technician
Brakes Mastery
PART 0: Table of Contents
Section Cognitive Tier Subject Focus
PART I The Preview SATCC Axioms, Red Seal
RSOS Frameworks, and
Hydraulic Physics
PART II Tier 1 (Questions 1–10) Foundational Syntax, Hydraulic
Laws, & BRAK 117/118
Mechanics
PART II Tier 2 (Questions 11–20) Complex Application,
Diagnostics, & BRAK 205
ABS/Stability Systems
PART II Tier 3 (Questions 21–30) Grandmaster Synthesis:
High-Stakes Multi-Variable
RSOS Scenarios
PART I: The Preview
Mastering this assessment translates directly to elite operational competence, ensuring the
technician exceeds baseline Red Seal Occupational Standard (RSOS) compliance and
executes precision automotive interventions. True mastery of the Saskatchewan automotive
landscape requires a flawless synthesis of hydraulic physics, electrical sensor diagnostics, and
mechanical friction management, seamlessly adapting theoretical constructs into decisive
shop-floor action.
The "Critical Axioms" Cheat Sheet
● Pascal’s Law of Hydraulics: Pressure exerted anywhere in a confined, incompressible
fluid is transmitted equally in all directions. In automotive braking systems, \text{Force} =
, \text{Pressure} \times \text{Area}. Increasing the master cylinder bore size decreases
output pressure for a given pedal force, whereas decreasing the bore size increases
output pressure but requires more pedal travel.
● The Physics of Kinetic Conversion: Braking is fundamentally the conversion of kinetic
energy into thermal energy via mechanical friction. Brake fade occurs when thermal
saturation exceeds the dissipation capacity of the rotors or drums, leading to either
mechanical fade (glazing of the pad resins) or fluid fade (boiling DOT fluid, which
introduces compressible gas into a non-compressible hydraulic system).
● The Diagnostic Prime Directive: Never attempt to resolve an Anti-lock Braking System
(ABS) or Electronic Stability Control (ESC) electronic fault without first verifying the
mechanical integrity of the foundation brakes. A seized caliper or severely worn wheel
bearing will induce wheel speed sensor anomalies that perfectly mimic catastrophic
control module failures.
● The Fluid Mandate: Polyethylene glycol-based brake fluids (DOT 3, DOT 4, DOT 5.1) are
inherently hygroscopic, drawing moisture from the atmosphere, and must be stored in
small, tightly sealed containers. The introduction of even 3% moisture severely degrades
the fluid's wet boiling point, while the introduction of petroleum-based solvents will cause
instantaneous, irreversible swelling and failure of all EPDM rubber seals within the
hydraulic circuit.
● The RSOS Task F-19 Rule: Run-out and parallelism (Disc Thickness Variation - DTV) are
independent mechanical conditions. Run-out causes pedal pulsation during non-ABS
stops, while parallelism causes steering wheel oscillation and severe chassis vibration.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A technician is performing a static brake diagnostic on a conventional vacuum-assisted
hydraulic system to satisfy the requirements of SATCC course BRAK 117. With the engine off,
the pedal is pumped several times to deplete the vacuum reserve. The technician then applies
steady, moderate pressure to the brake pedal. Over a 30-second period, the pedal slowly and
continuously sinks to the floorboard, despite no external fluid leaks being visible at the wheels,
lines, or hoses. Based on the principles of hydraulic system diagnosis, which component failure
is the MOST ACCURATE cause of this condition? A) A seized primary caliper piston on the
front axle preventing pad application. B) A ruptured internal diaphragm within the vacuum brake
booster assembly. C) Bypassing internal cup seals within the master cylinder assembly. D)
Atmospheric air trapped within the secondary hydraulic brake lines.
● The Answer: C (Bypassing internal cup seals within the master cylinder assembly.)
● Distractor Analysis:
○ A is incorrect: A seized caliper piston prevents fluid movement entirely and would
result in an abnormally hard, high pedal, not a sinking pedal.
○ B is incorrect: A ruptured vacuum booster diaphragm causes a loss of power assist,
resulting in a consistently hard pedal requiring excessive physical effort, but it will
not cause the pedal to mechanically creep downward under steady pressure.
○ D is incorrect: Air is compressible. Trapped air results in an immediate spongy,
springy pedal feel upon initial application, but it does not cause a continuous sinking
motion once the air is fully compressed.
, The Mentor's Analysis: A sealed hydraulic system governed by Pascal's Law must hold
pressure indefinitely. When a pedal sinks without external fluid loss, the fluid is actively escaping
the high-pressure zone and returning to the low-pressure reservoir internally. By identifying
bypassing master cylinder cup seals, you bypass the common trap of unnecessarily bleeding a
system that has no air in it. Professional/Academic Intuition: A spongy pedal means air; a
sinking pedal with no external leak means internal master cylinder failure.
Q2: During a routine brake line replacement on a 2018 light-duty truck, the technician must
fabricate a new section of rigid steel brake tubing to replace a rusted segment. The vehicle
utilizes standard double-wall steel tubing. According to Saskatchewan SATCC and global safety
standards for hydraulic brake lines, which fabrication method is the ONLY acceptable
procedure? A) Utilizing brass compression fittings to splice the new section into the existing line.
B) Flaring the tubing ends utilizing either an inverted double flare or an ISO bubble flare. C)
Heating the line with an oxyacetylene torch to anneal the steel before applying a single
45-degree flare. D) Utilizing high-pressure hydraulic quick-connect fittings rated for 3000 PSI.
● The Answer: B (Flaring the tubing ends utilizing either an inverted double flare or an ISO
bubble flare.)
● Distractor Analysis:
○ A is incorrect: Compression fittings are strictly illegal and highly dangerous for
automotive hydraulic brake systems because they cannot withstand the extreme
pressure spikes (often exceeding 2000 PSI) generated during panic stops.
○ C is incorrect: Single flares are prone to cracking and splitting under pressure. Steel
lines must never be single-flared for hydraulic brake use; single flares are reserved
for low-pressure applications like fuel or vacuum lines.
○ D is incorrect: While industrial quick-connects handle high pressure, they are not
DOT-approved or compliant with FMVSS/CMVSS regulations for rigid passenger
vehicle brake lines due to severe vibration and kinetic fatigue risks.
The Mentor's Analysis: High-pressure hydraulic lines require absolute mechanical integrity at
their union points. When fabricating brake lines, the immediate priority is ensuring the flare can
withstand thousands of pounds of per-square-inch pressure without yielding. By utilizing
standard double or ISO bubble flares, the technician bypasses the trap of creating a
catastrophic leak point with illegal compression fittings. Professional/Academic Intuition: In
automotive hydraulics, compression fittings are a severe liability vector; double flares or ISO
bubble flares are the strict legal standard.
Q3: A vehicle equipped with an older quick take-up master cylinder is undergoing a complete
hydraulic fluid flush. The technician is preparing to manually bleed the system. Based on the
specific architecture of a quick take-up master cylinder, which statement dictates the MOST
ACCURATE procedure? A) The quick take-up valve must be manually depressed using a
specialized tool before fluid can be forced through the system. B) The system cannot be
manually bled and absolutely requires a pressurized bleeding machine set to 30 PSI. C) The
bleeder screws must be opened in a simultaneous sequence (front left and right rear together)
to balance the take-up valve. D) The system can be bled normally without depressing the quick
take-up valve, as the valve only operates during initial pedal application.
● The Answer: D (The system can be bled normally without depressing the quick take-up
valve, as the valve only operates during initial pedal application.)
● Distractor Analysis:
○ A is incorrect: The quick take-up valve is an internal bypass mechanism designed
to move a large volume of fluid at low pressure to overcome low-drag caliper seal
retraction. It does not mechanically block the bleeding process and does not require
