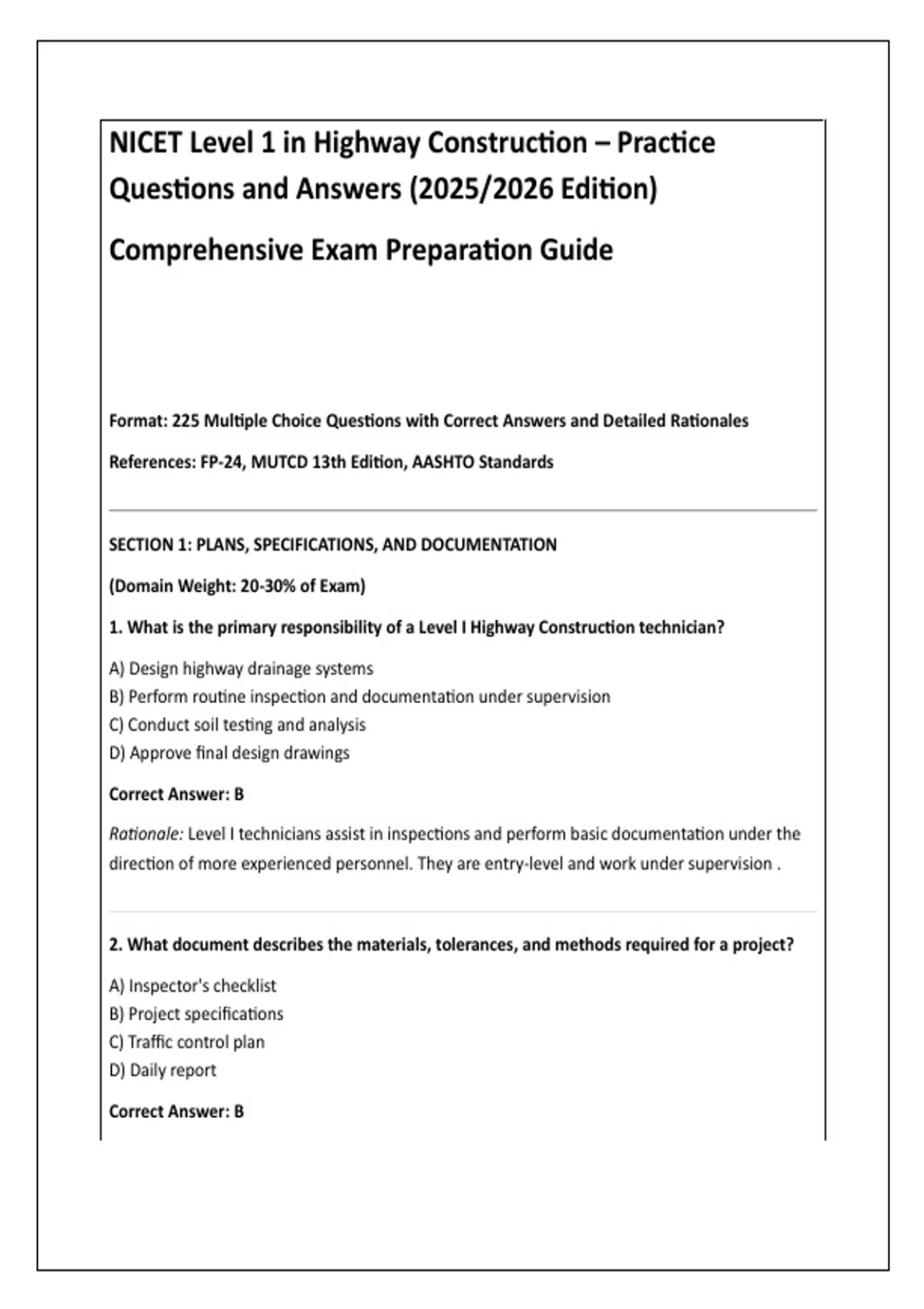

NICET Level 1 in Highway Construction – Practice
Questions and Answers (2025/2026 Edition)
Comprehensive Exam Preparation Guide
Format: 225 Multiple Choice Questions with Correct Answers and Detailed Rationales
References: FP-24, MUTCD 13th Edition, AASHTO Standards
SECTION 1: PLANS, SPECIFICATIONS, AND DOCUMENTATION
(Domain Weight: 20-30% of Exam)
1. What is the primary responsibility of a Level I Highway Construction technician?
A) Design highway drainage systems
B) Perform routine inspection and documentation under supervision
C) Conduct soil testing and analysis
D) Approve final design drawings
Correct Answer: B
Rationale: Level I technicians assist in inspections and perform basic documentation under the
direction of more experienced personnel. They are entry-level and work under supervision .
2. What document describes the materials, tolerances, and methods required for a project?
A) Inspector's checklist
B) Project specifications
C) Traffic control plan
D) Daily report
Correct Answer: B
,Rationale: Specifications define the materials, tolerances, and methods required for
construction. They are legally binding contract documents .
3. Which sheet in a set of project plans identifies the project name, location, and sheet index?
A) Plan sheet
B) Profile sheet
C) Key sheet (title sheet)
D) Typical section sheet
Correct Answer: C
Rationale: The key sheet (title sheet) is the first sheet in a set of project plans. It identifies the
project name/number, location, sheet index, project length, specifications, traffic maintenance
requirements, and approval signatures. Detailed construction methods are found in
specifications, not the title sheet .
4. If plans show 35 stations of fence, how many linear feet of fence is required?
A) 3,000 ft
B) 3,500 ft
C) 4,000 ft
D) 5,000 ft
Correct Answer: B
Rationale: One station equals 100 linear feet. Therefore, 35 stations × 100 ft/station = 3,500
linear feet. Stationing is a standard surveying unit used on highway plans .
5. What does a plan view show?
A) A view as if the object has been cut open
B) A view from above
C) A view from the front or side
D) A cross-section of the roadway
Correct Answer: B
,Rationale: A plan view shows the project as seen from above, looking down (bird's-eye view).
Elevation or profile view is from the front/side. Cross-section view shows the object as if cut
open .
6. What does an elevation view (profile view) show?
A) A view from above
B) A view from the front or side
C) A view as if cut open
D) Underground utilities only
Correct Answer: B
Rationale: Elevation or profile view shows the project from the front or side, providing vertical
alignment information. Plan and profile sheets typically show the top half as plan view and the
bottom half as profile view .
7. What do typical section sheets show?
A) The different layers of the road, side slopes, and ditches
B) Only the horizontal alignment
C) Traffic control devices
D) Utility locations
Correct Answer: A
Rationale: Typical section sheets show the different layers of the road (pavement structure),
side slopes, and ditches for a particular given length. The view is as if the road was cut full depth
perpendicular to the centerline .
8. What does the term "subgrade" refer to?
A) Final pavement surface
B) The natural soil layer under a road
C) The base course
D) Concrete slab
Correct Answer: B
, Rationale: The subgrade is the bottommost layer of natural soil that supports the pavement
system. It must be properly graded and compacted before further construction .
9. What does "subbase" refer to in road construction?
A) The top asphalt layer
B) The layer beneath the base course
C) Bridge deck
D) Concrete surface
Correct Answer: B
Rationale: The subbase lies below the base course and supports the pavement structure. It
provides additional structural support and drainage .
10. Distances shown on construction plans are always measured:
A) Along the slope of the ground
B) Either horizontally or vertically, never along the slope
C) Along the centerline only
D) Along the shortest path
Correct Answer: B
Rationale: Distances on plans are always measured either horizontally or vertically, never along
the slope of the ground. This is standard practice for accurate measurement .
SECTION 2: MEASUREMENT, SURVEYING, AND MATH
(Domain Weight: 15-25% of Exam)
11. How is the bearing of a line notated?
A) N 45° E
B) 45° NE
C) 45°
D) N45E
Correct Answer: A
