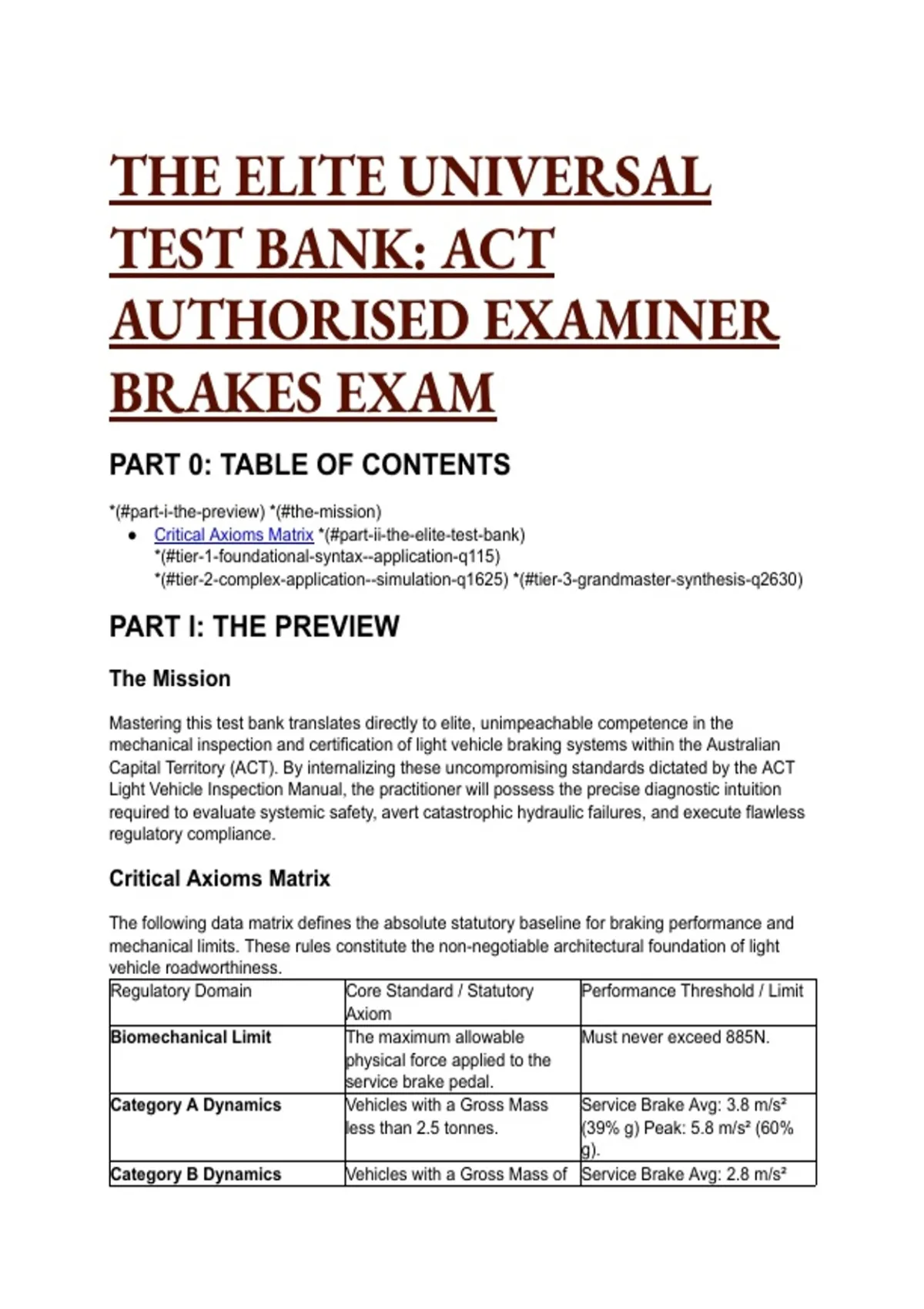

THE ELITE UNIVERSAL
TEST BANK: ACT
AUTHORISED EXAMINER
BRAKES EXAM
PART 0: TABLE OF CONTENTS
*(#part-i-the-preview) *(#the-mission)
● Critical Axioms Matrix *(#part-ii-the-elite-test-bank)
*(#tier-1-foundational-syntax--application-q115)
*(#tier-2-complex-application--simulation-q1625) *(#tier-3-grandmaster-synthesis-q2630)
PART I: THE PREVIEW
The Mission
Mastering this test bank translates directly to elite, unimpeachable competence in the
mechanical inspection and certification of light vehicle braking systems within the Australian
Capital Territory (ACT). By internalizing these uncompromising standards dictated by the ACT
Light Vehicle Inspection Manual, the practitioner will possess the precise diagnostic intuition
required to evaluate systemic safety, avert catastrophic hydraulic failures, and execute flawless
regulatory compliance.
Critical Axioms Matrix
The following data matrix defines the absolute statutory baseline for braking performance and
mechanical limits. These rules constitute the non-negotiable architectural foundation of light
vehicle roadworthiness.
Regulatory Domain Core Standard / Statutory Performance Threshold / Limit
Axiom
Biomechanical Limit The maximum allowable Must never exceed 885N.
physical force applied to the
service brake pedal.
Category A Dynamics Vehicles with a Gross Mass Service Brake Avg: 3.8 m/s²
less than 2.5 tonnes. (39% g) Peak: 5.8 m/s² (60%
g).
Category B Dynamics Vehicles with a Gross Mass of Service Brake Avg: 2.8 m/s²
,Regulatory Domain Core Standard / Statutory Performance Threshold / Limit
Axiom
2.5 tonnes or over. (29% g) Peak: 4.4 m/s² (45%
g).
Axle Force Variance Maximum allowable cross-axle Must not exceed a 30%
braking imbalance during difference between left and
dynamic testing. right wheels.
Hydraulic Stroke Limit Mandatory pedal travel reserve Less than 20% travel remaining
during firm system is an immediate rejection.
pressurization.
Modern Parking Brakes Testing protocol for ADR 31/35 Must hold the vehicle stationary
compliant tandem master against a light throttle
cylinder vehicles. application.
Roller Minimums Minimum brake force per wheel Cat A: 2.0 kN minimum. Cat B:
prior to wheel slip on a roller 4.0 kN minimum.
tester.
---
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application (Q1–Q15)
Q1: An Authorised Examiner is conducting a decelerometer-based service brake test on a light
vehicle. The vehicle successfully meets all mathematical deceleration thresholds, but the
physical effort required by the driver is unusually high. According to the ACT Light Vehicle
Inspection Manual, what is the absolute maximum allowable pedal force before the vehicle must
be rejected? A) 500N B) 750N C) 885N D) 1000N
● The Answer: C (885N)
● Distractor Analysis:
○ A is incorrect: 500N represents a healthy, well-assisted pedal pressure but is far
below the maximum legal limit; failing a vehicle here would be an arbitrary error.
○ B is incorrect: 750N indicates a very heavy pedal feel, potentially signaling a failing
vacuum assist, yet it remains legally under the statutory maximum.
○ D is incorrect: 1000N drastically exceeds the legal limit; requiring this much force
indicates a critical failure of mechanical leverage or power-assist systems, resulting
in an immediate fail.
The Mentor's Analysis: The fundamental metric of brake safety extends beyond simply
arresting the kinetic mass of the vehicle; it demands that the average human operator
possesses the biomechanical strength to actuate the system during a panic stop. When
evaluating heavy pedal travel, the immediate priority is measuring the strict Newtonian force
required to halt the vehicle. By rigorously enforcing the 885N limit, the examiner bypasses the
common trap of passing a vehicle with a dead brake booster simply because the brake pads
function. Professional/Academic Intuition: Regardless of optimal deceleration telemetry, a
service brake pedal demanding more than 885N of force is an automatic systemic failure.
Q2: A 2016 passenger sedan with a gross mass of 1.8 tonnes (Category A) is undergoing a
decelerometer test on a dry, level surface. The examiner achieves a peak deceleration of 5.0
m/s² and an average of 3.5 m/s². Based exclusively on Category A parameters, what is the
, MOST ACCURATE conclusion? A) The vehicle passes because modern sedans are exempt
from legacy decelerometer limits. B) The vehicle passes because a peak of 5.0 m/s² exceeds
the Category B requirements, making it safe. C) The vehicle fails because it does not achieve
the required average of 3.8 m/s² and peak of 5.8 m/s². D) The vehicle fails because the average
deceleration must be strictly 5.8 m/s².
● The Answer: C (The vehicle fails because it does not achieve the required average of 3.8
m/s² and peak of 5.8 m/s².)
● Distractor Analysis:
○ A is incorrect: Modern vehicles are never exempt; the ACT Light Vehicle Inspection
Manual rigidly applies Category A and B limits based entirely on mass, not the
technological age of the chassis. * B is incorrect: The vehicle weighs 1.8 tonnes,
definitively classifying it as Category A. Applying the lower Category B (over 2.5t)
limits to a light Category A vehicle is a dangerous analytical error.
○ D is incorrect: This distractor conflates the peak requirement (5.8 m/s²) with the
average requirement (3.8 m/s²), representing a fundamental misunderstanding of
the testing matrix.
The Mentor's Analysis: Mass dictates the kinetic energy equations governing the ACT
standards. Category A vehicles are significantly lighter and must dissipate their momentum
faster than heavy Category B commercial chassis. When verifying decelerometer outputs on a
passenger sedan, the immediate priority is isolating the correct mass-based performance
matrix. By utilizing the Category A baseline, the practitioner bypasses the trap of approving
sluggish braking systems on highly capable light vehicles. Professional/Academic Intuition:
Category A vehicles (under 2.5 tonnes) must unequivocally hit an average deceleration of
3.8 m/s² and a peak of 5.8 m/s².
---
Q3: During the static cabin inspection, the examiner applies steady, moderate pressure to the
service brake pedal for 10 continuous seconds. Instead of holding firm, the pedal slowly and
steadily travels downward towards the floorboard. What does this mechanical behavior indicate,
and what is the mandated regulatory action? A) It indicates air trapped in the brake lines; the
examiner should pump the pedal to build pressure and pass the vehicle conditionally. B) It
indicates the vacuum booster is engaging correctly under sustained load; the vehicle passes the
static test. C) It indicates the Anti-Lock Braking System (ABS) module is performing a
self-diagnostic reset; the vehicle passes conditionally. D) It indicates a master cylinder internal
seal bypass or a severe hydraulic leak; the vehicle must be rejected immediately.
● The Answer: D (It indicates a master cylinder internal seal bypass or a severe hydraulic
leak; the vehicle must be rejected immediately.)
● Distractor Analysis:
○ A is incorrect: While trapped air causes an initially spongy pedal, a pedal that
steadily sinks under constant pressure indicates a definitive, active loss of fluid
volume or internal seal failure. * B is incorrect: A working vacuum booster will cause
a slight, immediate initial drop upon engine start, not a continuous, creeping sink
under a steady 10-second static pressure test.
○ C is incorrect: ABS resetting procedures do not cause continuous floor-ward pedal
travel under manual static testing protocols.
The Mentor's Analysis: A sealed hydraulic braking system operates on the fundamental
physical principle of incompressible fluid. When facing a sinking brake pedal, the immediate
priority is recognizing the catastrophic loss of hydraulic integrity. By rejecting a sinking pedal, the
examiner bypasses the fatal novice error of assuming the brakes are "just soft" or merely
