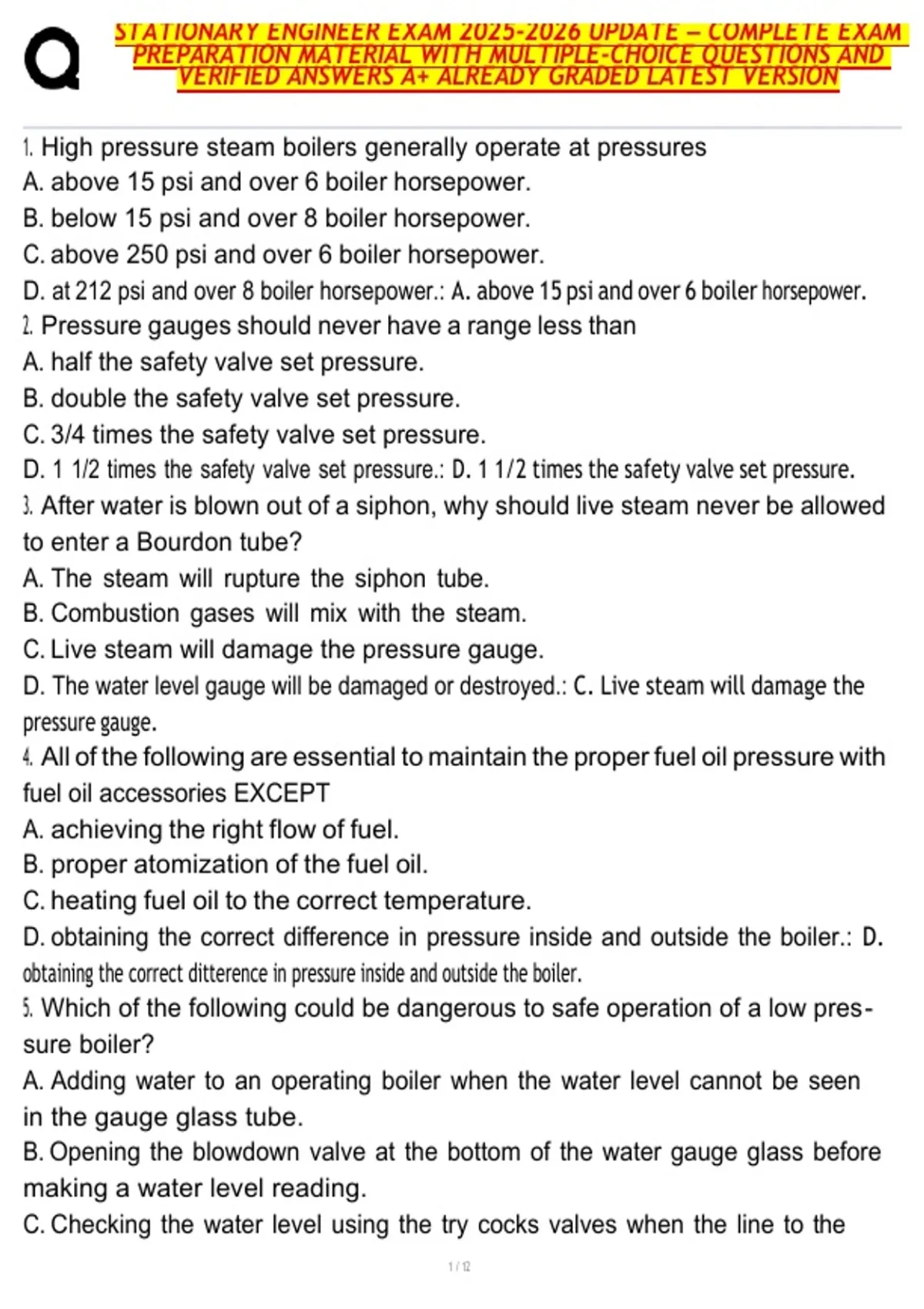

STATIONARY ENGINEER EXAM 2025-2026 UPDATE – COMPLETE EXAM
PREPARATION MATERIAL WITH MULTIPLE-CHOICE QUESTIONS AND
VERIFIED ANSWERS A+ ALREADY GRADED LATEST VERSION
1. High pressure steam boilers generally operate at pressures
A. above 15 psi and over 6 boiler horsepower.
B. below 15 psi and over 8 boiler horsepower.
C. above 250 psi and over 6 boiler horsepower.
D. at 212 psi and over 8 boiler horsepower.: A. above 15 psi and over 6 boiler horsepower.
2. Pressure gauges should never have a range less than
A. half the safety valve set pressure.
B. double the safety valve set pressure.
C. 3/4 times the safety valve set pressure.
D. 1 1/2 times the safety valve set pressure.: D. 1 1/2 times the safety valve set pressure.
3. After water is blown out of a siphon, why should live steam never be allowed
to enter a Bourdon tube?
A. The steam will rupture the siphon tube.
B. Combustion gases will mix with the steam.
C. Live steam will damage the pressure gauge.
D. The water level gauge will be damaged or destroyed.: C. Live steam will damage the
pressure gauge.
4. All of the following are essential to maintain the proper fuel oil pressure with
fuel oil accessories EXCEPT
A. achieving the right flow of fuel.
B. proper atomization of the fuel oil.
C. heating fuel oil to the correct temperature.
D. obtaining the correct difference in pressure inside and outside the boiler.: D.
obtaining the correct ditterence in pressure inside and outside the boiler.
5. Which of the following could be dangerous to safe operation of a low pres-
sure boiler?
A. Adding water to an operating boiler when the water level cannot be seen
in the gauge glass tube.
B. Opening the blowdown valve at the bottom of the water gauge glass before
making a water level reading.
C. Checking the water level using the try cocks valves when the line to the
, STATIONARY ENGINEER EXAM 2025-2026 UPDATE – COMPLETE EXAM
PREPARATION MATERIAL WITH MULTIPLE-CHOICE QUESTIONS AND
VERIFIED ANSWERS A+ ALREADY GRADED LATEST VERSION
glass gauge tube is clogged.
D. Opening the water column blowdown valve every day.: A. Adding water to an
operating boiler when the water level cannot be seen in the gauge glass tube.
6. Which of the following is best if a low-pressure boiler does not have an air
vent?
A. Vent the boiler with the try cocks.
B. Vent the boiler with the safety valve.
C. Vent the boiler with the fusible plug.
D. Vent the boiler with the blowdown line.: A. Vent the boiler with the try cocks.
7. What is the purpose of an evaporation test on a low pressure boiler?
A. To test the water column
B. To test the bottom blowdown valve
C. To test the steam pressure safety valve
D. To test the low water cutoff control.: D. To test the low water cutott control.
8. Following flame failure, controls must de-energize fuel and ignition circuits
A. within 4 seconds.
B. within 6 seconds.
C. within 10 seconds.
D. within 15 seconds.: A. within 4 seconds.
9. How can an operator prevent damage to the tubes while using a cleaner to
remove scale from boiler tubes?
A. Never use a chemical cleaning procedure.
B. Never use cleaning water under pressure.
C. Never allow the cleaner to stay in one place.
D. Never clean the tubes more often than every six months.: C. Never allow the cleaner
to stay in one place.
10. In a steam boiler, which of the following should never be placed between
the safety relief valve and the boiler?
A. A steam trap
B. A shut-off valve
PREPARATION MATERIAL WITH MULTIPLE-CHOICE QUESTIONS AND
VERIFIED ANSWERS A+ ALREADY GRADED LATEST VERSION
1. High pressure steam boilers generally operate at pressures
A. above 15 psi and over 6 boiler horsepower.
B. below 15 psi and over 8 boiler horsepower.
C. above 250 psi and over 6 boiler horsepower.
D. at 212 psi and over 8 boiler horsepower.: A. above 15 psi and over 6 boiler horsepower.
2. Pressure gauges should never have a range less than
A. half the safety valve set pressure.
B. double the safety valve set pressure.
C. 3/4 times the safety valve set pressure.
D. 1 1/2 times the safety valve set pressure.: D. 1 1/2 times the safety valve set pressure.
3. After water is blown out of a siphon, why should live steam never be allowed
to enter a Bourdon tube?
A. The steam will rupture the siphon tube.
B. Combustion gases will mix with the steam.
C. Live steam will damage the pressure gauge.
D. The water level gauge will be damaged or destroyed.: C. Live steam will damage the
pressure gauge.
4. All of the following are essential to maintain the proper fuel oil pressure with
fuel oil accessories EXCEPT
A. achieving the right flow of fuel.
B. proper atomization of the fuel oil.
C. heating fuel oil to the correct temperature.
D. obtaining the correct difference in pressure inside and outside the boiler.: D.
obtaining the correct ditterence in pressure inside and outside the boiler.
5. Which of the following could be dangerous to safe operation of a low pres-
sure boiler?
A. Adding water to an operating boiler when the water level cannot be seen
in the gauge glass tube.
B. Opening the blowdown valve at the bottom of the water gauge glass before
making a water level reading.
C. Checking the water level using the try cocks valves when the line to the
, STATIONARY ENGINEER EXAM 2025-2026 UPDATE – COMPLETE EXAM
PREPARATION MATERIAL WITH MULTIPLE-CHOICE QUESTIONS AND
VERIFIED ANSWERS A+ ALREADY GRADED LATEST VERSION
glass gauge tube is clogged.
D. Opening the water column blowdown valve every day.: A. Adding water to an
operating boiler when the water level cannot be seen in the gauge glass tube.
6. Which of the following is best if a low-pressure boiler does not have an air
vent?
A. Vent the boiler with the try cocks.
B. Vent the boiler with the safety valve.
C. Vent the boiler with the fusible plug.
D. Vent the boiler with the blowdown line.: A. Vent the boiler with the try cocks.
7. What is the purpose of an evaporation test on a low pressure boiler?
A. To test the water column
B. To test the bottom blowdown valve
C. To test the steam pressure safety valve
D. To test the low water cutoff control.: D. To test the low water cutott control.
8. Following flame failure, controls must de-energize fuel and ignition circuits
A. within 4 seconds.
B. within 6 seconds.
C. within 10 seconds.
D. within 15 seconds.: A. within 4 seconds.
9. How can an operator prevent damage to the tubes while using a cleaner to
remove scale from boiler tubes?
A. Never use a chemical cleaning procedure.
B. Never use cleaning water under pressure.
C. Never allow the cleaner to stay in one place.
D. Never clean the tubes more often than every six months.: C. Never allow the cleaner
to stay in one place.
10. In a steam boiler, which of the following should never be placed between
the safety relief valve and the boiler?
A. A steam trap
B. A shut-off valve
