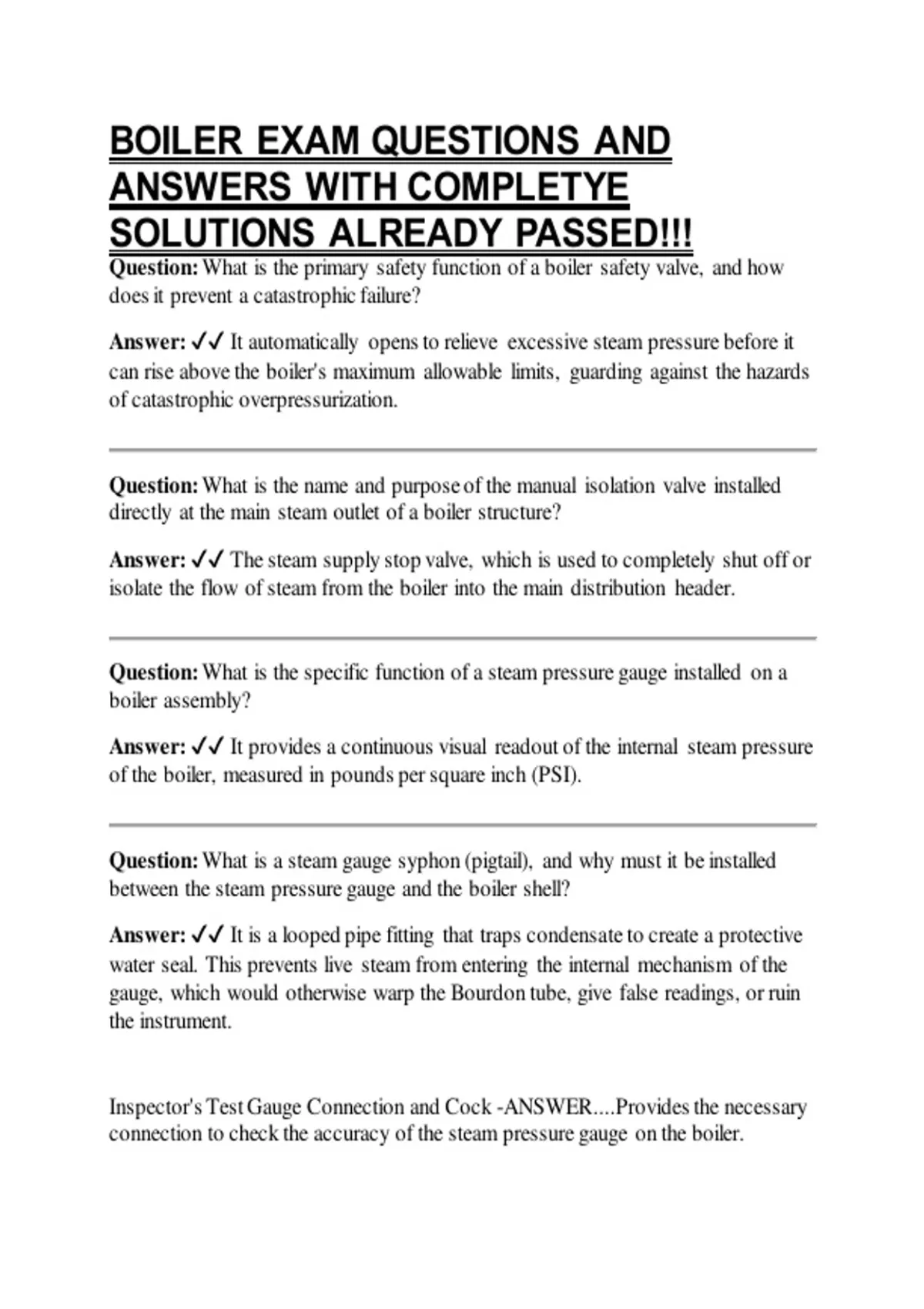

BOILER EXAM QUESTIONS AND
ANSWERS WITH COMPLETYE
SOLUTIONS ALREADY PASSED!!!
Question: What is the primary safety function of a boiler safety valve, and how
does it prevent a catastrophic failure?
Answer: ✔✔ It automatically opens to relieve excessive steam pressure before it
can rise above the boiler's maximum allowable limits, guarding against the hazards
of catastrophic overpressurization.
Question: What is the name and purpose of the manual isolation valve installed
directly at the main steam outlet of a boiler structure?
Answer: ✔✔ The steam supply stop valve, which is used to completely shut off or
isolate the flow of steam from the boiler into the main distribution header.
Question: What is the specific function of a steam pressure gauge installed on a
boiler assembly?
Answer: ✔✔ It provides a continuous visual readout of the internal steam pressure
of the boiler, measured in pounds per square inch (PSI).
Question: What is a steam gauge syphon (pigtail), and why must it be installed
between the steam pressure gauge and the boiler shell?
Answer: ✔✔ It is a looped pipe fitting that traps condensate to create a protective
water seal. This prevents live steam from entering the internal mechanism of the
gauge, which would otherwise warp the Bourdon tube, give false readings, or ruin
the instrument.
Inspector's Test Gauge Connection and Cock -ANSWER....Provides the necessary
connection to check the accuracy of the steam pressure gauge on the boiler.
