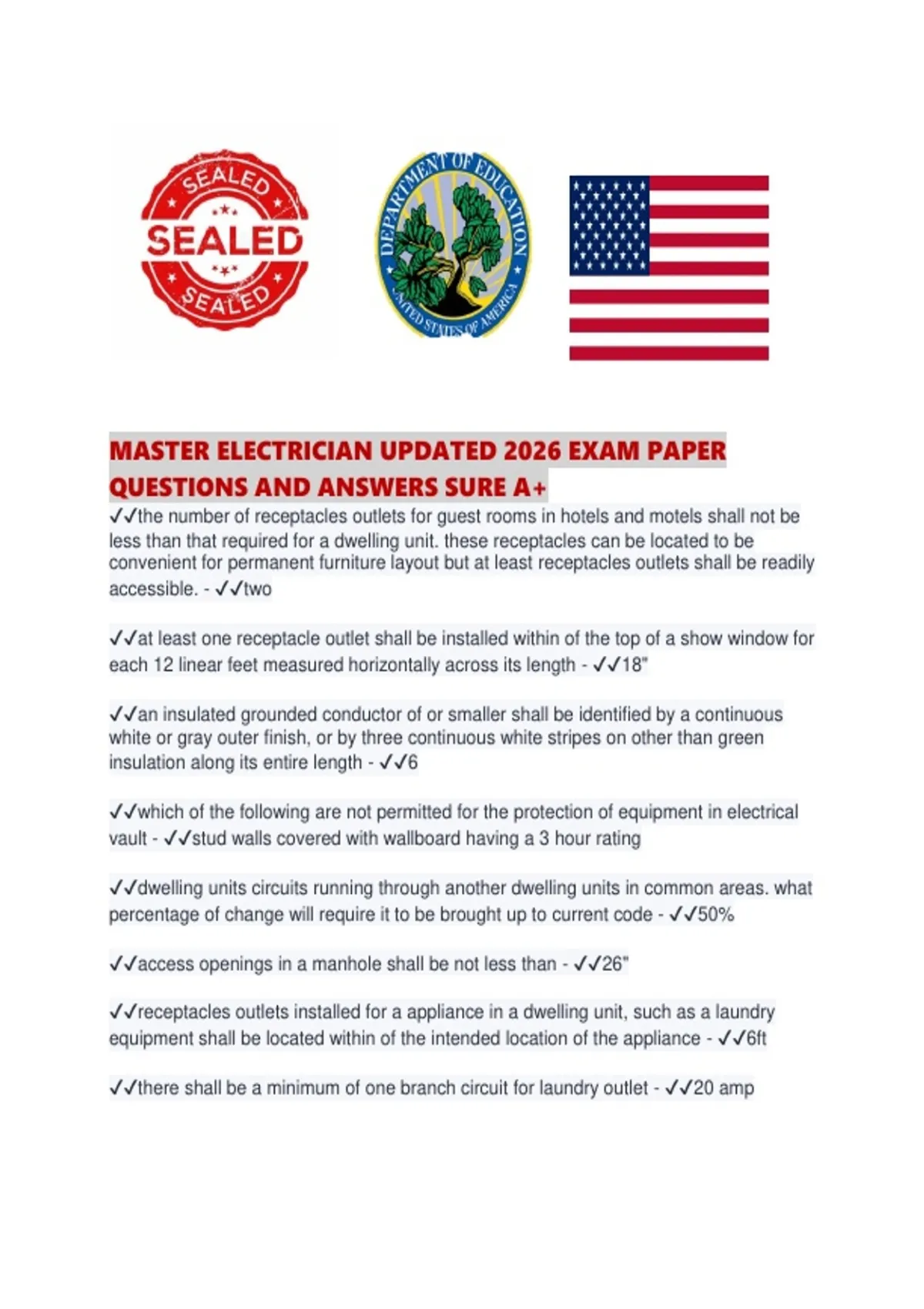

MASTER ELECTRICIAN UPDATED 2026 EXAM PAPER
QUESTIONS AND ANSWERS SURE A+
✔✔the number of receptacles outlets for guest rooms in hotels and motels shall not be
less than that required for a dwelling unit. these receptacles can be located to be
convenient for permanent furniture layout but at least receptacles outlets shall be readily
accessible. - ✔✔two
✔✔at least one receptacle outlet shall be installed within of the top of a show window for
each 12 linear feet measured horizontally across its length - ✔✔18"
✔✔an insulated grounded conductor of or smaller shall be identified by a continuous
white or gray outer finish, or by three continuous white stripes on other than green
insulation along its entire length - ✔✔6
✔✔which of the following are not permitted for the protection of equipment in electrical
vault - ✔✔stud walls covered with wallboard having a 3 hour rating
✔✔dwelling units circuits running through another dwelling units in common areas. what
percentage of change will require it to be brought up to current code - ✔✔50%
✔✔access openings in a manhole shall be not less than - ✔✔26"
✔✔receptacles outlets installed for a appliance in a dwelling unit, such as a laundry
equipment shall be located within of the intended location of the appliance - ✔✔6ft
✔✔there shall be a minimum of one branch circuit for laundry outlet - ✔✔20 amp
, ✔✔manhole openings for personnel shall be located where they are not directly above
electrical equipment or conductors in the enclosure. where this is not practicable - ✔✔a
protective barrier or a fixed ladder shall be provided
✔✔two or more small appliance branch circuits shall be provided to supply power for
receptacle outlets in the dwelling unit kitchen, dining room, breakfast room, or similar
dining areas - ✔✔20 amp
✔✔the work space in front of electrical equipment shall not be less than wide . or the
width of the equipment which ever is greater - ✔✔30"
✔✔in locations where electrical equipment is likely to be exposed to enclosures or
guards shall be so arranged and of such strength as to prevent such damage -
✔✔physical damage
✔✔What is the feeder or service calculated load for a waste disposal (940 VA),
dishwasher (1250VA), a trash compactor (1100VA), and a waste heater (4500VA)? -
✔✔5843 VA
✔✔GFCI protection at a carnival is not required for equipment at a circuit if the
receptacle is of the_______ type - ✔✔locking
✔✔Where cables or nonmetallic raceways are installed through bored holes in joists,
rafters, or wood members, holes shall be board so that the edge of the hole is
________ the nearest edge of the wood member - ✔✔not less than 1 1/4in from
✔✔To guard live parts over 50V but less than 600V, equipment is permitted to be
______ - ✔✔located in a room only accessible to qualified persons, located on a
balcony accessible only qualified persons, and elevated 8ft or more above floor or other
working surfaces
✔✔How many receptacles are required within the perimeter of a balcony, deck, porch
with an unusable are of less than 20 SQ feet - ✔✔1
✔✔Overhead feeder conductors shall have a minimum_________ vertical clearance
over residential property and driveways, as well as those commercial areas not subject
to truck traffic, where voltage is limited to 300 volts- to- ground - ✔✔12 feet
✔✔Where rear access is required to work on de-energized parts on the back of
enclosed equipment, a minimum working space of________ horizontally shall be
provided - ✔✔36 inches
