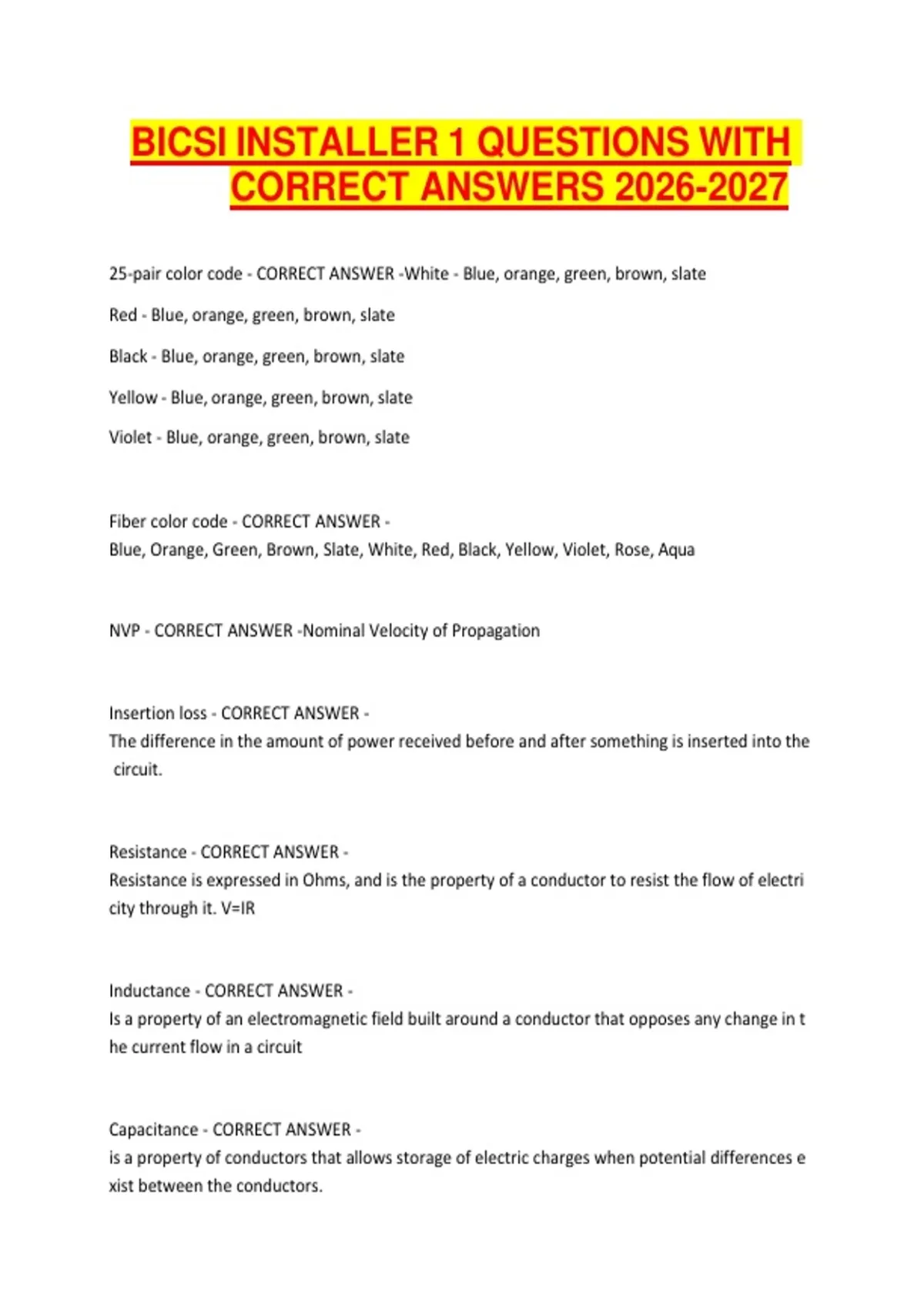

BICSI INSTALLER 1 QUESTIONS WITH
CORRECT ANSWERS 2026-2027
25-pair color code - CORRECT ANSWER -White - Blue, orange, green, brown, slate

Red - Blue, orange, green, brown, slate

Black - Blue, orange, green, brown, slate

Yellow - Blue, orange, green, brown, slate

Violet - Blue, orange, green, brown, slate



Fiber color code - CORRECT ANSWER -
Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua



NVP - CORRECT ANSWER -Nominal Velocity of Propagation



Insertion loss - CORRECT ANSWER -
The difference in the amount of power received before and after something is inserted into the
circuit.



Resistance - CORRECT ANSWER -
Resistance is expressed in Ohms, and is the property of a conductor to resist the flow of electri
city through it. V=IR



Inductance - CORRECT ANSWER -
Is a property of an electromagnetic field built around a conductor that opposes any change in t
he current flow in a circuit



Capacitance - CORRECT ANSWER -
is a property of conductors that allows storage of electric charges when potential differences e
xist between the conductors.

,Impedance (V) - CORRECT ANSWER -Total opposition of current flow measured in Ohms



American Wire Gauge (AWG) - CORRECT ANSWER -
A standard rating that indicates the diameter of a wire, such as the conducting core of a coaxial
cable or the twisted pairs in a UTP cable.



Megahertz (MHz) - CORRECT ANSWER -
one million hertz, especially as a measure of the frequency of transmissions



Megabit (Mb) - CORRECT ANSWER -
Approximately one million bits. Often used as a measurement of data transfer throughput.



Bandwidth - CORRECT ANSWER -
The amount of data that can be transmitted over a network in a given amount of time.



Decibel (dB) - CORRECT ANSWER -A unit used to compare the loudness of different sounds.



Crosstalk - CORRECT ANSWER -when data bleeds from one pair to another in a cable



Alien Crosstalk (AXT) - CORRECT ANSWER -
Unwanted signal coupling from one permanent link to another



USOC - CORRECT ANSWER -Universal Service Order Code



Coaxial cable types - CORRECT ANSWER -Series-6 and Series-11



Coaxial connectors - CORRECT ANSWER -Series-6 uses BNC and F connectors

Series-11 uses F and N connectors

, Fiber connectors - CORRECT ANSWER -SC, ST, and SST(LC or



cladding - CORRECT ANSWER -The glass or plastic shield around the core of a fiber-
optic cable. Cladding reflects light back to the core in patterns that vary depending on the tran
smission mode. This reflection allows fiber to bend around corners without impairing the light-
based signal.



Multimode Fiber (MMF) - CORRECT ANSWER -
Larger core with multiple paths of light. Common for backbone and horizontal cabling in buildi
ngs. OM2 - Not recommended for new installs. OM3 - Higher bandwidth. OM4 -
Highest bandwidth for MMF. 2000m/6500ft limitation. 850 nm and 1300 nm (nanometers)



Singlemode Fiber - CORRECT ANSWER -
Smaller core with only one path of lights. Horizontal, riser, campus environments.

9 um core, 125 um cladding.

OS1 - LAN, tight buffered construction, 1310/1550 nm

OS2 - Outside Plant, 1310, 1490, 1550, 1625 nm

3000m/9842ft limtations.



Ribbon Fiber - CORRECT ANSWER -
X2 X2 X2 X2 X2




Multiple 250 um fibers bonded into a flat color coded ribbon. Can splice a bunch at a time.
X2 X2 X2 X2 X2 X2 X2 X2 X2 X2 X2 X2 X2 X2 X2 X2 X2




Fiber - Tight buffer diameter - CORRECT ANSWER -900 um
X2 X2 X2 X2 X2 X2 X2 X2 X2




Fiber - Acrylate coating diameter - CORRECT ANSWER -250 um
X2 X2 X2 X2 X2 X2 X2 X2 X2




OM1 - CORRECT ANSWER -850 nm OFLD- 200 MHz•km (3.5dB/km)
