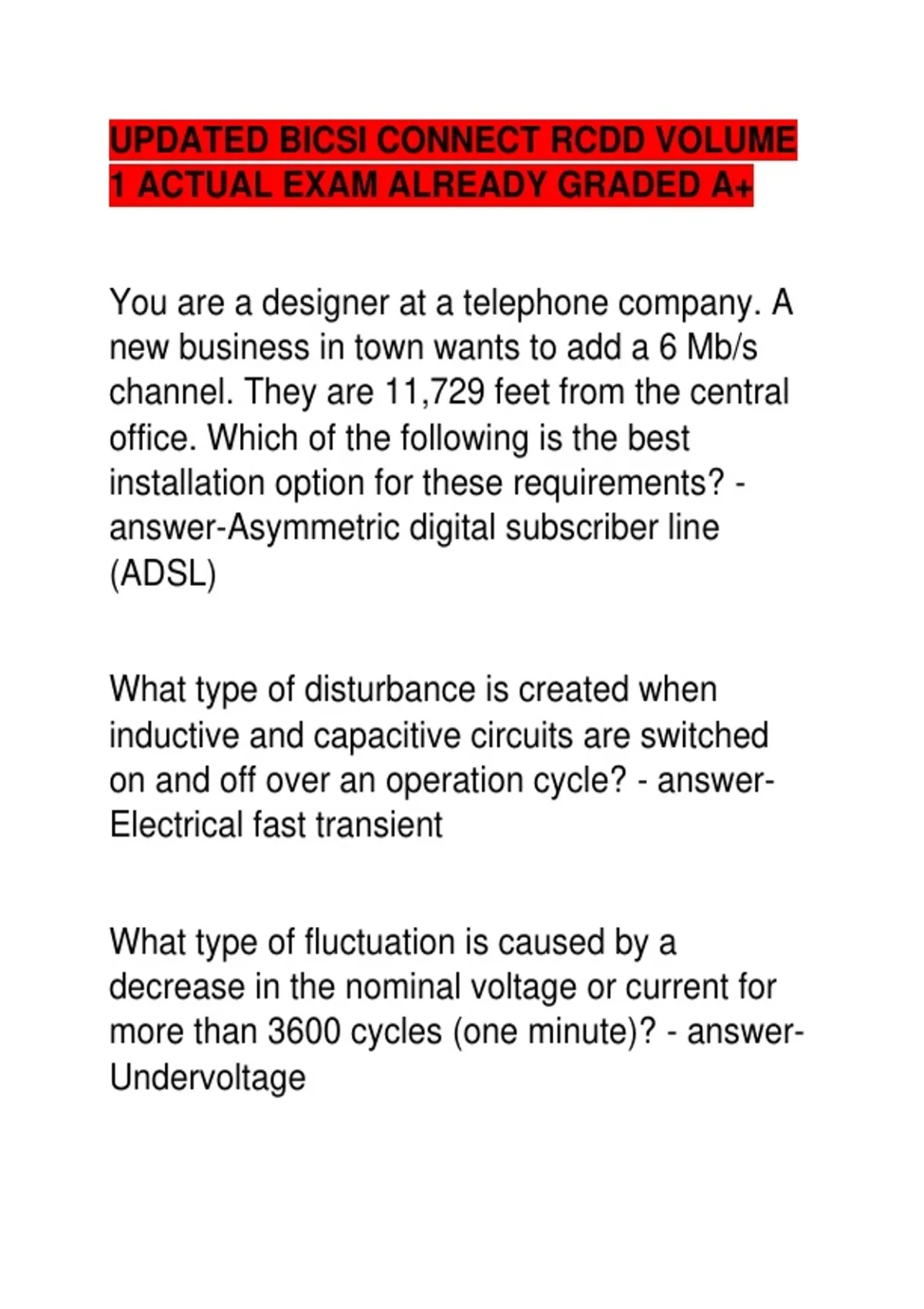

UPDATED BICSI CONNECT RCDD VOLUME
1 ACTUAL EXAM ALREADY GRADED A+
You are a designer at a telephone company. A
new business in town wants to add a 6 Mb/s
channel. They are 11,729 feet from the central
office. Which of the following is the best
installation option for these requirements? -
answer-Asymmetric digital subscriber line
(ADSL)
What type of disturbance is created when
inductive and capacitive circuits are switched
on and off over an operation cycle? - answer-
Electrical fast transient
What type of fluctuation is caused by a
decrease in the nominal voltage or current for
more than 3600 cycles (one minute)? - answer-
Undervoltage
,What is the maximum recommended length for
a telecommunications bonding conductor
(TBC)? - answer-9 m (30ft)
You have been hired as a consultant for a
property management firm that would like to
implement a telecommunications administration
system in one of its properties. The property in
question is a twelve-story office building with
multiple tenants. Which class of administration
is best suited for this type of infrastructure? -
answer-Class 2
Which device is used to manage resources that
are shared by users and administrators on a
network? - answer-Server
How much space must be allocated for an
equipment room in a building that has 9300 m2
(100,000 ft2) of usable floor space and a total
floor area of 13,935 m2 (150,000 ft2)? -
answer-83.8 m2 (900 ft2)
,You do not have much space. As a result,
which type of fiber termination connectors
should you use to design a horizontal
crossconnect/floor distributor (HC/FD) where
you will be terminating OM4 optical fiber cable?
- answer-LC
Which of the following telecommunications
infrastructure elements requires an identifier in
a Class 1 system? - answer-Horizontal link
What is the minimum separation distance that
must be maintained between transformers and
a 5 kVA transformer? - answer-1220 mm (48 in)
Which of the following gigabit passive optical
networks (GPONs) has a maximum supported
distance of 60 km (37 mi)? - answer-ITU G.984
GPON (C+ Optics)
, A customer has a backbone application for
balanced twisted-pair cable that will require
data to be transmitted at 300 MHz. Which
category/class of cable would meet these
requirements? - answer-Category 6A/class EA
What type of energy has a frequency higher
than the visible light? - answer-Ultraviolet
An installation team is running a 600-pair
category 3 cable from the first floor to the top
floor of a twenty-story building. The cable will
be attached to a supporting strand that has
been anchored in a vertical shaft that runs the
entire pathway. What is the minimum number of
steel cable ties that should be used to attach
the category 3 cable to the support strand? -
answer-60
A customer has 72 workstations that will be
connected by multiuser telecommunications
outlet assemblies (MUTOAs). What is the
