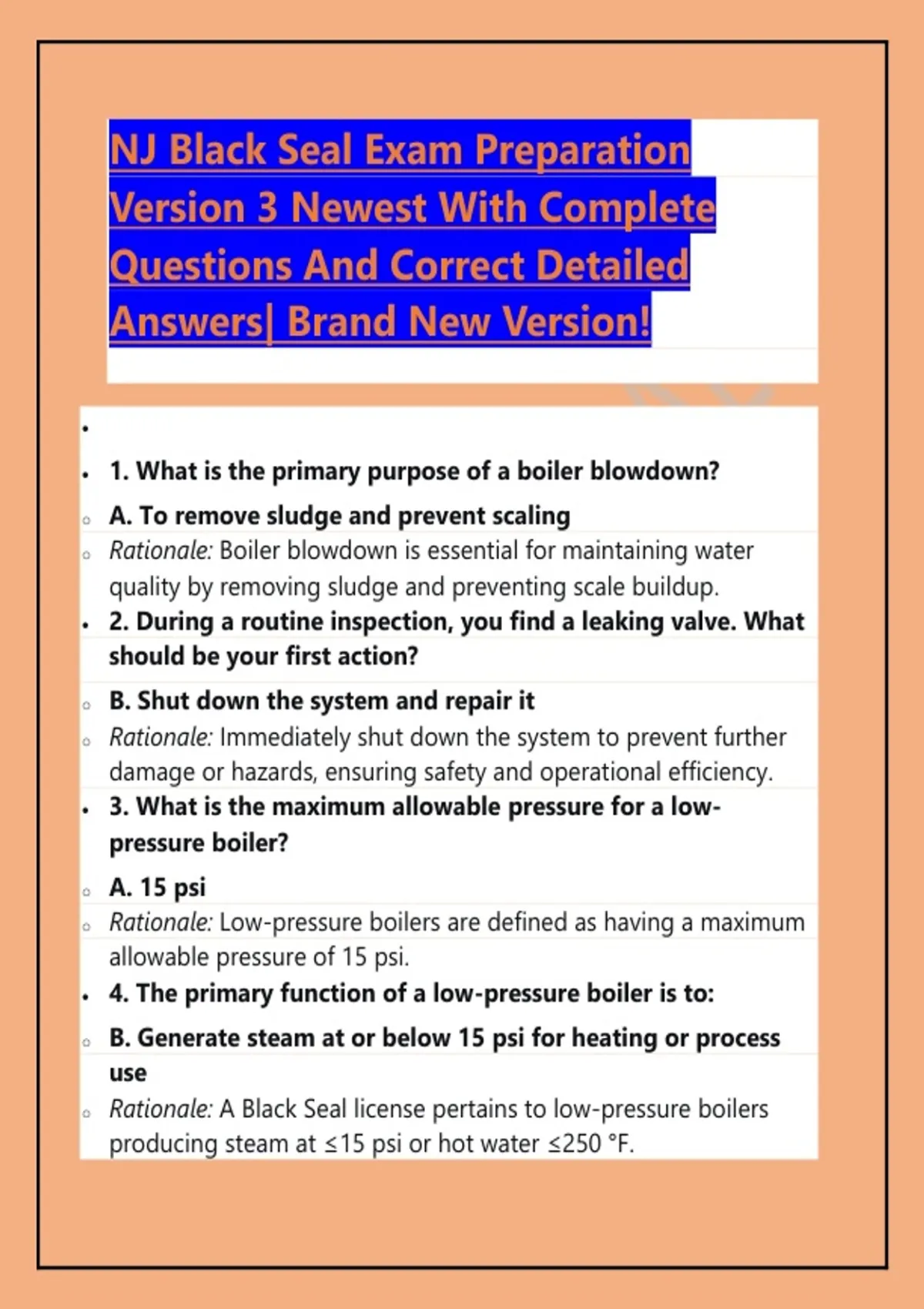

NJ Black Seal Exam Preparation
Version 3 Newest With Complete
Questions And Correct Detailed
Answers| Brand New Version!
1. What is the primary purpose of a boiler blowdown?
o A. To remove sludge and prevent scaling
o Rationale: Boiler blowdown is essential for maintaining water
quality by removing sludge and preventing scale buildup.
2. During a routine inspection, you find a leaking valve. What
should be your first action?
o B. Shut down the system and repair it
o Rationale: Immediately shut down the system to prevent further
damage or hazards, ensuring safety and operational efficiency.
3. What is the maximum allowable pressure for a low-
pressure boiler?
o A. 15 psi
o Rationale: Low-pressure boilers are defined as having a maximum
allowable pressure of 15 psi.
4. The primary function of a low-pressure boiler is to:
o B. Generate steam at or below 15 psi for heating or process
use
o Rationale: A Black Seal license pertains to low-pressure boilers
producing steam at ≤15 psi or hot water ≤250 °F.
, 5. Which device protects a boiler from excess pressure?
o B. Safety valve
o Rationale: The safety valve opens automatically to release steam
and prevent explosion if pressure rises beyond safe limits.
6. When a boiler is operating, the water level gauge glass
should be:
o A. Half-full or slightly above normal operating level
o Rationale: Proper visibility in the gauge ensures safe water level
and prevents overheating of tubes.
7. The purpose of a blowdown valve is to:
o B. Remove sediment and scale from the lowest part of the
boiler
o Rationale: Regular bottom blowdowns reduce solids accumulation
and protect the boiler from scale buildup.
8. Feedwater should enter the boiler:
o B. Below the normal waterline but above the heating surface
o Rationale: Feeding below the waterline avoids thermal shock and
maintains steady level control.
9. The maximum pressure allowed for a low-pressure hot-
water boiler is:
o C. 160 psi
o Rationale: A safety valve on a low pressure hot water boiler will
have a maximum setting of 160 psig.
10. What is the function of a dry pipe in a boiler?
o to remove moisture from the steam drum
o Rationale: A dry pipe removes moisture from the steam drum to
provide a better quality of steam.
11. One mechanical horsepower is equal to:
,o 33,000 ft-lb/min
o Rationale: One mechanical horsepower is equal to 33,000 ft-
lb/min.
12. What is the regulation corresponding to boiler, pressure
vessels and refrigeration systems in New Jersey?
o New Jersey Administrative Code (NJAC) 12:90
o Rationale: NJAC 12:90 is the primary regulation for these systems
in New Jersey.
13. What type of heat exchanger is commonly used in a
boiler?
o A. Shell and tube
o Rationale: Shell and tube heat exchangers are commonly used in
boilers to transfer heat between fluids.
14. What is the significance of maintaining proper
combustion air ratios?
o B. To ensure efficient fuel use
o Rationale: Correct ratios optimize combustion, reduce waste, and
minimize emissions.
15. In a steam heating system, what is the function of a
pressure relief valve?
o C. To relieve excess pressure
o Rationale: Its main function is to release excess pressure from the
system, thereby preventing potential explosions or damage.
16. In accordance with ASME CSD-1, where is the installation
of a manually operated remote shutdown switch or circuit
breaker to be located?
o Just outside the boiler room door, unless the door is on the
building exterior and it must be marked for easy
, identification and installed on every exit door of the boiler
room.
o Rationale: ASME CSD-1 standards specify the location and
marking requirements for remote shutdown switches for safety.
17. While making a round of your boiler room, the boiler
feedwater pump is making a strange noise. The pump casing
and the temperature of the water has risen above normal.
What would most likely cause this problem?
o pump cavitation issue
o Rationale: Cavitation can cause noise and increased temperatures
due to the formation and collapse of vapor bubbles.
18. What is the heating surface of a water-tube, with a
diameter of 3 1/2 inches and a length of 20 feet?
o 18.32 sq. ft
o Rationale: The calculation for the heating surface of a tube is
determined by its outside diameter and length.
19. The basic function of an automatic feedwater regulator on
a boiler is to:
o maintain proper water level
o Rationale: The automatic feedwater regulator ensures a consistent
and safe water level within the boiler.
20. If a one square inch column of water is one foot tall, how
much does it weigh?
o .433 lbs
o Rationale: The weight of a 12-inch column of water is a standard
conversion figure used in pressure calculations.
21. Where is the flame sensing device located on a boiler?
o front
