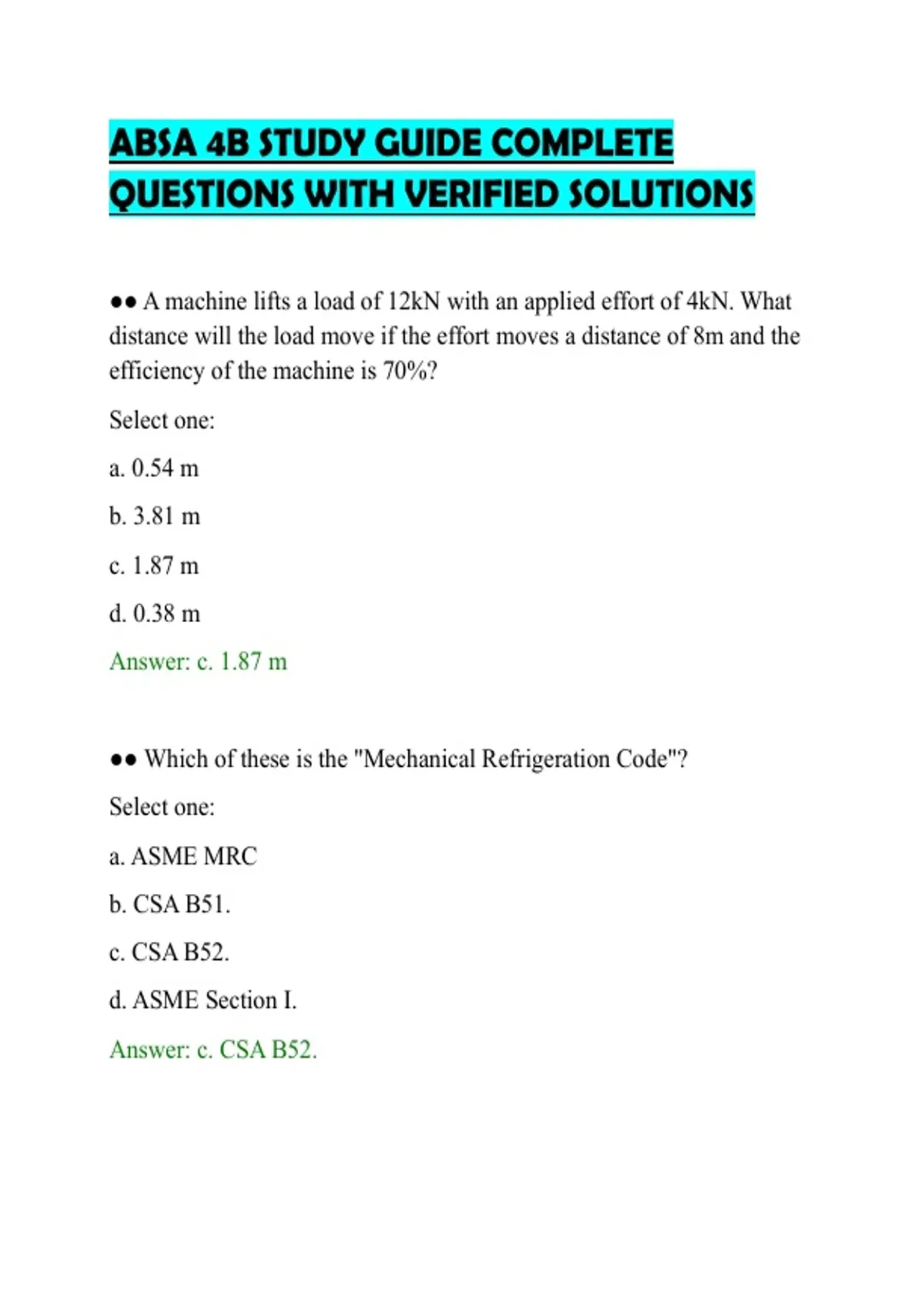

ABSA 4B STUDY GUIDE COMPLETE
QUESTIONS WITH VERIFIED SOLUTIONS
●● A machine lifts a load of 12kN with an applied effort of 4kN. What
distance will the load move if the effort moves a distance of 8m and the
efficiency of the machine is 70%?
Select one:
a. 0.54 m
b. 3.81 m
c. 1.87 m
d. 0.38 m
Answer: c. 1.87 m
●● Which of these is the "Mechanical Refrigeration Code"?
Select one:
a. ASME MRC
b. CSA B51.
c. CSA B52.
d. ASME Section I.
Answer: c. CSA B52.
,●● In order to ensure safe and continuous operation of a pressure
reducing valve, the valve station should have _________________.
Select one:
a. A safety valve on the high-pressure side
b. A bypass line, plus a safety valve and pressure gauge on the low-
pressure side
c. Thermometers on the inlet and outlet piping
d. A strainer immediately downstream of the valve
Answer: b. A bypass line, plus a safety valve and pressure gauge on the
low-pressure side
●● If the power dissipated by a resistor is 1.2 kW when supplied with
110 V, the amperage will be _____ A. Select one:
a. 91.666
b. 19.006
c. 10.91
d. 132
Answer: c. 10.91
●● The inclined "U" tube manometer:
Select one:
a. Will measure pressure in MPa
b. Can only be used with mercury
,c. Is more accurate than the "U" tube manometer
d. Is more difficult to read than the U-tube manometer
Answer: c. Is more accurate than the "U" tube manometer
●● A valve which gives good throttling action, takes less actuator force,
but does not seal well is a: Select one:
a. Double seated valve
b. Reverse acting valve
c. Single seated valve
d. Direct acting valve
Answer: a. Double seated valve
●● The main component of any computer is the:
Select one:
a. Keyboard
b. Screen
c. Memory
d. Central processing unit
Answer: d. Central processing unit
●● In most sizes of pipe, Schedule 40 corresponds to _____ wall
thickness. Select one:
a. Welded only
, b. Threaded only
c. Extra strong (XS)
d. Standard
Answer: d. Standard
●● A reducing agent or fuel could be:
Select one:
a. Carbon monoxide
b. A heavy metal oxide
c. Hydrogen peroxide
d. Concentrated Sulphuric acid
Answer: a. Carbon monoxide
●● A control device which will change one form of energy into another
form of energy is the: Select one:
a. Logic device
b. Primary element
c. Transducer
d. Transmitter
Answer: c. Transducer
●● The __________ valve requires specific and routine lubrication.
