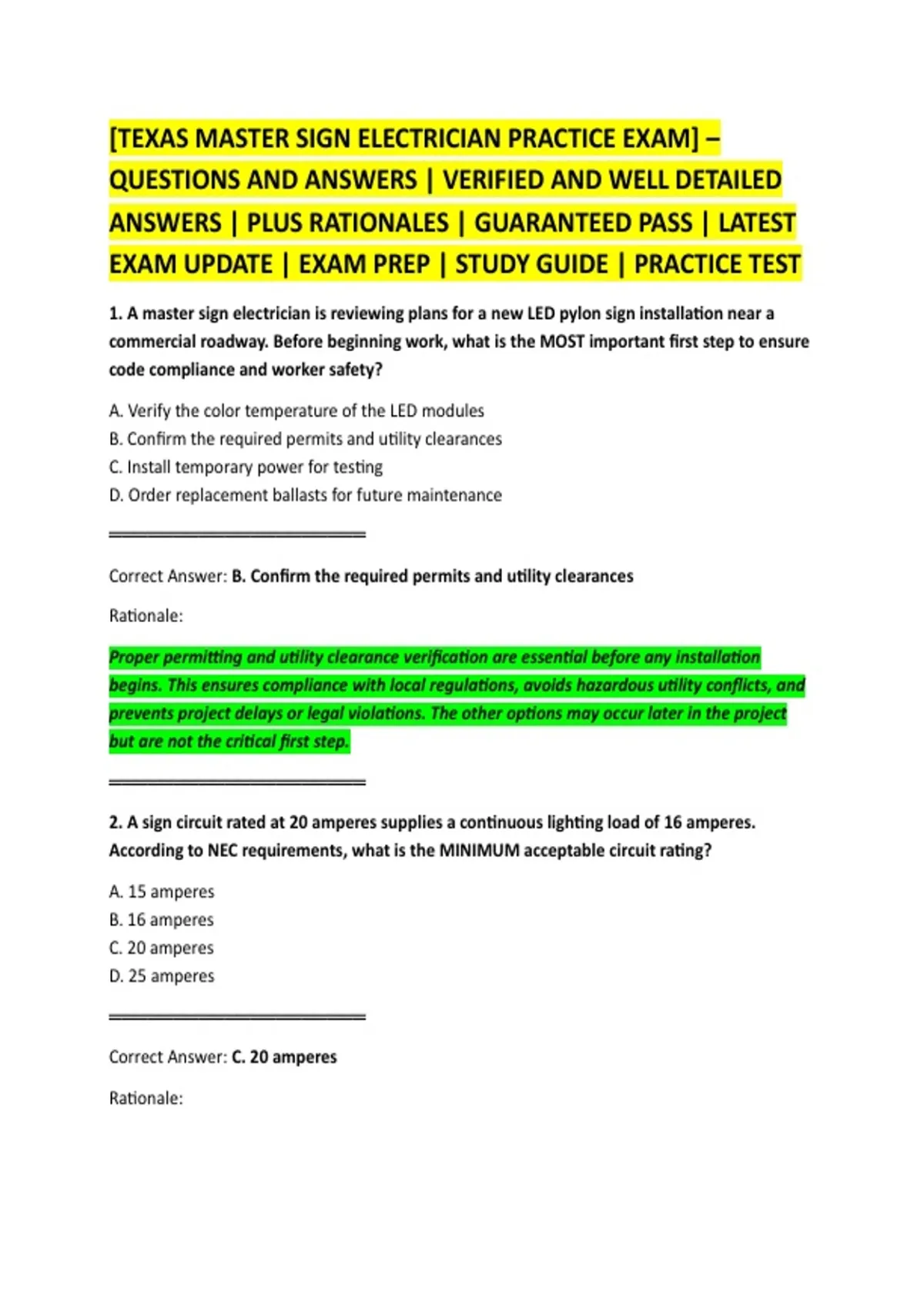

[TEXAS MASTER SIGN ELECTRICIAN PRACTICE EXAM] –
QUESTIONS AND ANSWERS | VERIFIED AND WELL DETAILED
ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST
EXAM UPDATE | EXAM PREP | STUDY GUIDE | PRACTICE TEST
1. A master sign electrician is reviewing plans for a new LED pylon sign installation near a
commercial roadway. Before beginning work, what is the MOST important first step to ensure
code compliance and worker safety?
A. Verify the color temperature of the LED modules
B. Confirm the required permits and utility clearances
C. Install temporary power for testing
D. Order replacement ballasts for future maintenance
════════════════════
Correct Answer: B. Confirm the required permits and utility clearances
Rationale:
Proper permitting and utility clearance verification are essential before any installation
begins. This ensures compliance with local regulations, avoids hazardous utility conflicts, and
prevents project delays or legal violations. The other options may occur later in the project
but are not the critical first step.
════════════════════
2. A sign circuit rated at 20 amperes supplies a continuous lighting load of 16 amperes.
According to NEC requirements, what is the MINIMUM acceptable circuit rating?
A. 15 amperes
B. 16 amperes
C. 20 amperes
D. 25 amperes
════════════════════
Correct Answer: C. 20 amperes
Rationale:
,Continuous loads must not exceed 80% of the branch-circuit rating. A 20-amp circuit safely
supports a 16-amp continuous load because 16 amperes equals 80% of 20 amperes. A 15-amp
circuit would be undersized, while 25 amperes exceeds the minimum requirement.
════════════════════
3. During troubleshooting, a sign electrician discovers repeated breaker trips after rainfall.
Which issue is MOST likely causing the problem?
A. Excessive conductor length
B. Open neutral connection
C. Moisture intrusion creating a ground fault
D. Low ambient temperature
════════════════════
Correct Answer: C. Moisture intrusion creating a ground fault
Rationale:
Rain-related breaker trips commonly indicate moisture entering enclosures or raceways,
creating leakage current or ground faults. Excessive conductor length and low temperature
generally would not cause immediate tripping after rain events.
════════════════════
4. A customer requests installation of a sign transformer inside a concealed wall cavity to
improve aesthetics. What should the master sign electrician do?
A. Approve the request if the transformer is low voltage
B. Install the transformer with additional insulation
C. Refuse because transformers must remain accessible
D. Allow installation only with written customer approval
════════════════════
Correct Answer: C. Refuse because transformers must remain accessible
Rationale:
Electrical equipment requiring servicing or inspection must remain accessible under NEC
requirements. Concealing a transformer behind finished walls creates safety and maintenance
violations regardless of customer preference.
════════════════════
,5. Which conductor type is MOST suitable for wet-location sign raceways exposed to outdoor
weather conditions?
A. NM cable
B. THWN conductors
C. Speaker wire
D. SE cable
════════════════════
Correct Answer: B. THWN conductors
Rationale:
THWN conductors are specifically rated for wet locations and are commonly used in outdoor
raceways. NM cable and speaker wire are unsuitable for wet environments, while SE cable is
not typically intended for sign raceway applications.
════════════════════
6. A sign installation includes metal parts likely to become energized under fault conditions.
What protective measure is REQUIRED?
A. Double insulation only
B. Surge suppression
C. Bonding and grounding of metal components
D. Installation of a disconnect within 100 feet
════════════════════
Correct Answer: C. Bonding and grounding of metal components
Rationale:
Bonding and grounding provide a low-impedance path for fault current, reducing shock
hazards and ensuring overcurrent devices operate properly. Surge suppression alone does not
eliminate fault-current risks.
════════════════════
7. A master sign electrician notices an apprentice repeatedly bypassing lockout/tagout
procedures to save time. What is the BEST response?
A. Ignore the issue if no injury occurred
B. Immediately correct the behavior and reinforce safety procedures
, C. Report the apprentice after project completion
D. Allow the practice during low-voltage servicing only
════════════════════
Correct Answer: B. Immediately correct the behavior and reinforce safety procedures
Rationale:
Lockout/tagout violations create severe injury and liability risks. Immediate correction
protects workers and reinforces a culture of safety compliance. Delaying action or allowing
exceptions is unacceptable.
════════════════════
8. What is the PRIMARY purpose of a disconnecting means for an electric sign?
A. Improve lighting brightness
B. Reduce harmonic distortion
C. Provide a means to safely isolate power
D. Increase transformer efficiency
════════════════════
Correct Answer: C. Provide a means to safely isolate power
Rationale:
Disconnects allow safe servicing and emergency shutdown of sign equipment. They are a
critical safety component rather than a performance-enhancement device.
════════════════════
9. A 277-volt sign circuit is being installed in a commercial building. Which PPE consideration
is MOST important before energized testing begins?
A. Cotton gloves only
B. Arc-flash-rated PPE appropriate for the hazard level
C. Safety glasses only
D. Hearing protection only
════════════════════
Correct Answer: B. Arc-flash-rated PPE appropriate for the hazard level
Rationale:
