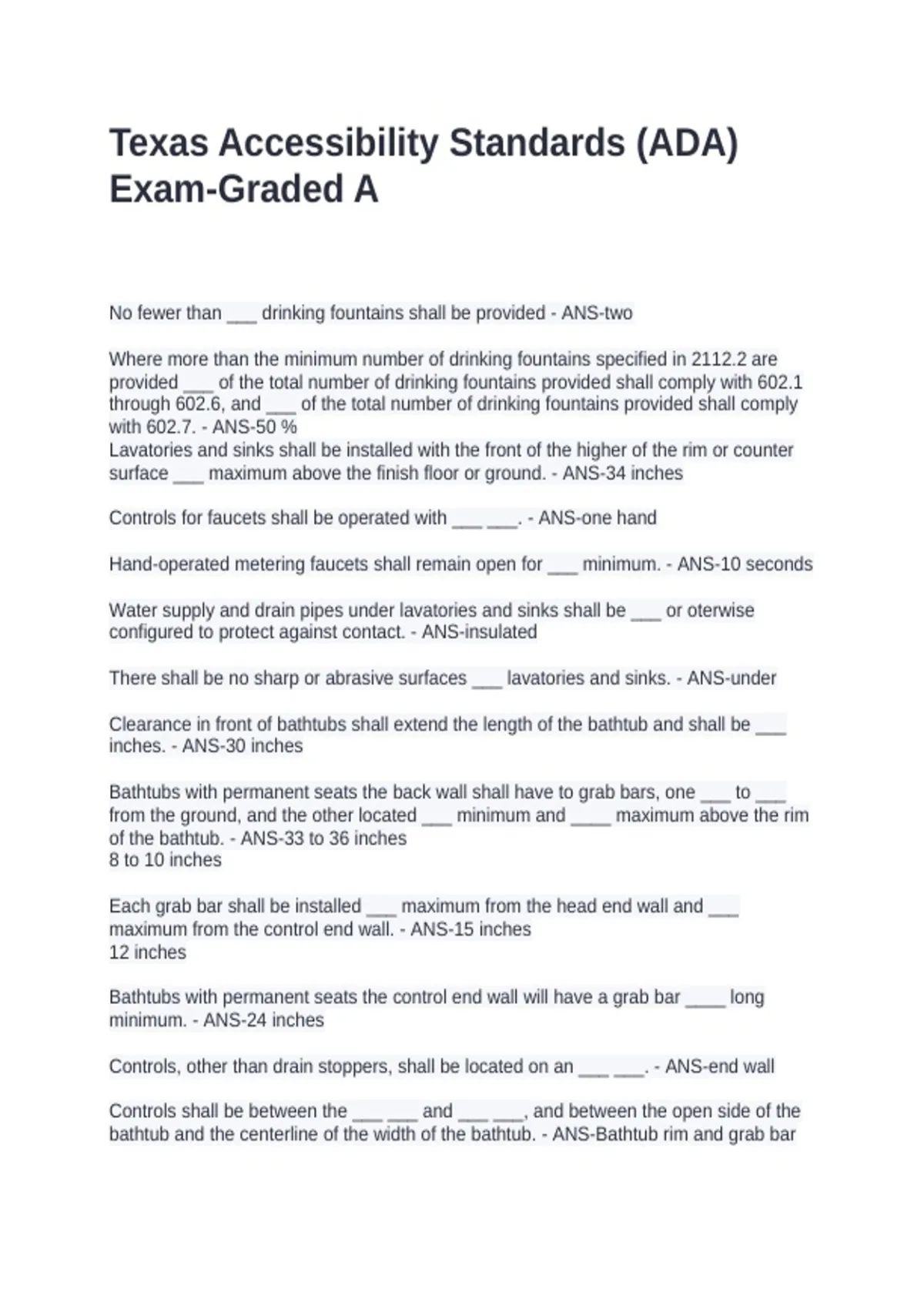

Texas Accessibility Standards (ADA)
Exam-Graded A
No fewer than ___ drinking fountains shall be provided - ANS-two
Where more than the minimum number of drinking fountains specified in 2112.2 are
provided ___ of the total number of drinking fountains provided shall comply with 602.1
through 602.6, and ___ of the total number of drinking fountains provided shall comply
with 602.7. - ANS-50 %
Lavatories and sinks shall be installed with the front of the higher of the rim or counter
surface ___ maximum above the finish floor or ground. - ANS-34 inches
Controls for faucets shall be operated with ___ ___. - ANS-one hand
Hand-operated metering faucets shall remain open for ___ minimum. - ANS-10 seconds
Water supply and drain pipes under lavatories and sinks shall be ___ or oterwise
configured to protect against contact. - ANS-insulated
There shall be no sharp or abrasive surfaces ___ lavatories and sinks. - ANS-under
Clearance in front of bathtubs shall extend the length of the bathtub and shall be ___
inches. - ANS-30 inches
Bathtubs with permanent seats the back wall shall have to grab bars, one ___ to ___
from the ground, and the other located ___ minimum and ____ maximum above the rim
of the bathtub. - ANS-33 to 36 inches
8 to 10 inches
Each grab bar shall be installed ___ maximum from the head end wall and ___
maximum from the control end wall. - ANS-15 inches
12 inches
Bathtubs with permanent seats the control end wall will have a grab bar ____ long
minimum. - ANS-24 inches
Controls, other than drain stoppers, shall be located on an ___ ___. - ANS-end wall
Controls shall be between the ___ ___ and ___ ___, and between the open side of the
bathtub and the centerline of the width of the bathtub. - ANS-Bathtub rim and grab bar
, A shower spray unit with a hose of ___ long minimum that can be used as a fixed-
position shower head and as a hand-held shower shall be provided. - ANS-59 inches
The shower spray unit shall have an ___ ___ with a non-positive shut off. - ANS-on/off
control
Transfer type shower compartments shall be ___by ___ clear inside dimensions
measured at the center points of opposing sides and shall have a ___ wide minimum
entry on the face of the shower compartment. - ANS-36 inches
Standard roll-in type shower compartments shall be ___ wide minimum by ___ deep
minimum clear inside dimensions measured at center points of opposing sides and shall
have a ___ wide minimum entry on the face of the shower compartment. - ANS-30
inches
60 inches
60 inches
In a transfer type compartments, grab bars shall be provided across the control wall and
back wall to a point ___ from the control wall - ANS-18 inches
Standard Roll-in type shower compartments where a seat is provided grab bars shall be
provided on the back wall and the side wall opposite the seat. Grab bars ___ ___ be
provided above the seat. - ANS-shall not
Standard roll-in type shower where a seat is not provided , grab bars shall be provided
on ____ walls - ANS-three
Standard roll-in type shower where a seat is not provided , grab bars wall be installed
___ maximum from adjacent walls - ANS-6 inches
where sinks are provided, at least ___, but no fewer than one, of each type provided in
each accessible room or space shall comply with 6026. - ANS-5 %
Where toilet rooms/bathing rooms provided, each toilet room/bathing room shall comply
with 603. Exceptions are? - ANS-1) alterations where it is technically infeasible
2) where exceptions for alterations to qualified historical buildings
3) where multiple single user portable toile/bathing units are provided.
***4) Where multiple single user toilet rooms are clustered at a single location, no more
than 50% of the single user toilet rooms for each use at each cluster shall be required to
comply with 603.
Operable parts shall be operable with ___ ___ and shall not require tight grasping,
pinching, or twisting of the wrist. - ANS-one hand
