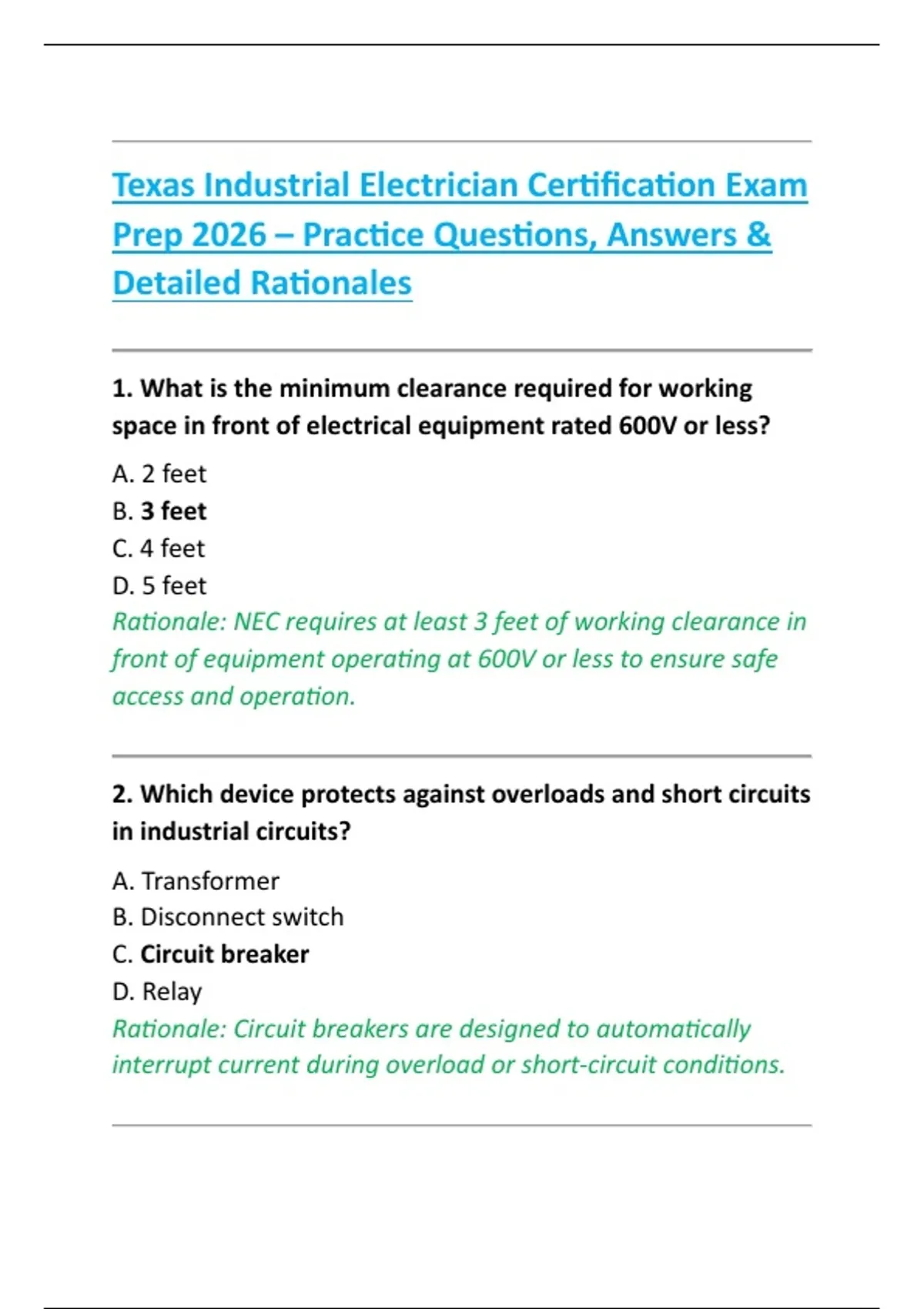

Texas Industrial Electrician Certification Exam
Prep 2026 – Practice Questions, Answers &
Detailed Rationales
1. What is the minimum clearance required for working
space in front of electrical equipment rated 600V or less?
A. 2 feet
B. 3 feet
C. 4 feet
D. 5 feet
Rationale: NEC requires at least 3 feet of working clearance in
front of equipment operating at 600V or less to ensure safe
access and operation.
2. Which device protects against overloads and short circuits
in industrial circuits?
A. Transformer
B. Disconnect switch
C. Circuit breaker
D. Relay
Rationale: Circuit breakers are designed to automatically
interrupt current during overload or short-circuit conditions.
,3. What color is typically used for grounding conductors in
industrial wiring?
A. White
B. Red
C. Blue
D. Green or bare copper
Rationale: Grounding conductors are identified by green
insulation or are left bare per NEC standards.
4. What is the main purpose of a motor starter?
A. Increase voltage
B. Reduce current
C. Safely start and stop a motor while providing overload
protection
D. Convert AC to DC
Rationale: Motor starters control motor operation and
protect against overload conditions.
5. What is the maximum voltage drop recommended for
branch circuits?
A. 1%
B. 2%
C. 3%
D. 5%
Rationale: NEC recommends a maximum 3% voltage drop for
branch circuits for efficiency and equipment performance.
,6. Which instrument is used to measure insulation
resistance?
A. Multimeter
B. Clamp meter
C. Megohmmeter
D. Ohmmeter
Rationale: A megohmmeter applies high voltage to test
insulation integrity.
7. What is the primary function of a transformer?
A. Store energy
B. Change voltage levels
C. Convert DC to AC
D. Control frequency
Rationale: Transformers step voltage up or down using
electromagnetic induction.
8. Which type of current is most commonly used in
industrial power systems?
A. DC
B. Pulsating DC
C. AC three-phase
D. Single-phase DC
Rationale: Three-phase AC is standard in industrial systems
due to efficiency and power delivery.
, 9. What does a fuse protect against?
A. Overvoltage only
B. Ground faults only
C. Overcurrent conditions
D. Frequency variation
Rationale: Fuses melt under excessive current to protect
equipment and wiring.
10. What is the function of a ground fault circuit interrupter
(GFCI)?
A. Prevent overload
B. Increase voltage stability
C. Protect against electric shock by detecting leakage
current
D. Regulate frequency
Rationale: GFCIs detect imbalance between hot and neutral
conductors and trip to prevent shock.
11. What is the standard frequency of power in U.S.
industrial systems?
A. 25 Hz
B. 40 Hz
C. 60 Hz
D. 50 Hz
