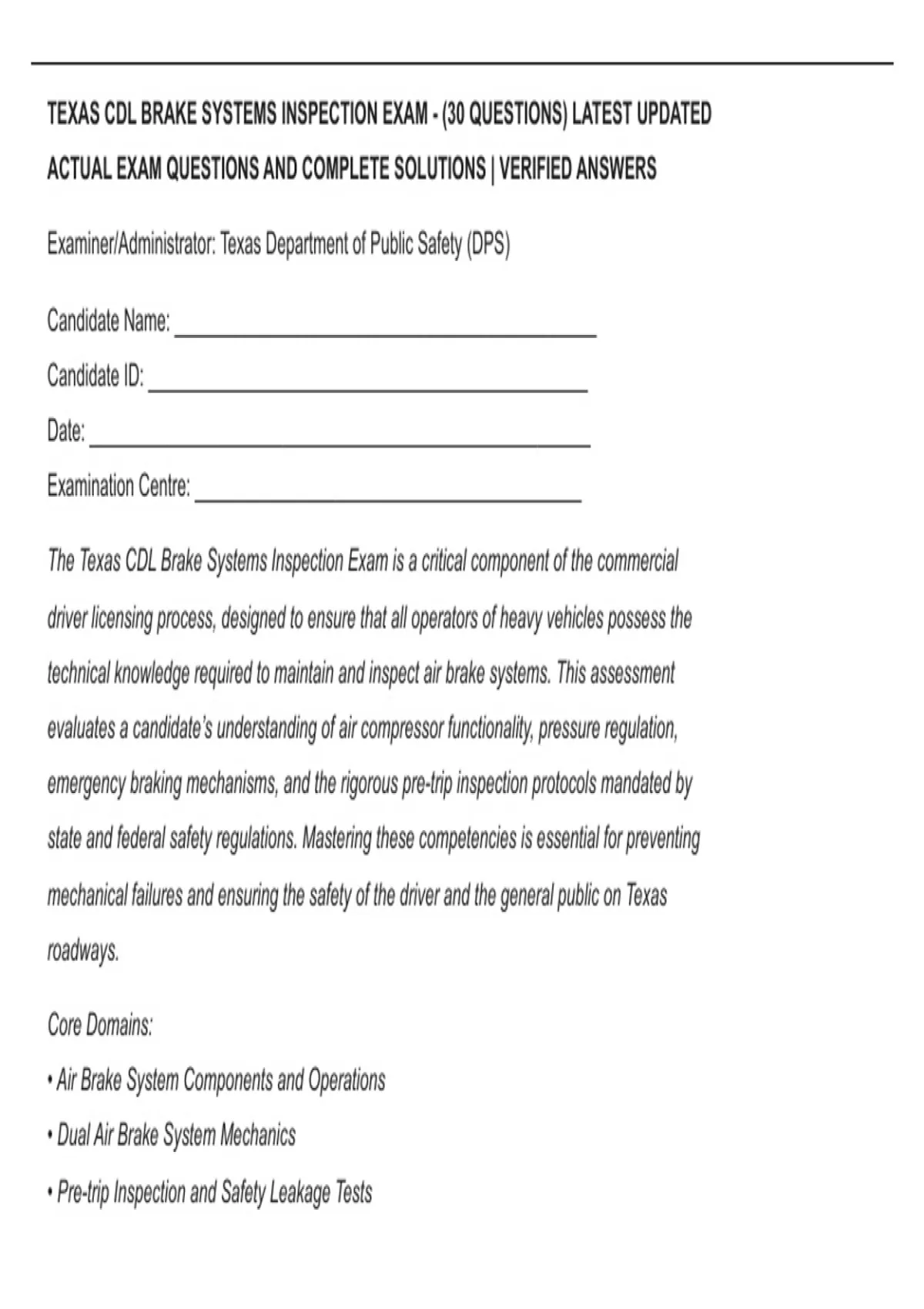

TEXAS CDL BRAKE SYSTEMS INSPECTION EXAM - (30 QUESTIONS) LATEST UPDATED
ACTUAL EXAM QUESTIONS AND COMPLETE SOLUTIONS | VERIFIED ANSWERS
Examiner/Administrator: Texas Department of Public Safety (DPS)
Candidate Name: ________________________________________________
Candidate ID: __________________________________________________
Date: _________________________________________________________
Examination Centre: ____________________________________________
The Texas CDL Brake Systems Inspection Exam is a critical component of the commercial
driver licensing process, designed to ensure that all operators of heavy vehicles possess the
technical knowledge required to maintain and inspect air brake systems. This assessment
evaluates a candidate’s understanding of air compressor functionality, pressure regulation,
emergency braking mechanisms, and the rigorous pre-trip inspection protocols mandated by
state and federal safety regulations. Mastering these competencies is essential for preventing
mechanical failures and ensuring the safety of the driver and the general public on Texas
roadways.
Core Domains:
• Air Brake System Components and Operations
• Dual Air Brake System Mechanics
• Pre-trip Inspection and Safety Leakage Tests
,• Emergency and Parking Brake Systems
• Braking Techniques and Heat Management
Instructions to Candidates:
This examination consists of 30 multiple-choice questions representing the first section of the
comprehensive air brakes assessment. You are allotted 45 minutes to complete this section.
Each question has four possible answers; select the most accurate option. Ensure your
candidate information is correctly entered above. Maintain silence throughout the duration of
the test. All responses must be recorded clearly. Approximate total exam questions for the full
certification: 25–50 questions depending on specific vehicle endorsements.
DO NOT OPEN THIS BOOKLET UNTIL INSTRUCTED.
Disclaimer: This examination is an original simulation created for educational purposes,
inspired by the official Texas CDL testing format and subject matter. It does not contain actual
or leaked test questions.
Q1. During a walk-around inspection of the air brake system, you notice a slack adjuster has
moved more than one inch where the pushrod attaches to it. What is the most appropriate
action?
A. Continue the trip but apply the brakes more gently to avoid overheating.
B. Adjust the slack adjuster manually if it is an automatic type.
,C. Report the vehicle for adjustment, as it may be out of legal alignment.
D. Lubricate the pushrod and re-test the pressure.
Correct Answer: 🔴 C. Report the vehicle for adjustment, as it may be out of legal alignment.
Explanation: 🔹 In air brake systems, if the pushrod stroke exceeds the legal limit (typically
more than one inch on a standard chamber), the braking force is significantly reduced. Option
A is dangerous because faulty brakes cannot be compensated for by driving style. Option B is
incorrect because automatic slack adjusters should only be adjusted by qualified mechanics to
identify why they failed to self-adjust. Option D does not address the mechanical misalignment
or safety risk.
Q2. What is the primary purpose of the alcohol evaporator in some air brake systems?
A. To increase the boiling point of the brake fluid.
B. To reduce the risk of ice forming in air brake valves during cold weather.
C. To clean the air of oil and carbon deposits before it enters the tanks.
D. To lubricate the internal seals of the air compressor.
Correct Answer: 🔴 B. To reduce the risk of ice forming in air brake valves during cold weather.
Explanation: 🔹 Moisture in air lines can freeze in cold temperatures, causing brake failure; the
alcohol evaporator introduces alcohol vapor to prevent this. Option A is incorrect as air brakes
use compressed air, not hydraulic fluid. Option C describes the function of an air dryer. Option
D is incorrect because oil is handled by the compressor's own lubrication system.
, Q3. The air compressor governor is responsible for which of the following actions?
A. Controlling the speed of the engine to match air demand.
B. Monitoring the pressure in the brake chambers during a stop.
C. Controlling when the air compressor pumps air into the storage tanks.
D. Automatically applying the emergency brakes if a leak is detected.
Correct Answer: 🔴 C. Controlling when the air compressor pumps air into the storage tanks.
Explanation: 🔹 The governor monitors tank pressure and "cuts in" the compressor when
pressure drops or "cuts out" when it reaches the maximum level. Option A is incorrect as the
governor affects the compressor, not engine RPM. Option B refers to the function of a pressure
gauge or brake valve. Option D describes the tractor protection valve or spring brake
mechanism.
Q4. Which of the following is the correct procedure for testing the low air pressure warning
signal?
A. Turn the engine off, turn the electrical power on, and step on and off the brake pedal.
B. Start the engine and wait for the pressure to reach 120 psi.
C. Apply the parking brake and accelerate the engine to 1500 RPM.
D. Disconnect the air lines from the trailer while the engine is running.
Correct Answer: 🔴 A. Turn the engine off, turn the electrical power on, and step on and off the
brake pedal.
