Exam (elaborations)

Vehicle Communication System 2026 – Complete Automotive Networking, CAN Bus Diagnostics & Electronic Control Systems Study Guide

0.0
(0 reviews)
- sold
3 pages
2025/2026 Written for academic year
Institution Vehicle Communication System
Course Vehicle Communication System
Document preview thumbnail
Preview 1 out of 3 pages

Comprehensive Vehicle Communication System 2026 study guide covering automotive networking, CAN Bus diagnostics, LIN systems, FlexRay, Automotive Ethernet, ECU communication, onboard diagnostics, electronic control systems, wiring networks, fault detection, and vehicle data communication. Ideal for automotive technology students, mechanics, technicians, and certification exam preparation.

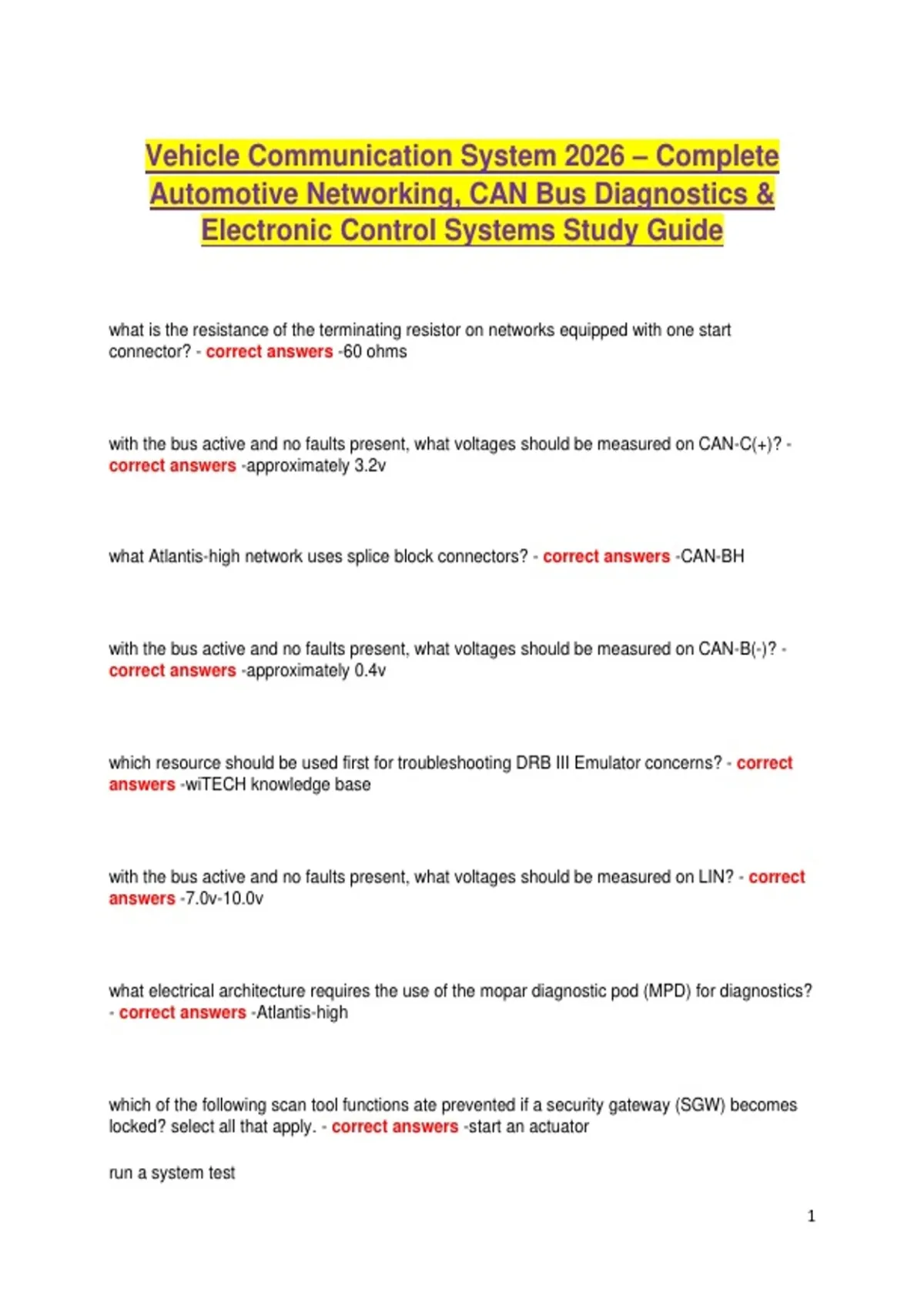

Content preview

Vehicle Communication System 2026 – Complete
Automotive Networking, CAN Bus Diagnostics &
Electronic Control Systems Study Guide


what is the resistance of the terminating resistor on networks equipped with one start
connector? - correct answers -60 ohms




with the bus active and no faults present, what voltages should be measured on CAN-C(+)? -
correct answers -approximately 3.2v




what Atlantis-high network uses splice block connectors? - correct answers -CAN-BH




with the bus active and no faults present, what voltages should be measured on CAN-B(-)? -
correct answers -approximately 0.4v




which resource should be used first for troubleshooting DRB III Emulator concerns? - correct
answers -wiTECH knowledge base




with the bus active and no faults present, what voltages should be measured on LIN? - correct
answers -7.0v-10.0v




what electrical architecture requires the use of the mopar diagnostic pod (MPD) for diagnostics?
- correct answers -Atlantis-high




which of the following scan tool functions ate prevented if a security gateway (SGW) becomes
locked? select all that apply. - correct answers -start an actuator

run a system test

1
