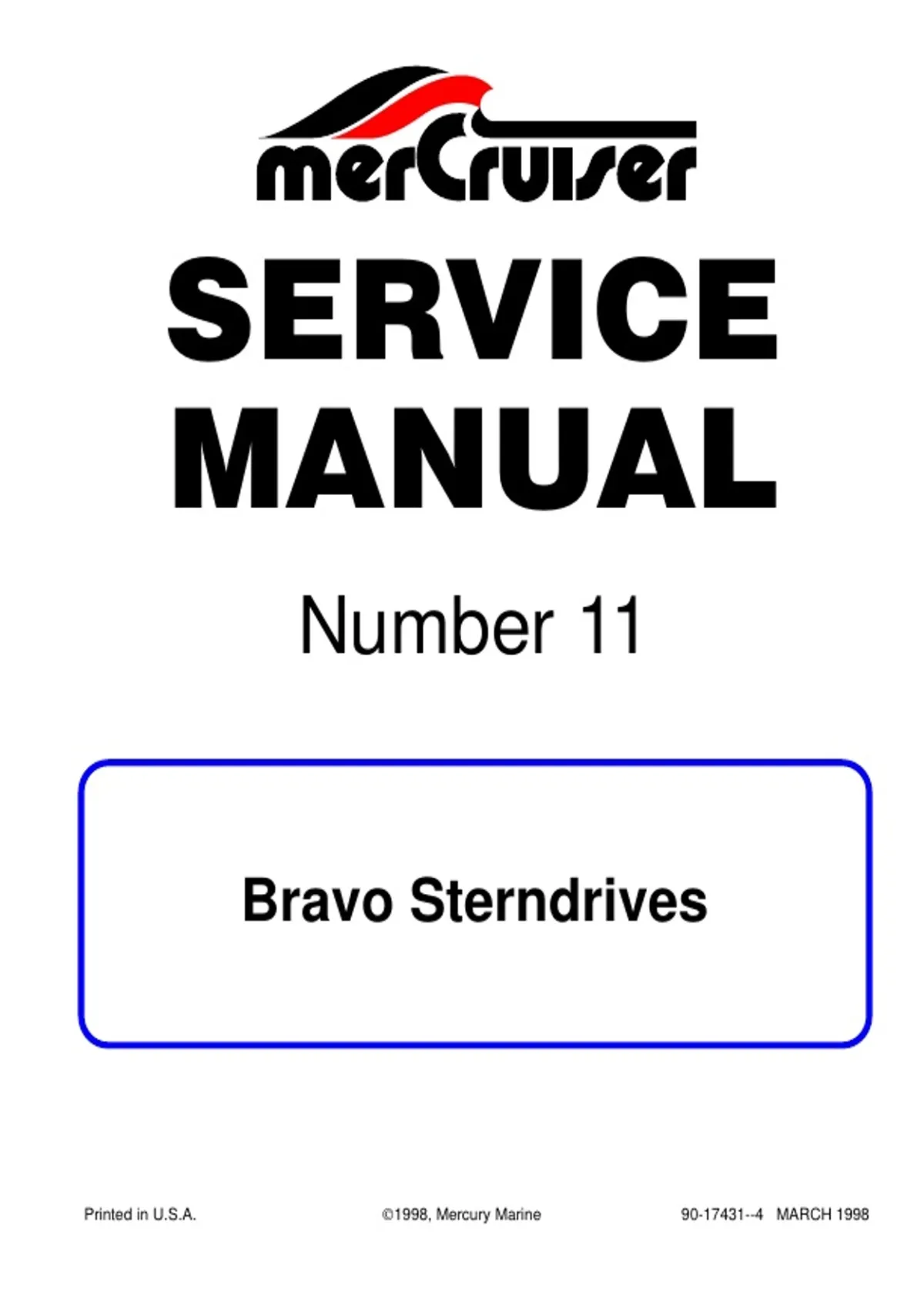

SERVICE
MANUAL
Number 11
Bravo Sterndrives
Printed in U.S.A. 1998, Mercury Marine 90-17431--4 MARCH 1998
, 90-17431--4 MARCH 1998
SERVICE MANUAL NUMBER 11
MerCruiser #11 Bravo Sterndrives 90-17431--4
MerCruiser #11 Bravo Sterndrives 90-17431--4
BRAVO STERNDRIVES
Page 0
,SERVICE MANUAL NUMBER 11 BRAVO STERNDRIVES
Notice
Throughout this publication “Warnings” and “Cautions” (accompanied by the International
HAZARD symbol ! ) are used to alert the mechanic to special instructions concerning a
particular service or operation that may be hazardous if performed incorrectly or carelessly
- OBSERVE THEM CAREFULLY! These “Safety Alerts” alone cannot eliminate the hazards
that they signal. Strict compliance to these special instructions when performing the service,
plus “common sense” operation, are major accident prevention measures.
WARNING
WARNING - Hazards or unsafe practices which COULD result in severe personal in-
jury or death.
CAUTION
CAUTION - Hazards or unsafe practices which could result in minor personal injury
or product or property damage.
IMPORTANT: Indicates information or instructions that are necessary for proper
operation and/or maintenance.
Notice To Users of This Manual
This service manual has been written and published by the service department of the
manufacturer to aid our dealers’ mechanics and company service personnel when servicing
the product described herein. It is assumed that these personnel are familiar with the servic-
ing procedures of this product, or like or similar products. That they have been trained in the
recommended servicing procedures of these products which includes the use of mechan-
ics’ common hand tools from other suppliers.
We could not possibly know of and advise the service trade of all conceivable procedures
by which a service might be performed and of all possible hazards and/or results of each
method. We have not undertaken any such wide evaluation. Therefore, anyone who uses
a service procedure and/or tool which is not recommended by the manufacturer, first must
completely satisfy himself that neither his nor the product’s safety will be endangered by the
service procedure selected.
All information, illustrations, and specifications contained in this manual are based on the
latest product information available at time of publication.
As required, revisions to this manual will be sent to all dealers contracted by us to sell and/or
service these products.
90-17431--4 MARCH 1998 Page i
, BRAVO STERNDRIVES SERVICE MANUAL NUMBER 11
Replacement Parts
WARNING
Electrical system components on gasoline engines and MerCruiser Sterndrives are
designed and manufactured to comply with U.S. Coast Guard Rules and Regula-
tions to minimize risks of fire or explosion.
Use of replacement electrical systems components, which do not comply to these
rules and regulations, could result in a fire or explosion hazard and should be avoi-
ded.
When servicing electrical systems, it is extremely important that all components
are properly installed and tightened. If not, any electrical component opening
would permit sparks to ignite fuel vapors from fuel system leaks, if they exist or de-
velop.
WARNING
Electrical system components on diesel engines are not external ignition pro-
tected. DO NOT STORE OR UTILIZE GASOLINE ON BOATS EQUIPPED WITH THESE
ENGINES, UNLESS PROVISIONS HAVE BEEN MADE TO EXCLUDE GASOLINE VA-
PORS FROM ENGINE COMPARTMENT (ref: 33 CFR). Failure to comply could result
in fire, explosion and/or severe personal injury.
Models Covered in This Manual
MODEL SERIAL NUMBER
Bravo One Sterndrive Unit B664190 and Above
Bravo Two Sterndrive Unit B892613 and Above
Bravo Three Sterndrive Unit D763691 and Above
Bravo Transom Assembly (Standard) * B673048 and Above
Bravo Transom Assembly (High Performance) D796083 and Above
Bravo Transom Assembly (Magnum) K104738 and Above
* Some “Standard” Bravo Transom Assemblies could have been converted to “High Performance” Transom As-
semblies by use of a High Performance Gimbal Ring Kit (822374A2). Refer to Transom Assembly sections of
this manual for identification information.
NOTICE
Refer to appropriate engine service manual for engine repair.
Page ii 90-17431--4 MARCH 1998
