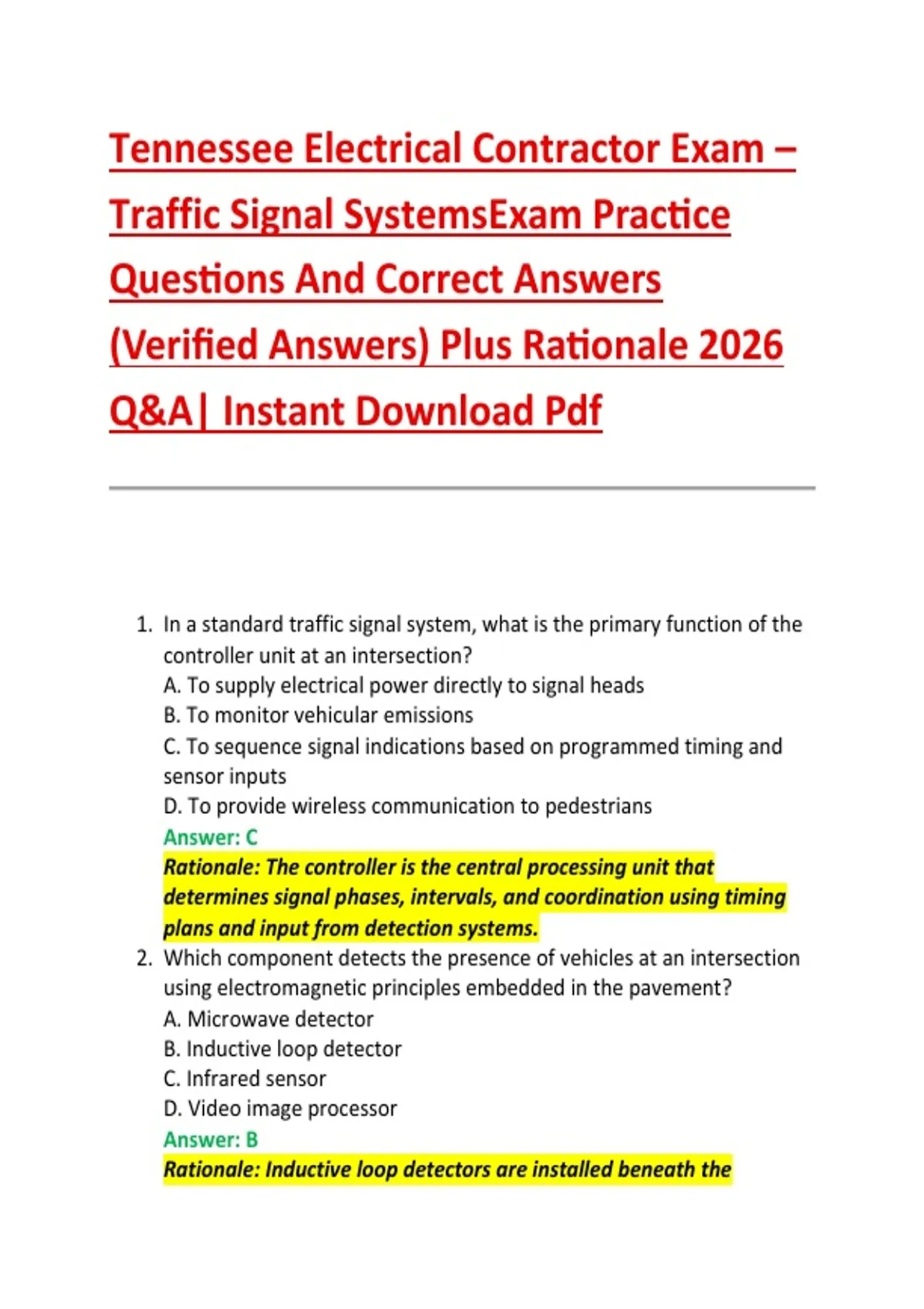

Tennessee Electrical Contractor Exam –
Traffic Signal SystemsExam Practice
Questions And Correct Answers
(Verified Answers) Plus Rationale 2026
Q&A| Instant Download Pdf
1. In a standard traffic signal system, what is the primary function of the
controller unit at an intersection?
A. To supply electrical power directly to signal heads
B. To monitor vehicular emissions
C. To sequence signal indications based on programmed timing and
sensor inputs
D. To provide wireless communication to pedestrians
Answer: C
Rationale: The controller is the central processing unit that
determines signal phases, intervals, and coordination using timing
plans and input from detection systems.
2. Which component detects the presence of vehicles at an intersection
using electromagnetic principles embedded in the pavement?
A. Microwave detector
B. Inductive loop detector
C. Infrared sensor
D. Video image processor
Answer: B
Rationale: Inductive loop detectors are installed beneath the
, pavement and detect changes in inductance caused by metal vehicles
passing over them.
3. What is the typical operating voltage for most traffic signal systems in
the United States?
A. 12 volts AC
B. 24 volts DC
C. 120 volts AC
D. 480 volts AC
Answer: C
Rationale: Traffic signal systems commonly operate on 120 VAC,
which is standard for control equipment and signal indications.
4. Which standard governs the design and operation of traffic control
devices in the United States?
A. NEC
B. OSHA
C. MUTCD
D. IEEE
Answer: C
Rationale: The Manual on Uniform Traffic Control Devices (MUTCD)
establishes national standards for traffic signals, signs, and
markings.
5. What is the purpose of a load switch in a traffic signal controller
cabinet?
A. To regulate voltage levels
B. To control current flow to signal lamps based on controller
commands
C. To store electrical energy
D. To detect vehicle presence
Answer: B
Rationale: Load switches receive low-voltage control signals from the
controller and switch high-voltage power to the signal heads
accordingly.
6. Which type of signal indication is displayed to allow vehicles to
proceed with caution while yielding to oncoming traffic?
A. Solid green
, B. Flashing red
C. Flashing yellow arrow
D. Solid red
Answer: C
Rationale: A flashing yellow arrow permits turns after yielding,
indicating caution rather than full right-of-way.
7. What is the primary function of a conflict monitor unit (CMU) in a
traffic signal system?
A. To detect pedestrian movements
B. To ensure no conflicting green signals occur simultaneously
C. To measure traffic flow speed
D. To regulate voltage levels
Answer: B
Rationale: The CMU monitors signal outputs and prevents unsafe
conditions by detecting conflicting green indications.
8. Which type of cable is commonly used for interconnecting signal
heads and controller cabinets?
A. Coaxial cable
B. Fiber optic cable
C. Multi-conductor signal cable
D. Twisted pair Ethernet cable
Answer: C
Rationale: Multi-conductor cables are designed specifically for traffic
signal wiring, carrying multiple control circuits.
9. What is the function of a pedestrian push button?
A. To activate emergency signals
B. To request a pedestrian crossing phase
C. To override controller timing
D. To adjust signal brightness
Answer: B
Rationale: Pedestrian push buttons signal the controller to include a
pedestrian phase in the signal cycle.
10. Which signal indication requires vehicles to come to a complete
stop before proceeding when safe?
A. Flashing yellow
