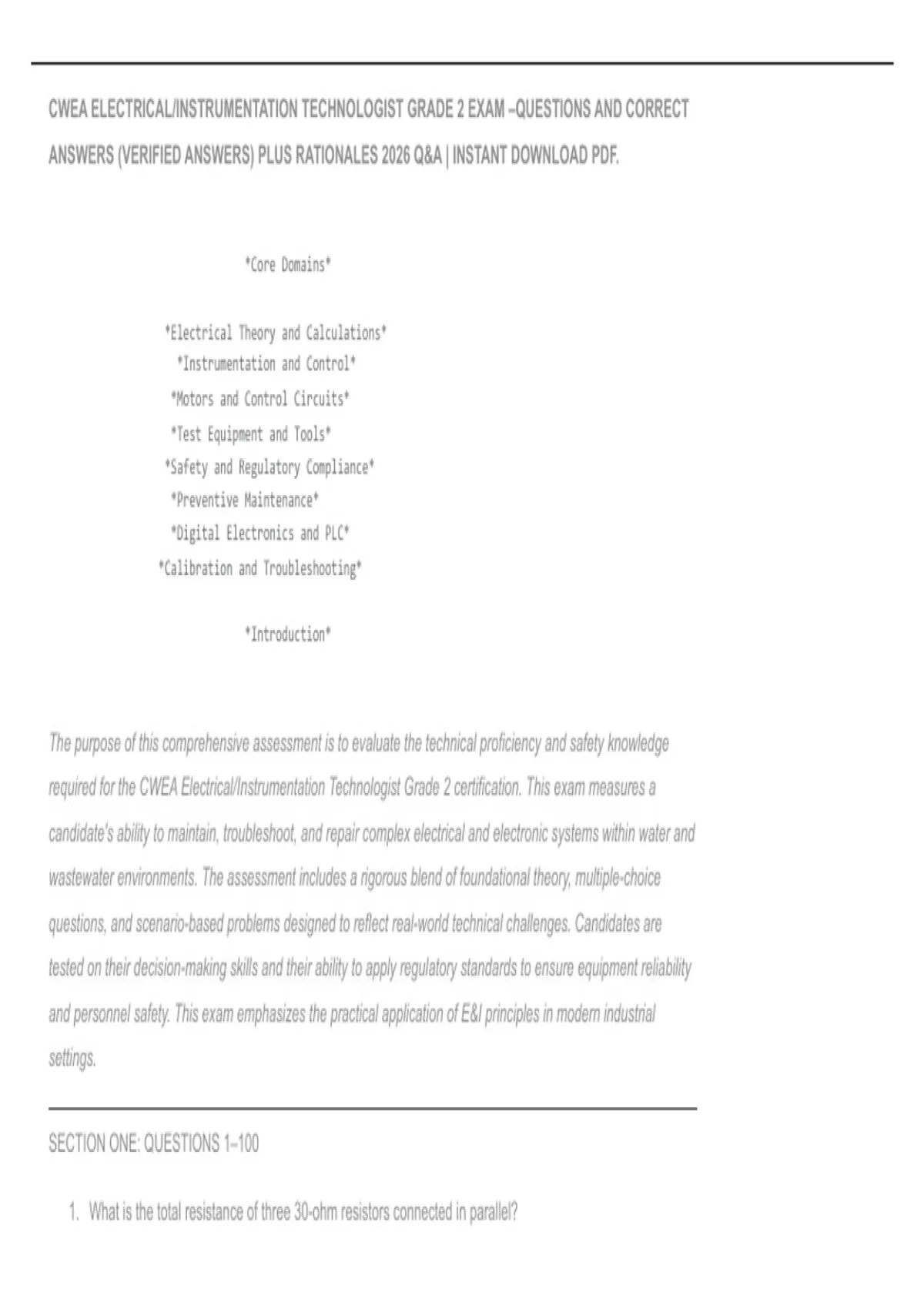

CWEA ELECTRICAL/INSTRUMENTATION TECHNOLOGIST GRADE 2 EXAM –QUESTIONS AND CORRECT
ANSWERS (VERIFIED ANSWERS) PLUS RATIONALES 2026 Q&A | INSTANT DOWNLOAD PDF.
*Core Domains*
*Electrical Theory and Calculations*
*Instrumentation and Control*
*Motors and Control Circuits*
*Test Equipment and Tools*
*Safety and Regulatory Compliance*
*Preventive Maintenance*
*Digital Electronics and PLC*
*Calibration and Troubleshooting*
*Introduction*
The purpose of this comprehensive assessment is to evaluate the technical proficiency and safety knowledge
required for the CWEA Electrical/Instrumentation Technologist Grade 2 certification. This exam measures a
candidate's ability to maintain, troubleshoot, and repair complex electrical and electronic systems within water and
wastewater environments. The assessment includes a rigorous blend of foundational theory, multiple-choice
questions, and scenario-based problems designed to reflect real-world technical challenges. Candidates are
tested on their decision-making skills and their ability to apply regulatory standards to ensure equipment reliability
and personnel safety. This exam emphasizes the practical application of E&I principles in modern industrial
settings.
SECTION ONE: QUESTIONS 1–100
1. What is the total resistance of three 30-ohm resistors connected in parallel?
,A. 10 ohms
B. 30 ohms
C. 60 ohms
D. 90 ohms
🟢 A. 10 ohms
🔴 RATIONALE: For parallel resistors of equal value, the total resistance is the value of one resistor divided by
the number of resistors (30/3 = 10).
2. Which instrument is used to measure the insulation resistance of a motor winding?
A. Ammeter
B. Megohmmeter
C. Ohmmeter
D. Voltmeter
🟢 B. Megohmmeter
🔴 RATIONALE: A megohmmeter (or Megger) applies a high voltage to measure high-resistance insulation
integrity, which a standard ohmmeter cannot do.
3. According to the NEC, what is the maximum fill percentage for a single conductor in a conduit?
A. 31%
B. 40%
C. 53%
D. 60%
,🟢 C. 53%
🔴 RATIONALE: NEC Chapter 9, Table 1 specifies that for one conductor, the maximum fill is 53%.
4. In a 4-20 mA current loop, what is the expected current for a process variable at 50% of the scale?
A. 8 mA
B. 10 mA
C. 12 mA
D. 16 mA
🟢 C. 12 mA
🔴 RATIONALE: The span is 16 mA (20 - 4). 50% of 16 is 8. Adding the 4 mA offset results in 12 mA.
5. Which type of fuse should be used for a motor circuit to allow for high starting current?
A. Fast-acting fuse
B. Time-delay fuse
C. Non-renewable fuse
D. Limitron fuse
🟢 B. Time-delay fuse
🔴 RATIONALE: Time-delay fuses (dual-element) allow momentary overloads during motor startup without
blowing, while still providing overcurrent protection.
6. What does a "LO-LO" alarm typically indicate on a level transmitter?
, A. Low battery
B. Low signal loss
C. Low-low process level reached
D. Loop failure
🟢 C. Low-low process level reached
🔴 RATIONALE: LO-LO represents a critical low setpoint, often used to trigger an emergency shutdown or
prevent pump cavitation.
7. A circuit has a voltage of 120V and a resistance of 12 ohms. What is the current?
A. 1 amp
B. 10 amps
C. 12 amps
D. 120 amps
🟢 B. 10 amps
🔴 RATIONALE: According to Ohm’s Law, I = V /R. Therefore, 120/12 = 10 amps.
8. Which of the following describes a "Class 1, Division 1" location?
A. Hazards are present under normal operating conditions
B. Hazards are present only under abnormal conditions
C. Only non-combustible dust is present
D. No hazardous gases are present
🟢 A. Hazards are present under normal operating conditions
