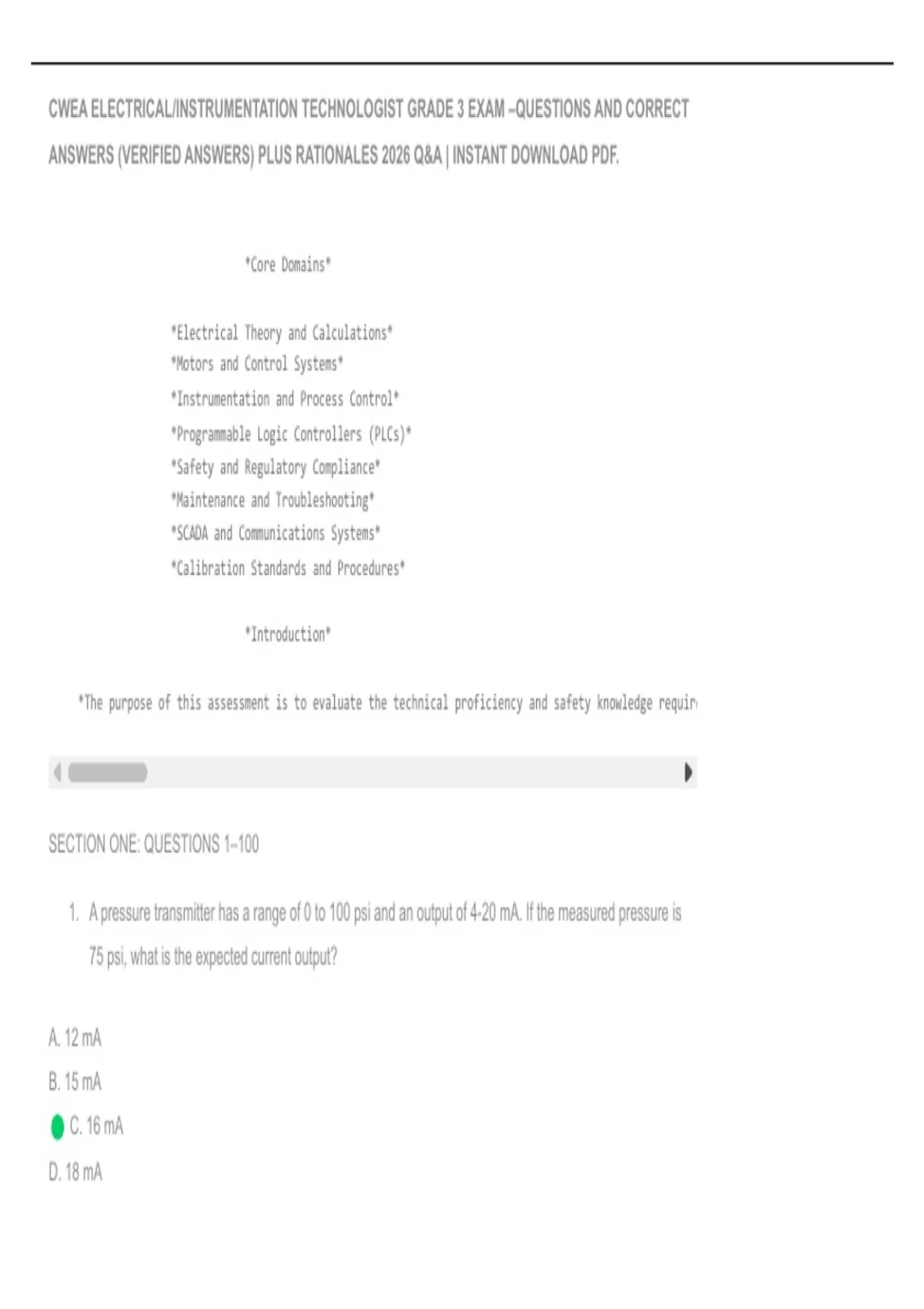

CWEA ELECTRICAL/INSTRUMENTATION TECHNOLOGIST GRADE 3 EXAM –QUESTIONS AND CORRECT
ANSWERS (VERIFIED ANSWERS) PLUS RATIONALES 2026 Q&A | INSTANT DOWNLOAD PDF.
*Core Domains*
*Electrical Theory and Calculations*
*Motors and Control Systems*
*Instrumentation and Process Control*
*Programmable Logic Controllers (PLCs)*
*Safety and Regulatory Compliance*
*Maintenance and Troubleshooting*
*SCADA and Communications Systems*
*Calibration Standards and Procedures*
*Introduction*
*The purpose of this assessment is to evaluate the technical proficiency and safety knowledge require
SECTION ONE: QUESTIONS 1–100
1. A pressure transmitter has a range of 0 to 100 psi and an output of 4-20 mA. If the measured pressure is
75 psi, what is the expected current output?
A. 12 mA
B. 15 mA
🟢 C. 16 mA
D. 18 mA
,🔴 RATIONALE: The span is 16 mA (20-4). At 75% of the range, the output is (0.75 x 16) + 4 = 16 mA.
2. Which of the following is the most likely cause of a "hunting" condition in a PID control loop?
🟢 A. Proportional gain is set too high
B. Integral time is set too long
C. Derivative time is set too short
D. Loop is in manual mode
🔴 RATIONALE: Excessive proportional gain causes the controller to over-correct, leading to oscillations or
"hunting" around the setpoint.
3. According to the NEC, what is the maximum fill percentage for a single conductor in a conduit?
A. 31%
🟢 B. 53%
C. 40%
D. 60%
🔴 RATIONALE: NEC Chapter 9, Table 1 specifies that for one conductor, the maximum fill is 53%.
4. In a 3-phase Delta system, if the line current is 34.6 Amps, what is the phase current?
A. 11.5 Amps
🟢 B. 20.0 Amps
C. 34.6 Amps
D. 60.0 Amps
🔴 RATIONALE: In a Delta connection, Phase Current = Line Current / 1.732. (34..732 = 20.0).
, 5. Which safety instrument is specifically designed to protect workers from electrical shock by detecting small
current imbalances?
A. Circuit Breaker
B. Overload Relay
🟢 C. GFCI
D. Arc Fault Interrupter
🔴 RATIONALE: A Ground Fault Circuit Interrupter (GFCI) monitors the balance between energized and neutral
conductors to prevent shock.
6. A PLC input module is not receiving a signal from a limit switch. The first step in troubleshooting should be:
🟢 A. Measure the voltage at the PLC input terminal
B. Replace the PLC CPU
C. Rewrite the ladder logic
D. Check the SCADA historian
🔴 RATIONALE: Troubleshooting should start at the point of failure to confirm if the physical signal is reaching the
controller.
7. What is the primary purpose of a "seal-in" circuit in a motor starter?
A. To protect against overloads
B. To provide short circuit protection
🟢 C. To keep the motor running after the start button is released
D. To prevent the motor from reversing
, 🔴 RATIONALE: A seal-in (or holding) circuit uses an auxiliary contact to maintain the coil's energized state after
the momentary start signal.
8. Which type of flow meter is most suitable for measuring fluids with varying conductivity in a large diameter
pipe?
🟢 A. Magnetic Flow Meter
B. Orifice Plate
C. Turbine Meter
D. Rotameter
🔴 RATIONALE: Magnetic flow meters are ideal for conductive fluids like wastewater and offer no flow restriction
or pressure drop.
9. An instrument technician finds that a pH probe is drifting significantly within 24 hours of calibration. What is
the most likely issue?
A. Wrong buffer solution used
🟢 B. Reference junction is fouled or depleted
C. Input impedance of the transmitter is too low
D. Temperature compensation is disabled
🔴 RATIONALE: A fouled reference junction is the most common cause of electrode drift and instability in pH
measurements.
10. In hazardous locations classified as Class I, Division 1, which wiring method is generally required?
🟢 A. Rigid Metal Conduit (RMC) with explosion-proof seals
B. Electrical Metallic Tubing (EMT)
