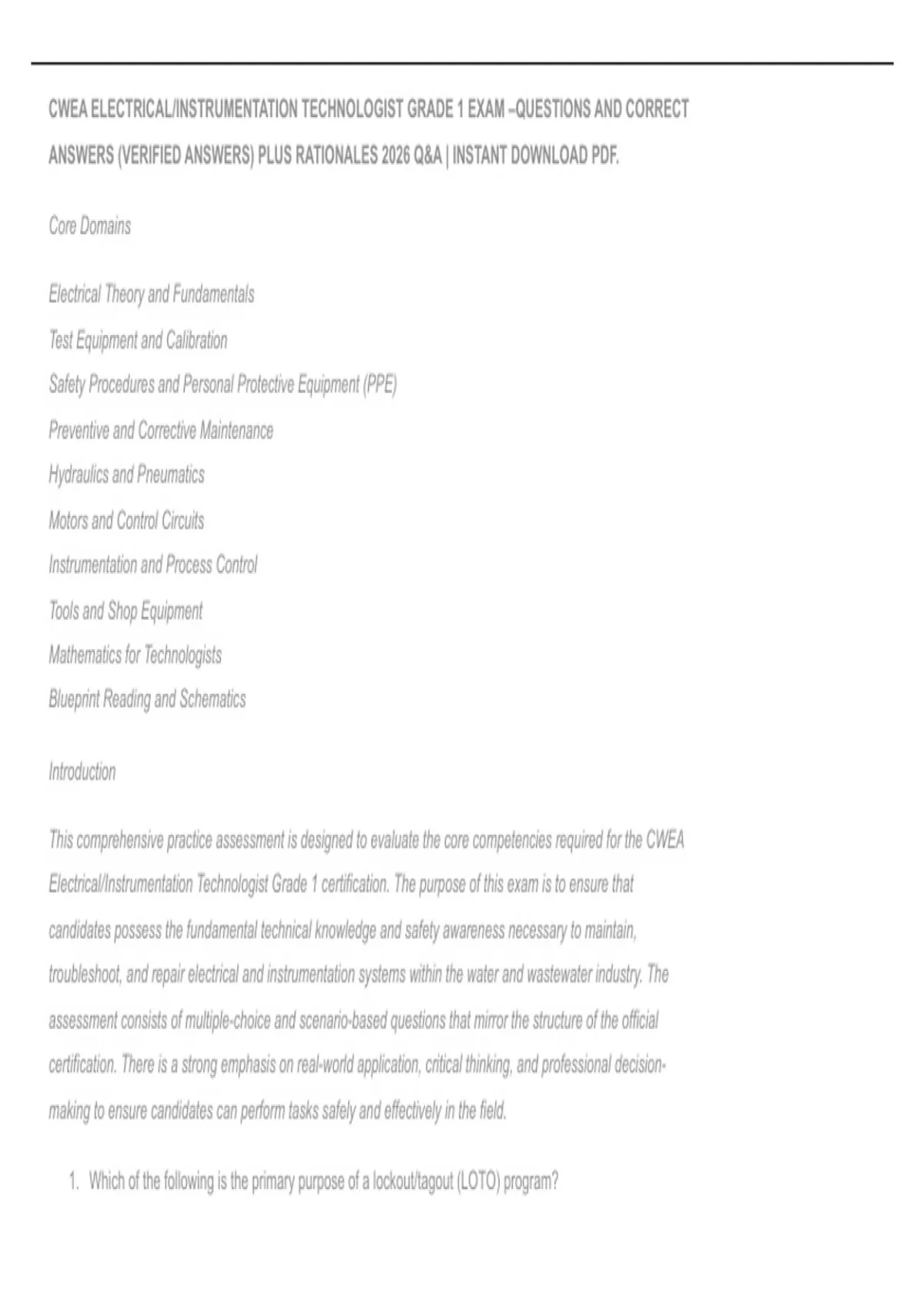

CWEA ELECTRICAL/INSTRUMENTATION TECHNOLOGIST GRADE 1 EXAM –QUESTIONS AND CORRECT
ANSWERS (VERIFIED ANSWERS) PLUS RATIONALES 2026 Q&A | INSTANT DOWNLOAD PDF.
Core Domains
Electrical Theory and Fundamentals
Test Equipment and Calibration
Safety Procedures and Personal Protective Equipment (PPE)
Preventive and Corrective Maintenance
Hydraulics and Pneumatics
Motors and Control Circuits
Instrumentation and Process Control
Tools and Shop Equipment
Mathematics for Technologists
Blueprint Reading and Schematics
Introduction
This comprehensive practice assessment is designed to evaluate the core competencies required for the CWEA
Electrical/Instrumentation Technologist Grade 1 certification. The purpose of this exam is to ensure that
candidates possess the fundamental technical knowledge and safety awareness necessary to maintain,
troubleshoot, and repair electrical and instrumentation systems within the water and wastewater industry. The
assessment consists of multiple-choice and scenario-based questions that mirror the structure of the official
certification. There is a strong emphasis on real-world application, critical thinking, and professional decision-
making to ensure candidates can perform tasks safely and effectively in the field.
1. Which of the following is the primary purpose of a lockout/tagout (LOTO) program?
,A. To speed up the maintenance process
B. To prevent the accidental energization of equipment
C. To identify which technician is working on a machine
D. To comply with local building codes
🟢 B. To prevent the accidental energization of equipment
🔴 RATIONALE: LOTO procedures are strictly safety-oriented, designed to ensure that energy sources are
isolated and cannot be re-engaged while maintenance is being performed, protecting personnel from injury.
2. A multimeter set to the Ohms setting should only be used on a circuit that is:
A. Energized with DC voltage
B. Energized with AC voltage
C. De-energized
D. Connected to a load
🟢 C. De-energized
🔴 RATIONALE: Measuring resistance in an energized circuit can damage the meter and provide inaccurate
readings. The circuit must be powered down and discharged.
3. What is the total resistance of two 100-ohm resistors connected in parallel?
A. 200 ohms
B. 100 ohms
C. 50 ohms
D. 25 ohms
,🟢 C. 50 ohms
🔴 RATIONALE: For two equal resistors in parallel, the total resistance is half of a single resistor’s value (R/n).
4. Which instrument is used to measure the insulation resistance of motor windings?
A. Voltmeter
B. Megohmmeter
C. Ammeter
D. Frequency meter
🟢 B. Megohmmeter
🔴 RATIONALE: A megohmmeter (often called a Megger) applies a high voltage to measure high resistance
values, which is necessary to check for insulation breakdown.
5. In a 4-20 mA current loop, what mA value typically represents a 50% signal?
A. 8 mA
B. 10 mA
C. 12 mA
D. 14 mA
🟢 C. 12 mA
🔴 RATIONALE: The span is 16 mA (20 minus 4). Half of that is 8 mA. Adding 8 mA to the 4 mA base gives 12
mA.
6. Which device is used to change the speed of an AC induction motor by varying the frequency of the power
supplied to it?
, A. Soft starter
B. Variable Frequency Drive (VFD)
C. Transformer
D. Capacitor bank
🟢 B. Variable Frequency Drive (VFD)
🔴 RATIONALE: A VFD controls motor speed and torque by varying the input frequency and voltage to the motor.
7. What does the acronym "GFCI" stand for?
A. Grounded Flow Circuit Interrupter
B. Ground Fault Circuit Interrupter
C. General Fuse Circuit Indicator
D. Grounded Fuse Current Interrupter
🟢 B. Ground Fault Circuit Interrupter
🔴 RATIONALE: A GFCI is a safety device that shuts off electric power when it detects an imbalance between the
outgoing and incoming current.
8. A transformer has a primary voltage of 480V and a secondary voltage of 120V. What is the turns ratio?
A. 2:1
B. 3:1
C. 4:1
D. 5:1
🟢 C. 4:1
