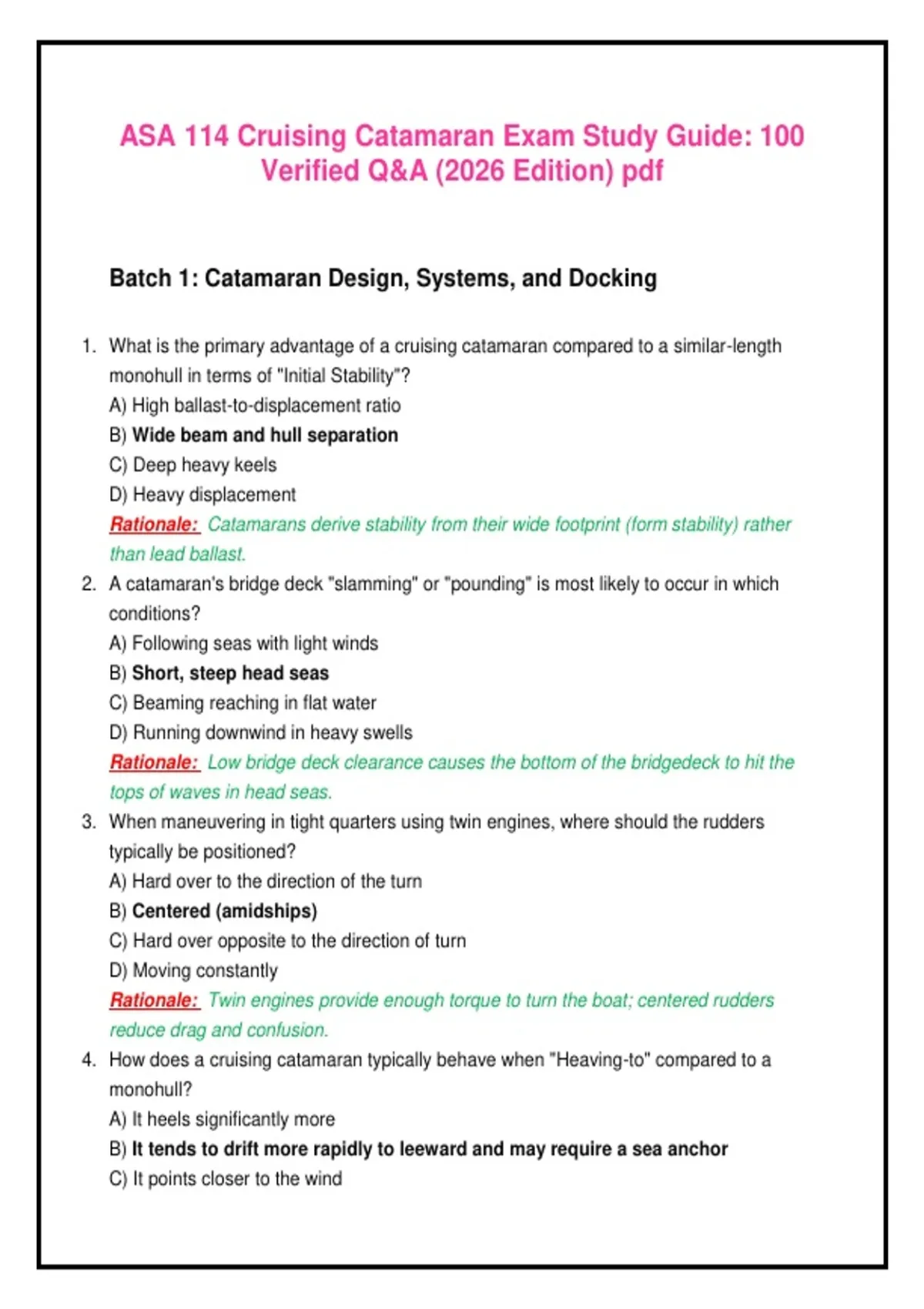

ASA 114 Cruising Catamaran Exam Study Guide: 100
Verified Q&A (2026 Edition) pdf
Batch 1: Catamaran Design, Systems, and Docking
1. What is the primary advantage of a cruising catamaran compared to a similar-length
monohull in terms of "Initial Stability"?
A) High ballast-to-displacement ratio
B) Wide beam and hull separation
C) Deep heavy keels
D) Heavy displacement
Rationale: Catamarans derive stability from their wide footprint (form stability) rather
than lead ballast.
2. A catamaran's bridge deck "slamming" or "pounding" is most likely to occur in which
conditions?
A) Following seas with light winds
B) Short, steep head seas
C) Beaming reaching in flat water
D) Running downwind in heavy swells
Rationale: Low bridge deck clearance causes the bottom of the bridgedeck to hit the
tops of waves in head seas.
3. When maneuvering in tight quarters using twin engines, where should the rudders
typically be positioned?
A) Hard over to the direction of the turn
B) Centered (amidships)
C) Hard over opposite to the direction of turn
D) Moving constantly
Rationale: Twin engines provide enough torque to turn the boat; centered rudders
reduce drag and confusion.
4. How does a cruising catamaran typically behave when "Heaving-to" compared to a
monohull?
A) It heels significantly more
B) It tends to drift more rapidly to leeward and may require a sea anchor
C) It points closer to the wind
, D) It is impossible to heave-to in a catamaran
Rationale: The high windage and lack of a deep keel cause catamarans to skate
across the water surface.
5. Which structural component connects the two hulls of a catamaran?
A) The transom
B) The bowsprit
C) The bridgedeck
D) The daggerboard
Rationale: The bridgedeck is the main living and structural platform joining the hulls.
6. What is the effect of "Windage" on a catamaran during docking?
A) It makes the boat sink lower in the water
B) It causes the boat to blow sideways much faster than a monohull
C) It helps the boat stay aligned with the current
D) It has no effect on multi-hulls
Rationale: High cabin tops and dual hulls create a large surface area for wind to push.
7. To turn a catamaran 360 degrees in its own length (spinning), what is the engine
configuration?
A) Both engines in Neutral
B) Both engines in Forward
C) One engine in Forward, one in Reverse
D) Both engines in Reverse
Rationale: This creates a "couple" or torque that rotates the boat around its center
point.
8. When anchored, catamarans are prone to "tacking" back and forth. What is the best
solution?
A) Using a smaller anchor
B) Using a bridle attached to both bows
C) Dropping more chain
D) Retracting the rudders
Rationale: A bridle stabilizes the boat and centers the load, preventing the "sailing"
motion.
9. Cruising catamarans often use "Mini-Keels" instead of daggerboards. What is the trade-
off?
A) Better upwind performance
B) Better protection for the hulls/propellers but more leeway
C) Higher top speeds
, D) Easier to capsize
Rationale: Mini-keels are sacrificial and allow for beaching, but they aren't as efficient
as retractable daggerboards.
10. What is the "Capsizing Moment" for a catamaran?
A) When it reaches 30 degrees of heel
B) When the wind force exceeds the stability provided by the boat's weight and
beam
C) When it hits a wave from behind
D) When the water is deeper than 50 feet
Rationale: Unlike monohulls, which self-right, catamarans have a "point of no return"
once they heel past a certain angle.
11. Why is it dangerous to overload a catamaran with heavy gear?
A) It makes the hulls too shiny
B) It reduces bridgedeck clearance and hurts performance/safety
C) It makes the boat turn too fast
D) It increases the fuel efficiency
Rationale: Weight is the enemy of multi-hulls; it causes the boat to sit low and pound
on waves.
12. In heavy weather, why is a "Following Sea" particularly dangerous for a catamaran?
A) The boat might fly away
B) The bows might "bury" or "pitchpole" if the boat goes too fast down a wave
C) The engines will stall
D) The rudders will lock
Rationale: Large hulls can submerge in the wave in front, causing a catastrophic
forward flip.
13. When docking with a crosswind pushing you off the pier, which engine should be used
most aggressively?
A) The engine closest to the pier
B) The engine furthest from the pier
C) Neither; use the sails
D) Both in Reverse
Rationale: The outboard engine has more leverage to swing the bow against the wind.
14. Most cruising catamarans use what type of steering linkage?
A) Tiller only
B) Cable or Hydraulic connecting both rudders
C) One rudder is controlled by the engine
Verified Q&A (2026 Edition) pdf
Batch 1: Catamaran Design, Systems, and Docking
1. What is the primary advantage of a cruising catamaran compared to a similar-length
monohull in terms of "Initial Stability"?
A) High ballast-to-displacement ratio
B) Wide beam and hull separation
C) Deep heavy keels
D) Heavy displacement
Rationale: Catamarans derive stability from their wide footprint (form stability) rather
than lead ballast.
2. A catamaran's bridge deck "slamming" or "pounding" is most likely to occur in which
conditions?
A) Following seas with light winds
B) Short, steep head seas
C) Beaming reaching in flat water
D) Running downwind in heavy swells
Rationale: Low bridge deck clearance causes the bottom of the bridgedeck to hit the
tops of waves in head seas.
3. When maneuvering in tight quarters using twin engines, where should the rudders
typically be positioned?
A) Hard over to the direction of the turn
B) Centered (amidships)
C) Hard over opposite to the direction of turn
D) Moving constantly
Rationale: Twin engines provide enough torque to turn the boat; centered rudders
reduce drag and confusion.
4. How does a cruising catamaran typically behave when "Heaving-to" compared to a
monohull?
A) It heels significantly more
B) It tends to drift more rapidly to leeward and may require a sea anchor
C) It points closer to the wind
, D) It is impossible to heave-to in a catamaran
Rationale: The high windage and lack of a deep keel cause catamarans to skate
across the water surface.
5. Which structural component connects the two hulls of a catamaran?
A) The transom
B) The bowsprit
C) The bridgedeck
D) The daggerboard
Rationale: The bridgedeck is the main living and structural platform joining the hulls.
6. What is the effect of "Windage" on a catamaran during docking?
A) It makes the boat sink lower in the water
B) It causes the boat to blow sideways much faster than a monohull
C) It helps the boat stay aligned with the current
D) It has no effect on multi-hulls
Rationale: High cabin tops and dual hulls create a large surface area for wind to push.
7. To turn a catamaran 360 degrees in its own length (spinning), what is the engine
configuration?
A) Both engines in Neutral
B) Both engines in Forward
C) One engine in Forward, one in Reverse
D) Both engines in Reverse
Rationale: This creates a "couple" or torque that rotates the boat around its center
point.
8. When anchored, catamarans are prone to "tacking" back and forth. What is the best
solution?
A) Using a smaller anchor
B) Using a bridle attached to both bows
C) Dropping more chain
D) Retracting the rudders
Rationale: A bridle stabilizes the boat and centers the load, preventing the "sailing"
motion.
9. Cruising catamarans often use "Mini-Keels" instead of daggerboards. What is the trade-
off?
A) Better upwind performance
B) Better protection for the hulls/propellers but more leeway
C) Higher top speeds
, D) Easier to capsize
Rationale: Mini-keels are sacrificial and allow for beaching, but they aren't as efficient
as retractable daggerboards.
10. What is the "Capsizing Moment" for a catamaran?
A) When it reaches 30 degrees of heel
B) When the wind force exceeds the stability provided by the boat's weight and
beam
C) When it hits a wave from behind
D) When the water is deeper than 50 feet
Rationale: Unlike monohulls, which self-right, catamarans have a "point of no return"
once they heel past a certain angle.
11. Why is it dangerous to overload a catamaran with heavy gear?
A) It makes the hulls too shiny
B) It reduces bridgedeck clearance and hurts performance/safety
C) It makes the boat turn too fast
D) It increases the fuel efficiency
Rationale: Weight is the enemy of multi-hulls; it causes the boat to sit low and pound
on waves.
12. In heavy weather, why is a "Following Sea" particularly dangerous for a catamaran?
A) The boat might fly away
B) The bows might "bury" or "pitchpole" if the boat goes too fast down a wave
C) The engines will stall
D) The rudders will lock
Rationale: Large hulls can submerge in the wave in front, causing a catastrophic
forward flip.
13. When docking with a crosswind pushing you off the pier, which engine should be used
most aggressively?
A) The engine closest to the pier
B) The engine furthest from the pier
C) Neither; use the sails
D) Both in Reverse
Rationale: The outboard engine has more leverage to swing the bow against the wind.
14. Most cruising catamarans use what type of steering linkage?
A) Tiller only
B) Cable or Hydraulic connecting both rudders
C) One rudder is controlled by the engine
