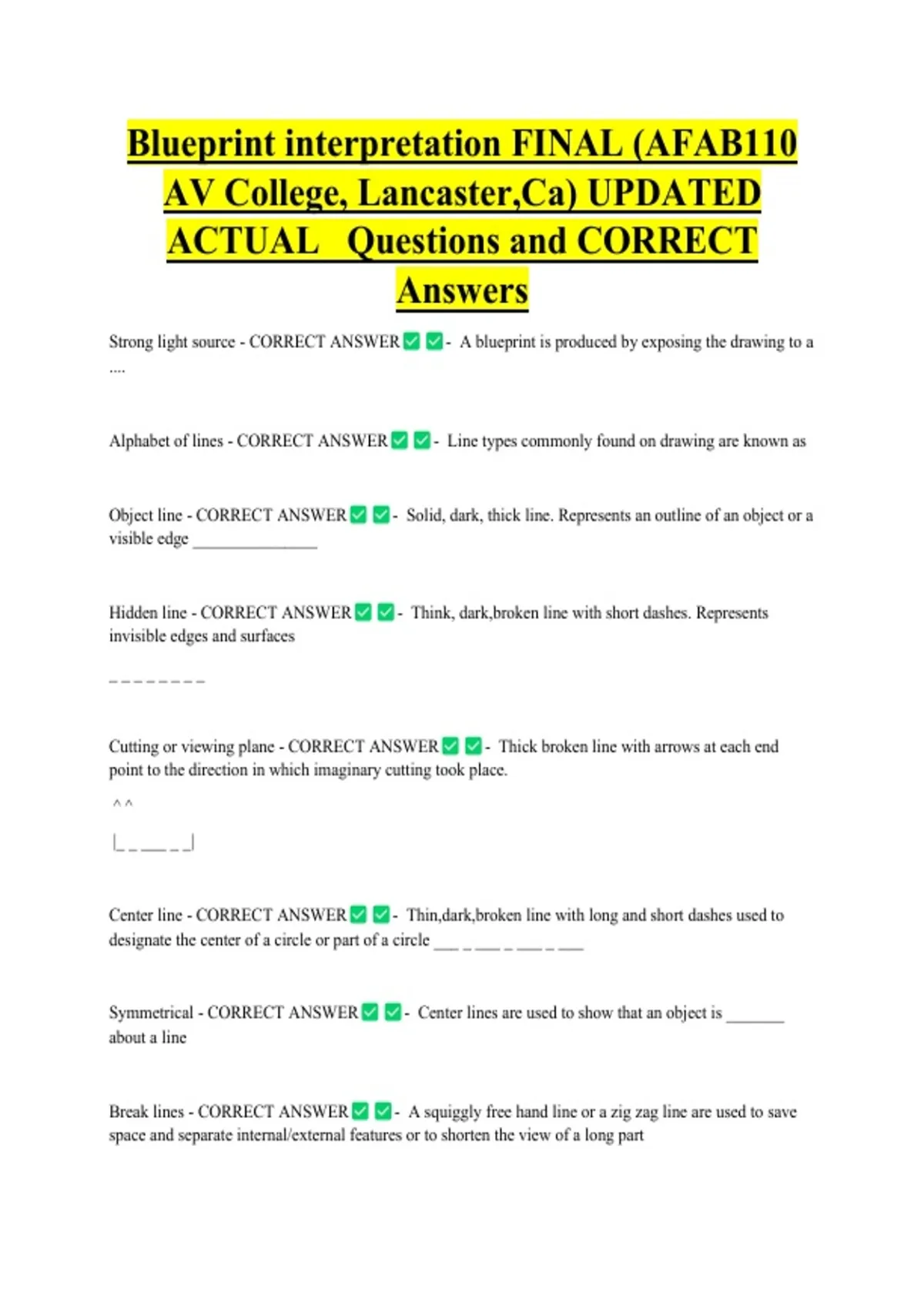

Blueprint interpretation FINAL (AFAB110
AV College, Lancaster,Ca) UPDATED
ACTUAL Questions and CORRECT
Answers
Strong light source - CORRECT ANSWER - A blueprint is produced by exposing the drawing to a
....
Alphabet of lines - CORRECT ANSWER - Line types commonly found on drawing are known as
Object line - CORRECT ANSWER - Solid, dark, thick line. Represents an outline of an object or a
visible edge _______________
Hidden line - CORRECT ANSWER - Think, dark,broken line with short dashes. Represents
invisible edges and surfaces
________
Cutting or viewing plane - CORRECT ANSWER - Thick broken line with arrows at each end
point to the direction in which imaginary cutting took place.
^^
|_ _ ___ _ _|
Center line - CORRECT ANSWER - Thin,dark,broken line with long and short dashes used to
designate the center of a circle or part of a circle ___ _ ___ _ ___ _ ___
Symmetrical - CORRECT ANSWER - Center lines are used to show that an object is _______
about a line
Break lines - CORRECT ANSWER - A squiggly free hand line or a zig zag line are used to save
space and separate internal/external features or to shorten the view of a long part
, Phantom line - CORRECT ANSWER - Thin, broken line with two short dashes followed by a long
dash indicates adjacent parts, with alternate positions or repetitive detail ____ _ _ ____ _ _ ____
Front view - CORRECT ANSWER - To draw this view the drafts person goes through an
imaginary process of raising the object to eye level and turning it so that only one side can be seen
Line of projection - CORRECT ANSWER - When the frontal plane is being shown to show the
front view this line type is used to show their proper relationship and are often horizontal
Width - CORRECT ANSWER - Refers to the horizontal distance between surfaces in profile
planes
Height - CORRECT ANSWER - Refers to the vertical distance between between surfaces on
horizontal planes
Depth - CORRECT ANSWER - Refers to the horizontal distance between two features in frontal
planes and refers to the thickness of a part.
Auxiliary view - CORRECT ANSWER - The view projected horizontally to the top right
2 - CORRECT ANSWER - How many views are used in simple symm flat object and cylindrical
parts such as sleeves,shafts,rods or studs require to show the full details of construction
Symmetrical - CORRECT ANSWER - ________means that features on both sides of a center line
shown on a drawing are the same size nd shape. ||
Regular view - CORRECT ANSWER - As long as all surfaces of an object are parallel or at right
angles to one another they may be represented in one or more type of views
Auxiliary view - CORRECT ANSWER - This type of view is used when the true shape of a
drawing must be shown to show an angular surface accurately
