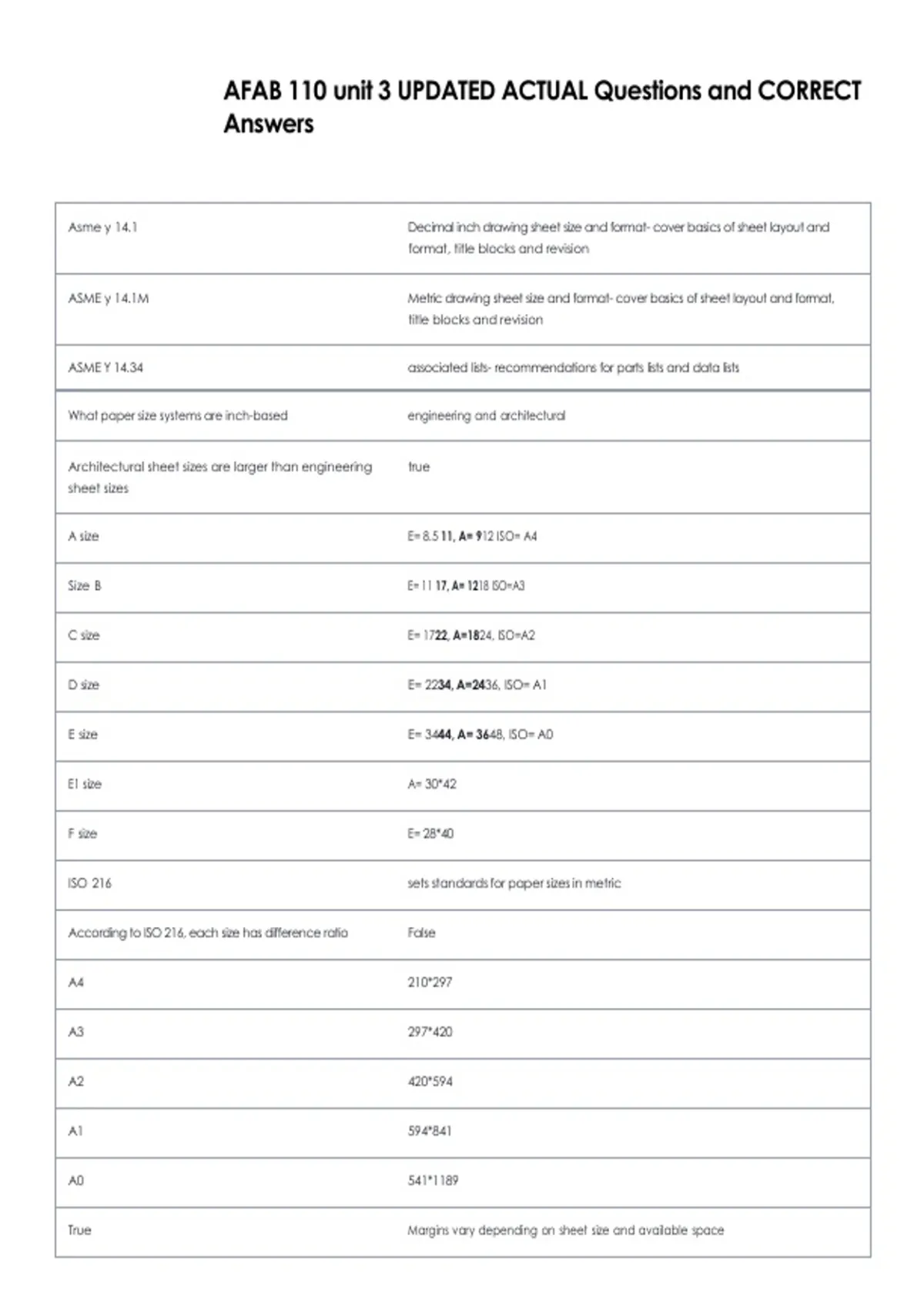

AFAB 110 unit 3 UPDATED ACTUAL Questions and CORRECT
Answers


Asme y 14.1 Decimal inch drawing sheet size and format- cover basics of sheet layout and
format, title blocks and revision


ASME y 14.1M Metric drawing sheet size and format- cover basics of sheet layout and format,
title blocks and revision


ASME Y 14.34 associated lists- recommendations for parts lists and data lists


What paper size systems are inch-based engineering and architectural


Architectural sheet sizes are larger than engineering true
sheet sizes


A size E= 8.5 11, A= 912 ISO= A4


Size B E= 11 17, A= 1218 ISO=A3


C size E= 1722, A=1824, ISO=A2


D size E= 2234, A=2436, ISO= A1


E size E= 3444, A= 3648, ISO= A0


E1 size A= 30*42


F size E= 28*40


ISO 216 sets standards for paper sizes in metric


According to ISO 216, each size has difference ratio False


A4 210*297


A3 297*420


A2 420*594


A1 594*841


A0 541*1189


True Margins vary depending on sheet size and available space
