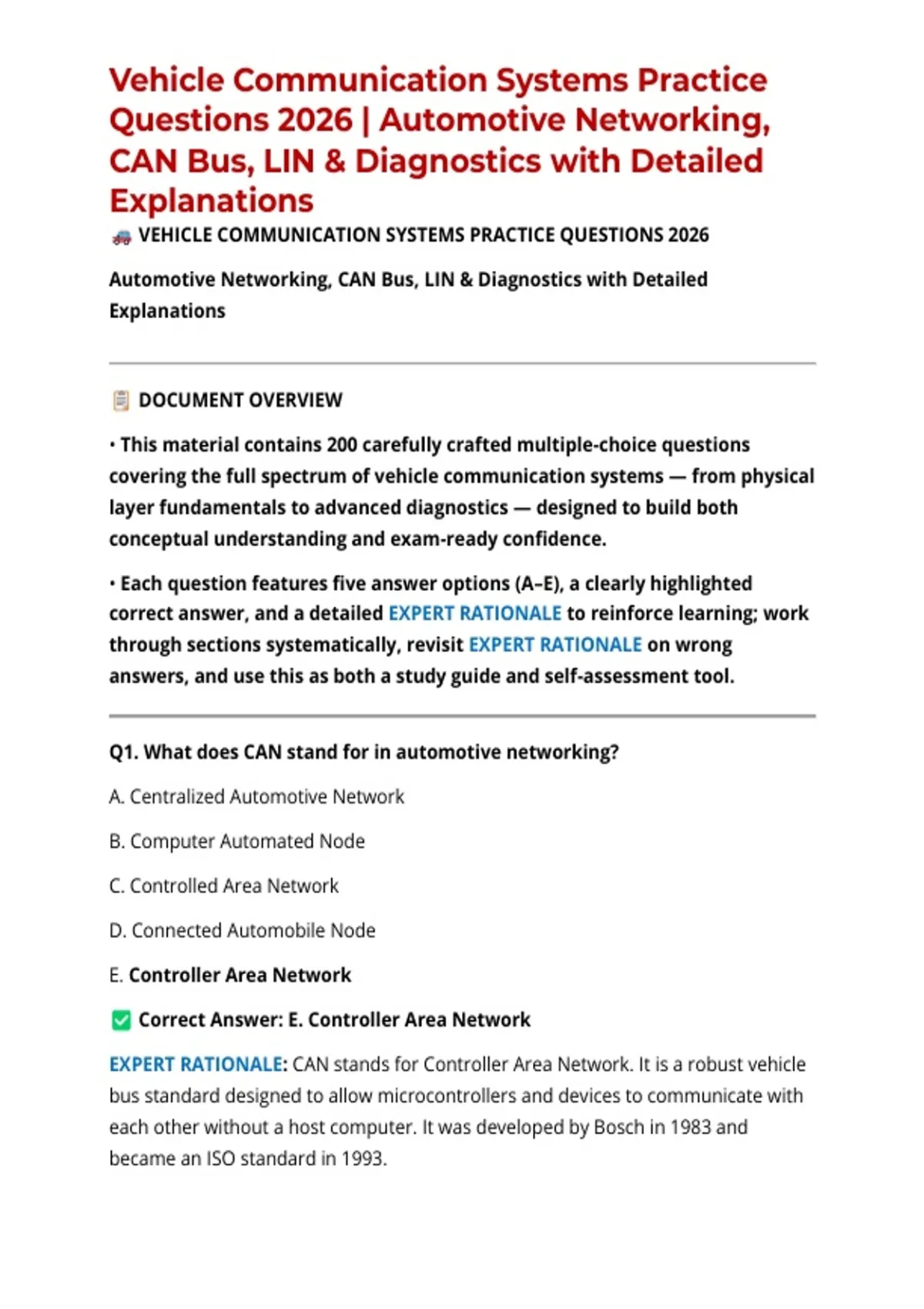

VEHICLE COMMUNICATION SYSTEMS PRACTICE QUESTIONS 2026
Automotive Networking, CAN Bus, LIN & Diagnostics with Detailed
Explanations
DOCUMENT OVERVIEW
• This material contains 200 carefully crafted multiple-choice questions
covering the full spectrum of vehicle communication systems — from physical
layer fundamentals to advanced diagnostics — designed to build both
conceptual understanding and exam-ready confidence.
• Each question features five answer options (A–E), a clearly highlighted
correct answer, and a detailed EXPERT RATIONALE to reinforce learning; work
through sections systematically, revisit EXPERT RATIONALE on wrong
answers, and use this as both a study guide and self-assessment tool.
Q1. What does CAN stand for in automotive networking?
A. Centralized Automotive Network
B. Computer Automated Node
C. Controlled Area Network
D. Connected Automobile Node
E. Controller Area Network
Correct Answer: E. Controller Area Network
EXPERT RATIONALE: CAN stands for Controller Area Network. It is a robust vehicle
bus standard designed to allow microcontrollers and devices to communicate with
each other without a host computer. It was developed by Bosch in 1983 and
became an ISO standard in 1993.
,Q2. What is the maximum data transmission speed of High-Speed CAN (ISO
11898-2)?
A. 125 kbps
B. 250 kbps
C. 500 kbps
D. 1 Mbps
E. 5 Mbps
Correct Answer: D. 1 Mbps
EXPERT RATIONALE: High-Speed CAN as defined by ISO 11898-2 supports a
maximum data rate of 1 Mbps (megabit per second). This speed is typically used in
powertrain and chassis networks where fast response times are critical. The actual
speed used in a vehicle depends on the application and wire length.
Q3. In a CAN network, what voltage level represents a dominant bit on the
CAN-H line in a High-Speed system?
A. 0V
B. 1.5V
C. 3.5V
D. 5V
E. 12V
Correct Answer: C. 3.5V
EXPERT RATIONALE: In High-Speed CAN (ISO 11898-2), a dominant bit (logic 0) is
represented when CAN-H is approximately 3.5V and CAN-L is approximately 1.5V,
giving a differential voltage of 2V. A recessive bit (logic 1) sees both lines at
approximately 2.5V with a differential of 0V.
,Q4. What value of termination resistor is typically used at each end of a High-
Speed CAN bus?
A. 60 Ω
B. 75 Ω
C. 120 Ω
D. 150 Ω
E. 220 Ω
Correct Answer: C. 120 Ω
EXPERT RATIONALE: A 120-ohm termination resistor is placed at each end of a
High-Speed CAN bus to prevent signal reflections. The two 120-ohm resistors in
parallel give a combined bus impedance of 60 ohms, which matches the
characteristic impedance of the twisted-pair cable used in automotive CAN
networks.
Q5. Which of the following best describes CAN bus arbitration?
A. A master node assigns time slots to each ECU
B. A central arbiter resolves bus conflicts
C. Nodes with the lowest identifier value win bus access without collision
D. Nodes take turns sending in a round-robin fashion
E. The node with the highest priority waits for all others to finish
Correct Answer: C. Nodes with the lowest identifier value win bus access
without collision
EXPERT RATIONALE: CAN uses non-destructive bitwise arbitration. When multiple
nodes transmit simultaneously, each monitors the bus. A dominant bit (0) always
overrides a recessive bit (1). Therefore, the node transmitting the lowest binary
, identifier (most dominant bits) wins the bus without data loss or collision, and
losing nodes automatically become receivers.
Q6. How many bytes of data can a standard CAN 2.0A data frame carry?
A. 4 bytes
B. 6 bytes
C. 8 bytes
D. 16 bytes
E. 32 bytes
Correct Answer: C. 8 bytes
EXPERT RATIONALE: A standard CAN 2.0A data frame can carry a maximum of 8
bytes (64 bits) of data in its data field. This limited payload size was intentional to
keep latency low and ensure fast message transmission on the bus.
Q7. What is the difference between CAN 2.0A and CAN 2.0B?
A. CAN 2.0B uses a different physical layer
B. CAN 2.0A supports higher speeds than 2.0B
C. CAN 2.0B uses a 32-bit identifier while 2.0A uses 16-bit
D. CAN 2.0A uses an 11-bit identifier while CAN 2.0B uses a 29-bit identifier
E. CAN 2.0A uses differential signaling while 2.0B uses single-ended
Correct Answer: D. CAN 2.0A uses an 11-bit identifier while CAN 2.0B uses a
29-bit identifier
EXPERT RATIONALE: CAN 2.0A (standard format) uses an 11-bit message identifier,
allowing up to 2,048 unique message IDs. CAN 2.0B (extended format) uses a 29-bit
identifier, allowing over 536 million unique IDs. The extended format is commonly
used in heavy-duty vehicle networks such as SAE J1939.
