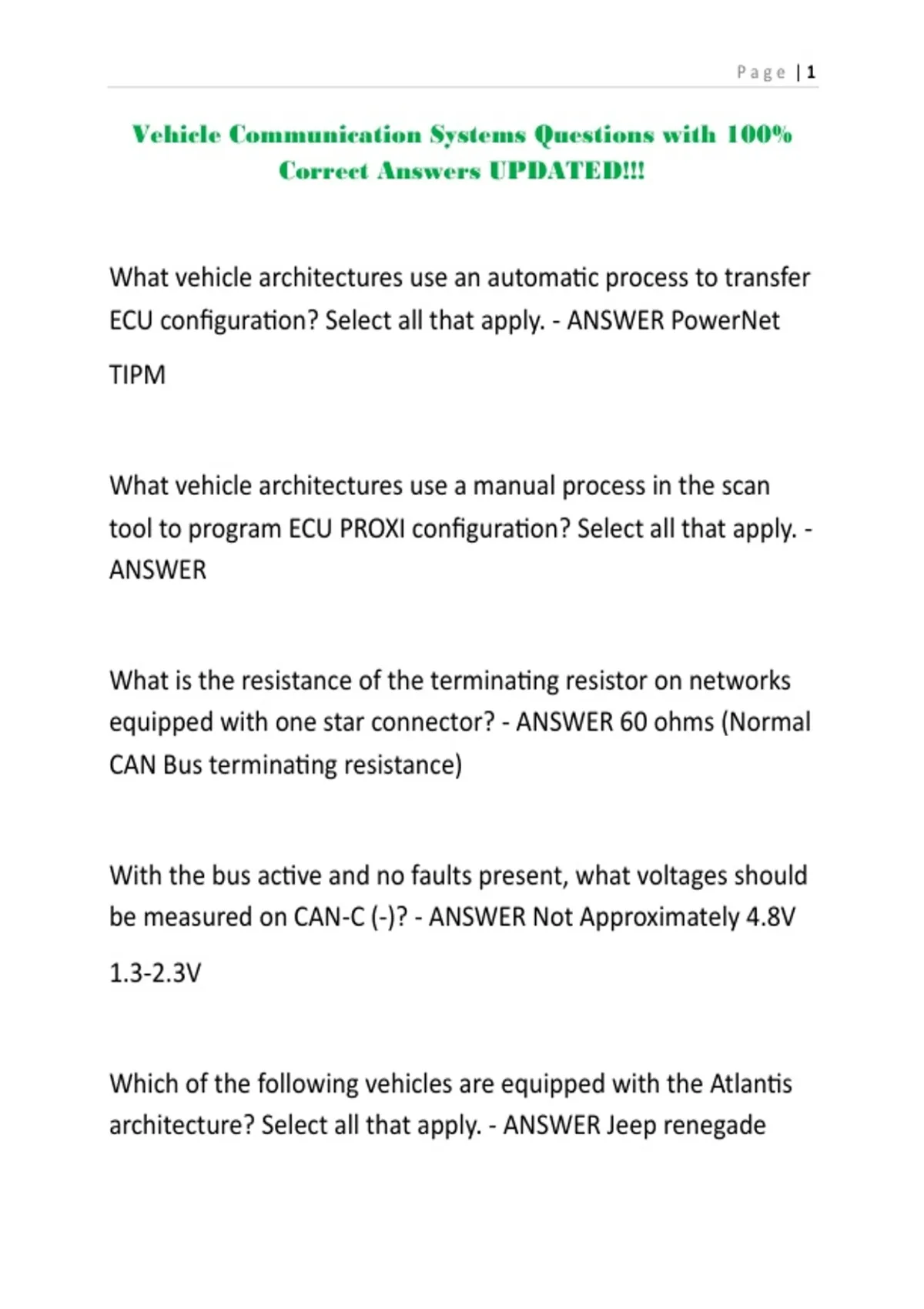

What vehicle architectures use an automatic process to transfer
ECU configuration? Select all that apply. - ANSWER PowerNet
TIPM
What vehicle architectures use a manual process in the scan
tool to program ECU PROXI configuration? Select all that apply. -
ANSWER
What is the resistance of the terminating resistor on networks
equipped with one star connector? - ANSWER 60 ohms (Normal
CAN Bus terminating resistance)
With the bus active and no faults present, what voltages should
be measured on CAN-C (-)? - ANSWER Not Approximately 4.8V
1.3-2.3V
Which of the following vehicles are equipped with the Atlantis
architecture? Select all that apply. - ANSWER Jeep renegade
, Page |2
Jeep compass
Alfa Giulia
Alfa Stelvio
What Atlantis-High network uses splice block connectors? -
ANSWER The WL Grand Cherokee
Only on the CAN-BH Bus
Atlantis-High found on? - ANSWER 2021 Grand Cherokee(or WL)
(Automotive Ethernet standard 100BASE-TX){1500 bytes up to
100 mbps}<still use a twisted pair like CAN>
Can't be spliced or repaired like CAN Wires
Ideal for screen mirroring and streaming connected services
2022 Wagoneer(or WS)
With the bus active and no faults present, what voltages should
be measured on CAN-B (+)? - ANSWER 0.39V-0.46V
Which diagnostic software and scan tool should be used to
diagnose legacy vehicle architectures? - ANSWER Hybrid of CAN
with early versions of serial-communication networks
