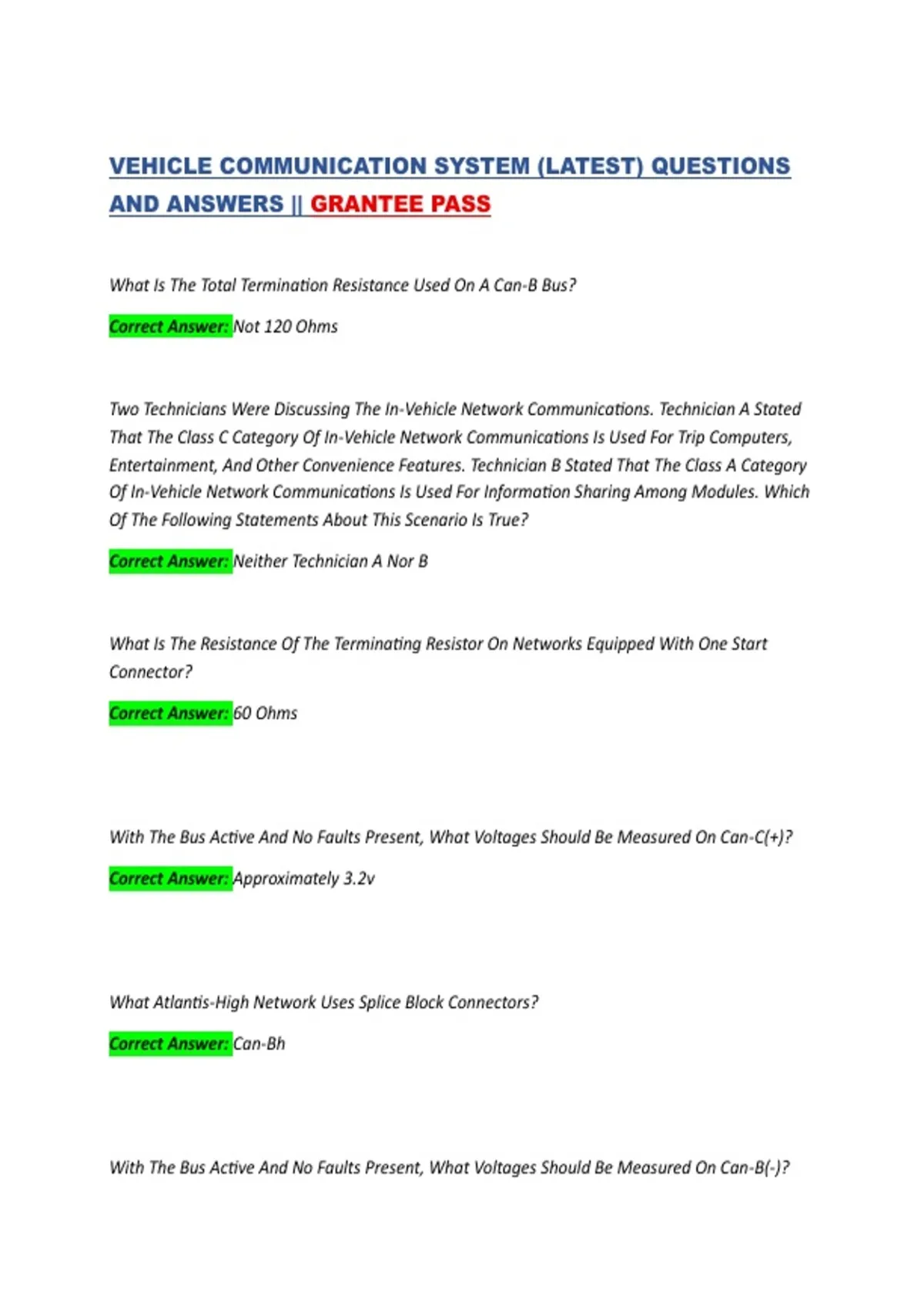

VEHICLE COMMUNICATION SYSTEM (LATEST) QUESTIONS
AND ANSWERS || GRANTEE PASS
What Is The Total Termination Resistance Used On A Can-B Bus?
Correct Answer: Not 120 Ohms
Two Technicians Were Discussing The In-Vehicle Network Communications. Technician A Stated
That The Class C Category Of In-Vehicle Network Communications Is Used For Trip Computers,
Entertainment, And Other Convenience Features. Technician B Stated That The Class A Category
Of In-Vehicle Network Communications Is Used For Information Sharing Among Modules. Which
Of The Following Statements About This Scenario Is True?
Correct Answer: Neither Technician A Nor B
What Is The Resistance Of The Terminating Resistor On Networks Equipped With One Start
Connector?
Correct Answer: 60 Ohms
With The Bus Active And No Faults Present, What Voltages Should Be Measured On Can-C(+)?
Correct Answer: Approximately 3.2v
What Atlantis-High Network Uses Splice Block Connectors?
Correct Answer: Can-Bh
With The Bus Active And No Faults Present, What Voltages Should Be Measured On Can-B(-)?
, Correct Answer: Approximately 0.4v
Which Resource Should Be Used First For Troubleshooting Drb Iii Emulator Concerns?
Correct Answer: Witech Knowledge Base
With The Bus Active And No Faults Present, What Voltages Should Be Measured On Lin?
Correct Answer: 7.0v-10.0v
What Electrical Architecture Requires The Use Of The Mopar Diagnostic Pod (Mpd) For
Diagnostics?
Correct Answer: Atlantis-High
Which Of The Following Scan Tool Functions Ate Prevented If A Security Gateway (Sgw) Becomes
Locked? Select All That Apply.
• Start An Actuator
• Run A System Test
• Flash Program A Module
With The Bus Active And No Faults Present, What Voltages Should Be Measured On Can-C(-)?
Correct Answer: Approximately 1.8v
What Atlantis Vehicles Uses Splice Block Connectors On Their Can Buses? Select All That Apply.
AND ANSWERS || GRANTEE PASS
What Is The Total Termination Resistance Used On A Can-B Bus?
Correct Answer: Not 120 Ohms
Two Technicians Were Discussing The In-Vehicle Network Communications. Technician A Stated
That The Class C Category Of In-Vehicle Network Communications Is Used For Trip Computers,
Entertainment, And Other Convenience Features. Technician B Stated That The Class A Category
Of In-Vehicle Network Communications Is Used For Information Sharing Among Modules. Which
Of The Following Statements About This Scenario Is True?
Correct Answer: Neither Technician A Nor B
What Is The Resistance Of The Terminating Resistor On Networks Equipped With One Start
Connector?
Correct Answer: 60 Ohms
With The Bus Active And No Faults Present, What Voltages Should Be Measured On Can-C(+)?
Correct Answer: Approximately 3.2v
What Atlantis-High Network Uses Splice Block Connectors?
Correct Answer: Can-Bh
With The Bus Active And No Faults Present, What Voltages Should Be Measured On Can-B(-)?
, Correct Answer: Approximately 0.4v
Which Resource Should Be Used First For Troubleshooting Drb Iii Emulator Concerns?
Correct Answer: Witech Knowledge Base
With The Bus Active And No Faults Present, What Voltages Should Be Measured On Lin?
Correct Answer: 7.0v-10.0v
What Electrical Architecture Requires The Use Of The Mopar Diagnostic Pod (Mpd) For
Diagnostics?
Correct Answer: Atlantis-High
Which Of The Following Scan Tool Functions Ate Prevented If A Security Gateway (Sgw) Becomes
Locked? Select All That Apply.
• Start An Actuator
• Run A System Test
• Flash Program A Module
With The Bus Active And No Faults Present, What Voltages Should Be Measured On Can-C(-)?
Correct Answer: Approximately 1.8v
What Atlantis Vehicles Uses Splice Block Connectors On Their Can Buses? Select All That Apply.
